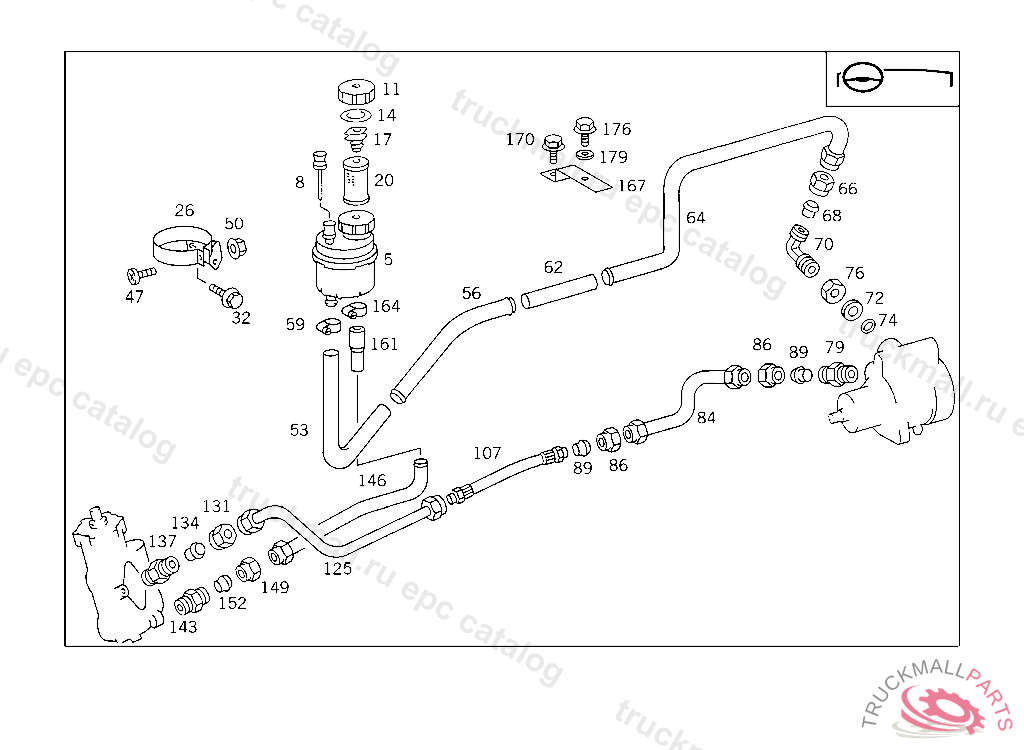

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,5 094745
32
SCREW , Replaced By: N910105010040
32
SCREW BRACKET TO DISC WHEEL M 10X16,D 315832
47
SCREW OIL TANK TO BRACKET
50
NUT AT FILTER BRACKET
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 244309
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
59
CLAMP , Replaced By: N000000000667
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
64
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
UNION NUT LINE CONNECTION, Replaced By: N000000006243
66
NUT LINE CONNECTION
68
GLAND , Replaced By: A0019901267
70
ELBOW FITTING SUCTION LINE TO OIL PUMP
72
THRUST RING SUCTION LINE TO OIL PUMP
74
SEALING CORD SUCTION LINE TO OIL PUMP
76
NUT SUCTION LINE TO OIL PUMP
79
FITTING DELIVERY LINE TO PUMP
79
SCREW-IN FITTING , Replaced By: A0029971572
84
LINE FROM PUMP TO HIGH PRESSURE HOSE
86
UNION NUT LINE CONNECTION
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 244309
131
UNION NUT LINE CONNECTION
131
UNION NUT LINE CONNECTION, Replaced By: N000000006239
131
NUT. UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
134
SEAL CONE LINE CONNECTION
134
GLAND , Replaced By: A0019901967
137
SCREW-IN FITTING DELIVERY LINE TO STEERING,K 244309
143
FITTING DELIVERY LINE TO PUMP
143
SCREW-IN FITTING , Replaced By: A0029971572
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,K 244309
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
149
UNION NUT LINE CONNECTION
152
SEAL CONE LINE CONNECTION
152
GLAND , Replaced By: A0019901967
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
167
BRACKET DELIVERY AND SUCTION LINES
170
SCREW LINE MOUNTING M 10X20
170
SCREW , Replaced By: N910105010009
170
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
176
SCREW , Replaced By: N910142008001
176
SCREW BRACKET TO BRACKET
179
WASHER , Replaced By: N009021008213
179
WASHER BRACKET TO LEFT SIDE MEMBER
179
WASHER BRACKET TO CAB REAR PANEL
999
BRACKET DELIVERY AND RETURN LINES,K 055018
999
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP
999
PROTECTIVE CAP
