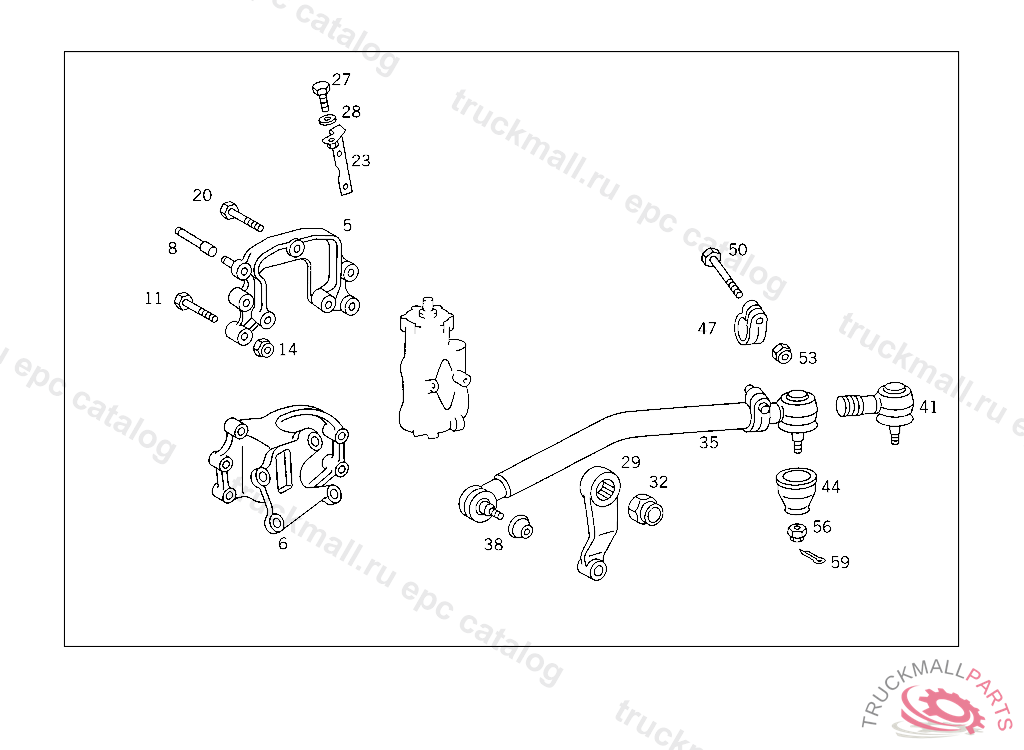

Поз.
Артикул
Описание
5
STEERING BRACKET ,K 055089
6
STEERING SUPPORT ,K 055089
8
PIN
11
SCREW , Replaced By: N308765016002
11
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
11
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
14
NUT CONSOLE TO SUPPORT
14
NUT , Replaced By: N910113016001
20
SCREW BRACKET TO REAR AXLE M 20X1.5X40
20
SCREW ENGINE REAR SUPPORT M 20X1.5X50
20
SCREW , Replaced By: N308676020015
23
BRACKET BRACKET TO STEERING BRACKET,K 055089
27
SCREW CLAMP TO BRACKET AND TO PIPE
28
WASHER EXHAUST MUFFLER TO STRAP
28
WASHER , Replaced By: N000125008443
29
PITMAN ARM ,K 055089
29
PITMAN ARM ,K 055089
32
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
35
DRAG LINKLEMFOERDER,K 055089
35
DRAG LINKLEMFOERDER,K 055089
38
BOOT FIXED PART OF JOINT
41
JOINT R.H. THREAD LEMFOERDER,5 180856
44
BOOT FIXED PART OF JOINT
47
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
50
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
50
SCREW , Replaced By: N308676012017
53
NUT , Replaced By: N910113012003
53
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
56
NUT , Replaced By: N000979020000
56
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
59
COTTER PINROCKINGER TYP 260 G140
