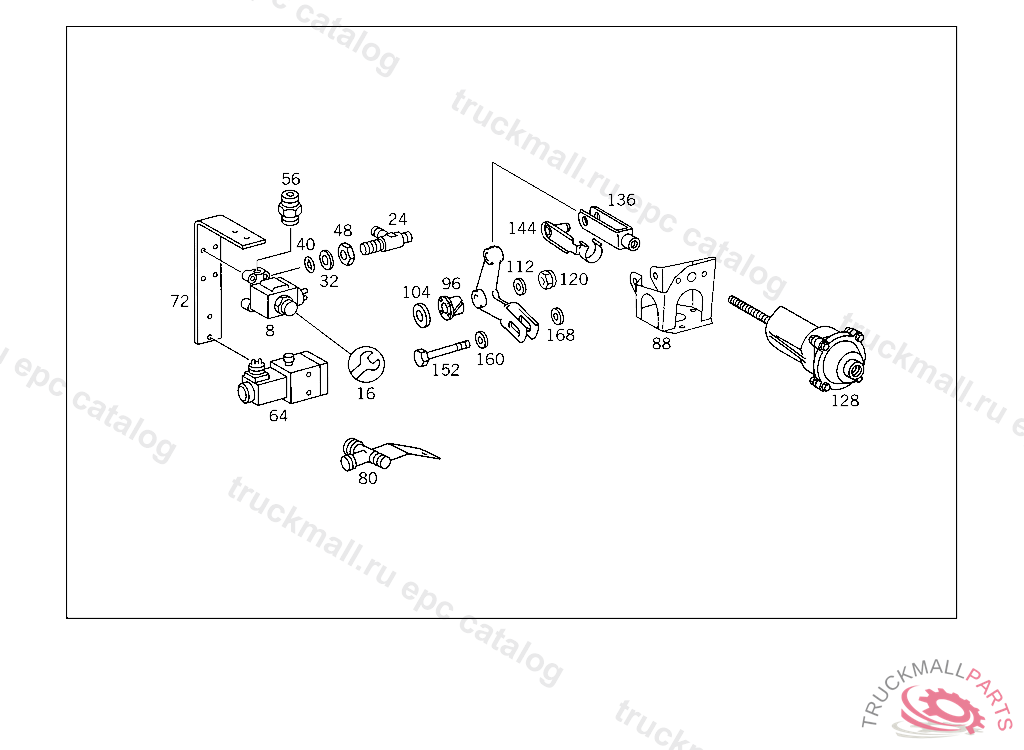

Поз.
Артикул
Описание
8
VALVE P.T.O.
16
REPAIR KITTO 001 997 34 36,002 997 58 36,
24
T-FITTING EXHAUST BRAKE 3/2-WAY VALVE
32
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
40
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
48
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
56
FITTING CONNECTION TO STOP LIGHT SWITCH
64
VALVE RETARDER CONTROL
64
VALVE (PRESSURE CONTROL VALVE) ZF, REPAIR IMPOSSIBLE
72
BRACKET VALVES
80
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION
88
CONSOLE CYLINDER
96
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
104
COVERING INTERMEDIATE BEARING
112
WASHER BRACKET TO CONSOLE
120
NUT STRAP TO BRACKET
120
NUT , Replaced By: N910113010000
128
CYLINDER
136
YOKE PULL ROD TO LEVER
144
PIN PULL ROD TO LEVER
152
PIN BEARING BRACKET TO TRANSMISSION
160
WASHER
168
WASHER BRACKET TO CONSOLE
