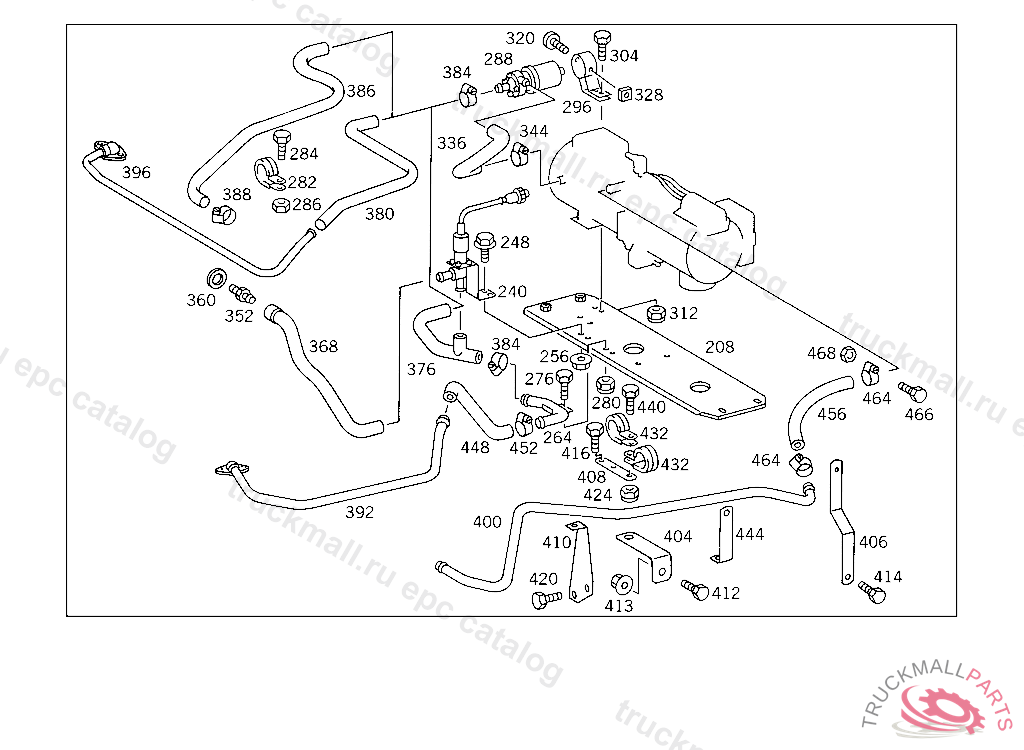

Поз.
Артикул
Описание
208
BRACKET HEATER UNIT
208
SUPPORT , Replaced By: A6735060240
240
VALVE (SOLENOID VALVE),5 385341
248
SCREW BRACKET TO BRACKET
248
SCREW , Replaced By: N910142008001
256
NUT BRACKET TO BRACKET
264
LINE FROM VALVE TO PUMP,5 385341
276
SCREW , Replaced By: N304017008021
276
SCREW PIPE CLAMP
280
NUT , Replaced By: N913004008001
282
CLAMP HOSE TO SUPPORT,5 385342
284
SCREW LICENSE PLATE TO BRACKET
284
SCREW , Replaced By: N304017006020
286
NUT , Replaced By: N913004006001
286
NUT PUMP TO BRACKET
288
MOTOR. RECIRCULATING PUMP
288
PUMP , Replaced By: A0005062999
296
BRACKET CIRCULATION PUMP
304
SCREW , Replaced By: N304017008021
304
SCREW PIPE CLAMP
312
NUT , Replaced By: N913004008001
320
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
320
SCREW , Replaced By: N007985005532
328
NUT PUMP TO BRACKET
336
HOSE FROM HEATER UNIT TO PUMP
344
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
344
CLAMP , Replaced By: N000000000667
352
CONNECTOR COOLING WATER DRAIN
352
FITTING COOLING WATER DRAIN
360
SEAL RING SOLENOID VALVE A 18X24
368
HOSE FROM VALVE TO FEED LINE,K 004002
368
HOSE FROM FITTING TO VALVE
376
HOSE FROM VALVE TO PUMP,5 385341
380
HOSE FROM VALVE TO PUMP,5 385342
384
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
384
CLAMP , Replaced By: N000000000667
386
HOSE FROM SCREW FITTING TO RECIRCULATING PUMP,5 385342
388
CLAMP , Replaced By: N000000000667
388
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
392
LINE FROM ENGINE TO HEATER,5 385341
392
LINE FROM ENGINE TO HEATER,5 385341
392
LINE FROM ENGINE TO HEATER,5 385341
396
LINE FROM ENGINE TO HEATER,5 385342K 145395
396
LINE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 932305, Replaced By: A6765000272
400
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6775060560
400
PIPE FROM ENGINE TO HEATER,5 385341
400
PIPE FROM ENGINE TO HEATER,5 3853425 932305
400
PIPE FROM ENGINE TO HEATER,5 385341
400
PIPE FROM ENGINE TO HEATER
400
PIPE FROM ENGINE TO HEATER,5 3853425 932305
400
PIPE FROM ENGINE TO HEATER,5 932306
400
PIPE FROM ENGINE TO HEATER,5 385341
400
PIPE FROM ENGINE TO HEATER,5 385341
400
PIPE FROM ENGINE TO HEATER,5 3853425 932305
400
PIPE FROM ENGINE TO HEATER,5 932306
404
BRACKET HEATING PIPE TO ENGINE
404
BRACKET , Replaced By: A3464296040
404
BRACKET , Replaced By: A3812951940
406
BRACKET , Replaced By: A3464310440
406
BRACKET , Replaced By: A6454910241
406
BRACKET COMPRESSED AIR LINES,K 168169
406
BRACKET HEATING PIPE TO ENGINE,5 3853425 932305
408
BRACKET HEATING PIPE TO ENGINE,K 145395
410
BRACKET HEATING PIPE TO ENGINE,5 3853425 932305
412
SCREW LICENSE PLATE TO BRACKET
412
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
413
NUT HEATING PIPE TO BRACKET
414
SCREW , Replaced By: N304017008021
414
SCREW PIPE CLAMP
416
SCREW , Replaced By: N304017008016
416
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
420
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
424
NUT PUMP TO BRACKET
424
NUT , Replaced By: N913004006001
432
CLAMP BRAKE HOSE BRACKET
440
SCREW , Replaced By: N304017006020
440
SCREW LICENSE PLATE TO BRACKET
444
BRACKET HEATING AND BREATHING,5 385341
448
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
448
HOSE FROM HEATING LINE TO HEATING LINE,5 385341
452
CLAMP , Replaced By: N000000000667
452
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
456
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
456
HOSE HEATING PIPE TO ENGINE,5 385341
464
CLAMP BRAKE HOSE BRACKET
464
CLAMP , Replaced By: N000000000667
464
CLAMP , Replaced By: N000000001045
464
CLAMP , Replaced By: N916016010211
464
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
464
CLAMP CABLE HARNESS MOUNTING
466
SCREW LICENSE PLATE TO BRACKET
466
SCREW , Replaced By: N304017006020
468
NUT , Replaced By: N913004006001
468
NUT PUMP TO BRACKET
999
BRACKET HEATER UNIT
999
PIPE FROM ENGINE TO HEATER, NOT USED
999
HOSE FROM SCREW FITTING TO RECIRCULATING PUMP
999
HOSE FROM HEATING WATER PIPE TO HEATER
999
GROMMET LINE PASSAGE AT SIDE MEMBER
999
GROMMET , Replaced By: A4069975081
999
SEAL RINGTO 942 500 15 98
999
SEAL RING
999
SWITCH
999
BLOWER
999
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
999
SCREW BATTERY MOUNTING
999
RUBBER BUFFER SUPPORT TO BRACKET
999
PUMP
999
SWITCH
999
SWITCH , Replaced By: A0018354506
999
CONTROL UNITGGVS
999
CONTROL UNITSTANDARD
999
HEATER PLUG
999
TEMPERATURE SENSOR
999
BURNER
999
LAMP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0005430142
999
CLOCK60 MIN
999
AUXILIARY PUMP (METERING PUMP)
