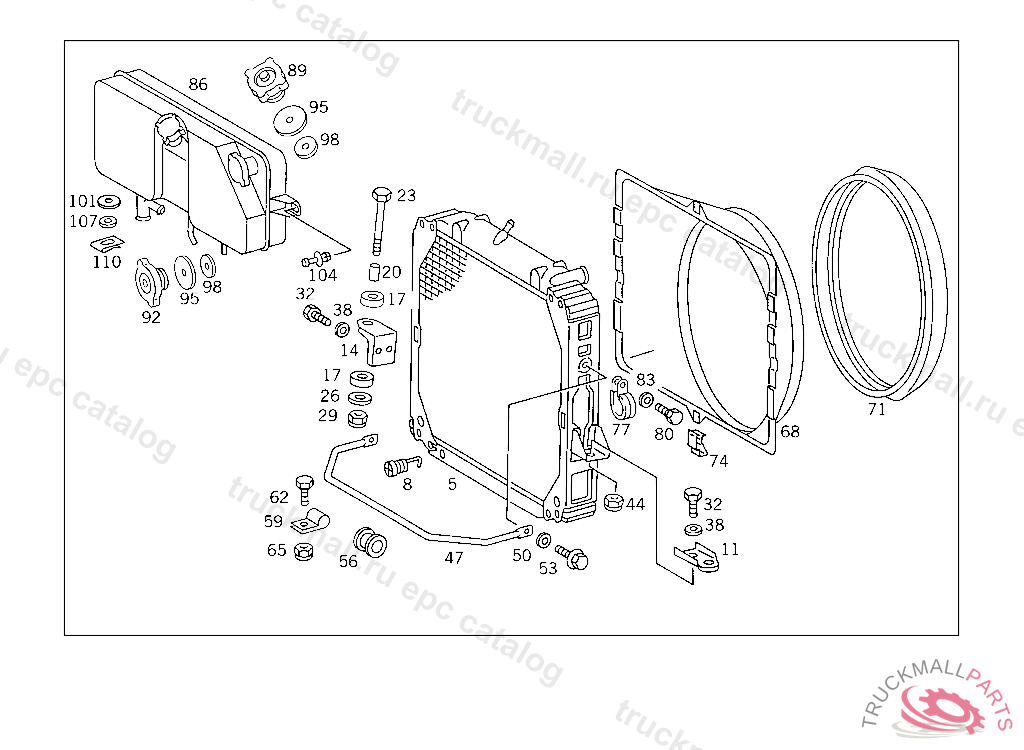

Поз.
Артикул
Описание
5
RADIATOR ,5 527394
5
RADIATOR , Replaced By: A6765001603
8
SCREW WATER DRAIN
11
SUPPORT RADIATOR,LEFT
14
SUPPORT RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW BRACKET TO BELL HOUSING
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
SCREW , Replaced By: N308676012038
32
SCREW COMPRESSED AIR LINE MOUNTING M 10X14
32
SCREW BRACKET TO TRANSMISSION
38
WASHER COVER PLATE TO FRAME
38
WASHER RADIATOR TO RUBBER MOUNTING
38
WASHER , Replaced By: N000125010532
44
NUT SUPPORT TO SIDE MEMBER
47
CLAMP RADIATOR
50
WASHER BRACKET TO LEFT SIDE MEMBER
50
WASHER , Replaced By: N009021008213
53
SCREW CLAMP TO RADIADOR
56
RUBBER MOUNTING BRACKET TO CROSS MEMBER
59
CLAMP BRACKET TO CROSS MEMBER
62
SCREW , Replaced By: N304017008021
62
SCREW PIPE CLAMP
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
65
NUT , Replaced By: N913004008001
68
AIR BAFFLE
68
AIR BAFFLE , Replaced By: A6775050330
71
BOOT FAN SHROUD TO FAN RING
74
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
77
CLAMP OIL DIPSTICK TO BRACKET
77
CLAMP OIL DIPSTICK TO RADIATOR
80
SCREW , Replaced By: A0079900801
80
SCREW REDUCTION VALVE TO BRACKET
83
WASHER EXHAUST MUFFLER TO STRAP
83
WASHER , Replaced By: N000125008443
86
TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 941451, Replaced By: A6745000049, +001A6745012082, +001A6745012182
86
TANK EXPANSION TANK
89
RADIATOR CAP FILLER NECK
89
RADIATOR CAP FILLER NECK
89
RADIATOR CAP FILLER NECK
89
RADIATOR CAP , Replaced By: A0005016415
92
RADIATOR CAP
95
GASKET O.D., 52 MM
98
GASKET O.D., 37 MM
101
RUBBER MOUNTING RESERVOIR TO CAB FRONT PANEL
104
RIVET COOLANT LINE ON FAN SHROUD
107
WASHER BRACKET TO FRAME
107
WASHER , Replaced By: N000125017016
110
CLIP RESERVOIR TO CAB FRONT PANEL
999
BRACKET , Replaced By: A6736250214
999
SCREW BRACKET TO COVERING
999
SCREW , Replaced By: N000000001145
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
