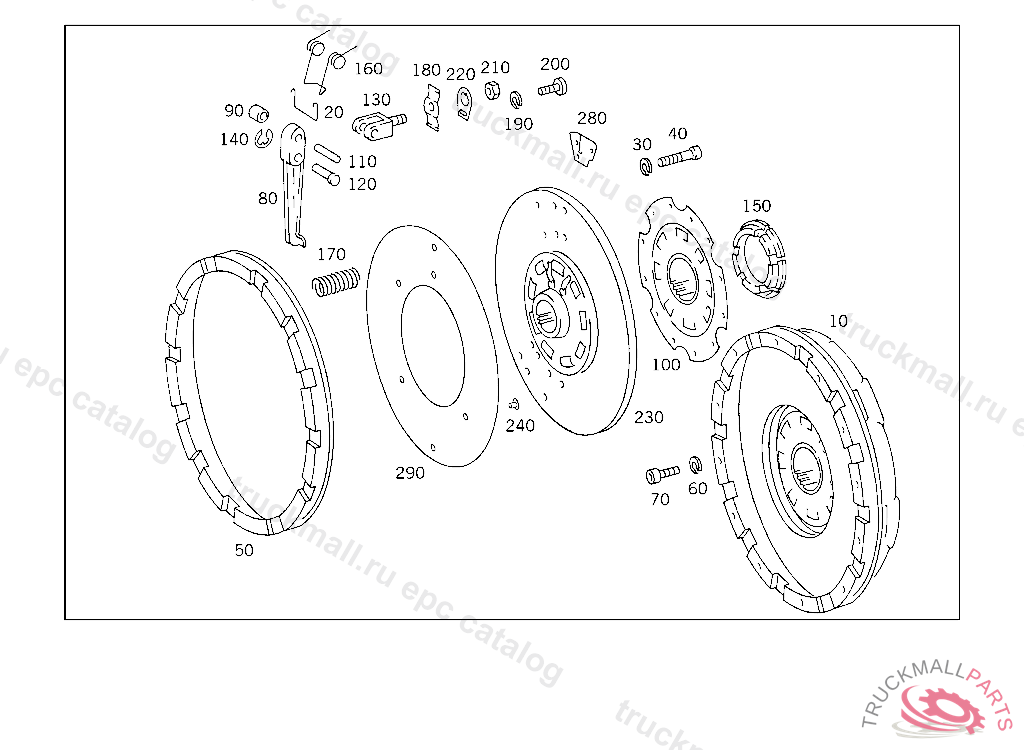

Поз.
Артикул
Описание
10
CLUTCH PRESSURE PLATE
20
CLAMP RELEASE FLANGE TO RELEASE LEVER
30
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
40
SCREW STEERING COLUMN TO CAB
50
SPACER RING
60
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
70
HEXALOBULAR BOLT. SCREWM 8X45
70
SCREW , Replaced By: N000000001448
80
RELEASE LEVER CLUTCH ACTUATION
90
BUSHING RELEASE LEVER
100
TORS. VIBRATION ABSORBER
110
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
120
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
130
BRACKET RELEASE LEVER
140
LOCK PLATE RELEASE LEVER TO SHAFT
150
FLANGE CLUTCH RELEASE
160
SPRING RELEASE LEVER
170
PRESSURE SPRING
180
LEAF SPRING FOR BRACKETS
190
LOCK WASHER BRACKET TO STEERING COLUMN END
200
SCREW RELEASE LEVER,BRACKET
210
NUT FOR BRACKETS
220
LOCK FOR BRACKETS
230
CLUTCH DISC ASBESTOS-FREE LINING
240
RIVET LINING WITH CLUTCH DISC,5 563495
240
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
240
RIVET LEAF SPRING TO CLUTCH DISC
240
RIVET LINING WITH INTERMEDIATE SPRING,5 563495
280
LEAF SPRING
290
CLUTCH LINING ASBESTOS-FREE
