Поз.
Артикул
Описание

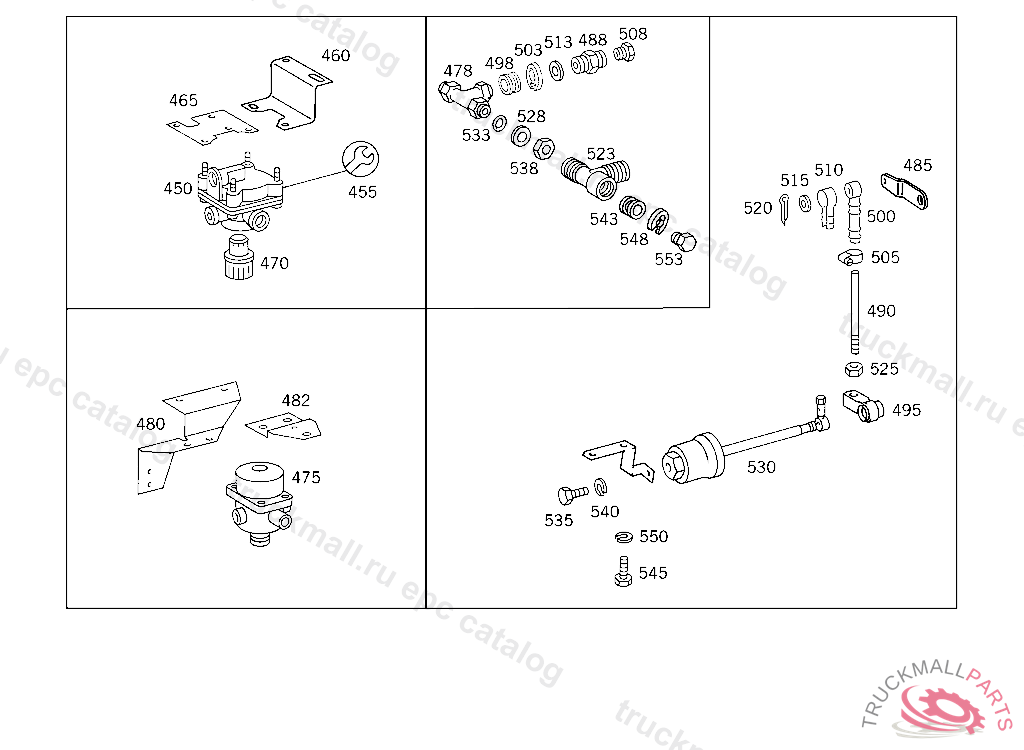

450
VALVE FRONT AXLE II RELAY VALVE "BOSCH"
450
VALVE (RELAY VALVE) WABCO, REPAIR IMPOSSIBLE
450
VALVE FRONT AXLE II RELAY VALVE "WABCO"
450
VALVE (RELAY VALVE) BOSCH, REPAIR IMPOSSIBLE
455
REPAIR KIT RELAY VALVE BOSCH
455
REPAIR KIT RELAY VALVE TO 004 429 38 44,WABCO
460
BRACKET RELAY VALVE TO CROSS MEMBER
465
BRACKET FRONT AXLE RELAY VALVE,5 585846
470
MUFFLER DEHYDRATOR
475
VALVE (PRESSURE RATIO VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
478
FITTING LINE CONNECTION
480
BRACKET PRESSURE RATIO VALVE,5 585846
482
BRACKET ,8 004624
485
LEVER BRAKE POWER REGULATOR CONTROL
488
VALVE (SHUTTLE VALVE)
490
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
495
BALL SOCKET PULL ROD
498
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
500
CONNECTOR PULL ROD TO LEVER
503
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
505
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
505
CLAMP , Replaced By: N000000000665
508
SCREW. UNION SCREW LINE CONNECTION
510
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
513
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
515
WASHER EXHAUST MUFFLER TO STRAP
515
WASHER , Replaced By: N000125008443
520
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
523
TANK RECESS. T-FITTING LINE CONNECTION
525
NUT , Replaced By: N304032008006
525
NUT
528
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
528
THRUST RING CHECK VALVE TO AIR RESERVOIR
530
METAL SPRING BELLOWS BRAKE POWER REGULATOR CONTROL,K 049886
533
O-RING CHECK VALVE TO AIR RESERVOIR
535
SCREW BRACKET TO TRANSMISSION
535
SCREW , Replaced By: N308676012038
538
NUT CHECK VALVE TO AIR RESERVOIR
540
LOCK WASHER FITTING TO BRACKET
543
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
545
SCREW BRACKET TO TRANSMISSION
545
SCREW , Replaced By: N308676012038
548
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
550
LOCK WASHER FITTING TO BRACKET
553
SCREW. UNION SCREW LINE CONNECTION
999
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
999
AIR CLEANER COMPLETE TO BOSCH,KNORR
999
REPAIR KITWABCO
999
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
999
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
999
MUFFLER TRAILER CONTROL VALVE
999
VALVE
999
HEATER CARTRIDGEBOSCH
999
HEATERKNORR
999
HEATERBOSCH, Replaced By: A0005450333
999
HEATERWABCO
999
VALVE (THROTTLE CHECK VALVE)
999
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0034291444
999
VALVE. REPAIR KIT SHUTTLE VALVE
999
SEAL RINGWABCO
999
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
