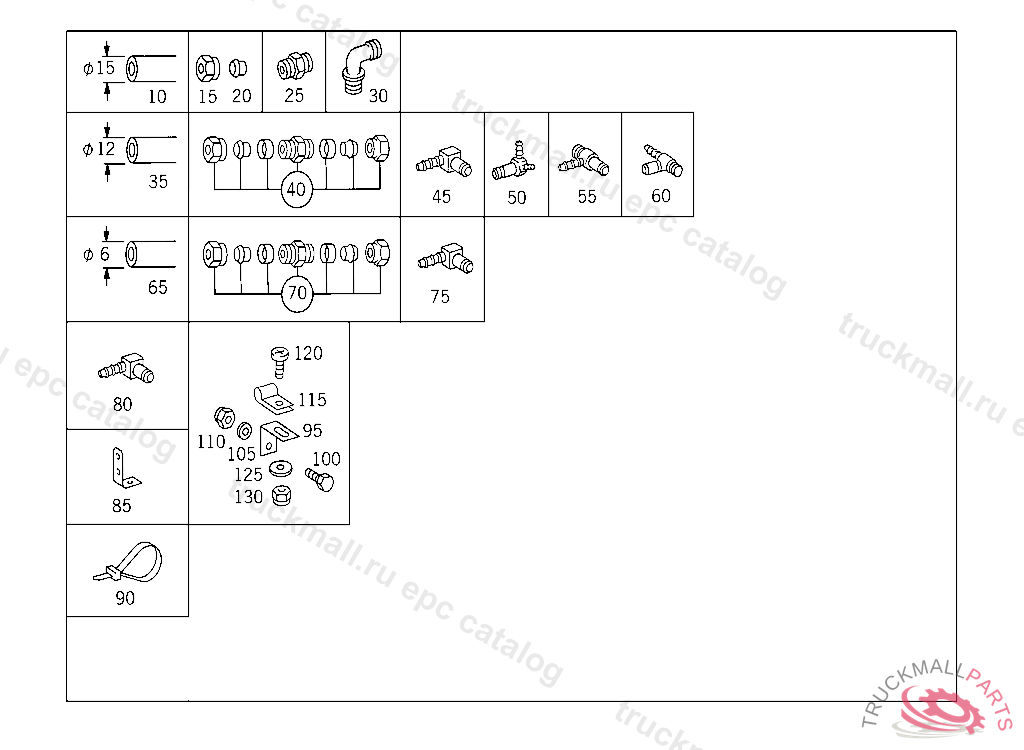

Поз.
Артикул
Описание
10
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
15
UNION NUT LINE CONNECTION
20
GLAND LINE CONNECTION
25
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
30
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
35
HOSE , Replaced By: A0009872827
35
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
40
FITTING (PARTS KIT),LINE RUPTURE
45
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
50
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
55
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
60
T-FITTING
65
PLASTIC PIPE RISING PIPE 4X6 MM
65
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
70
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
75
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
80
ELBOW FITTING , Replaced By: A0049905371
80
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
80
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
85
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
90
LOOM TIE LINE MOUNTING 280 MM
90
LOOM TIE LINE MOUNTING
95
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
SCREW , Replaced By: N308676012012
100
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
105
WASHER BRACKET TO FRAME
110
NUT SUPPORT TO SIDE MEMBER
115
CLAMP , Replaced By: A6739950001
120
SCREW PUMP TO BRACKET
125
WASHER , Replaced By: N009021006208
125
WASHER COMPRESSED AIR LINE TO BRACKET
130
NUT HEATING PIPE TO BRACKET
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SEAL RING AIR RESERVOIR,CONNECTIONS: "24,34"
999
SEAL RING LINE CONNECTION
999
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
999
SUPPORT (PROTECTION AGAINST TORSION)
999
CONSOLE AIR RESERVOIR TO FRAME
999
STRAP AIR RESERVOIR TO CONSOLE
999
BRACKET AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
999
CONNECTOR DISTRIBUTOR TO CAB
999
WASHER , Replaced By: A3609902340
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BASE AIR RESERVOIR TO CONSOLE
999
SEAL RINGWABCO
999
HOSE , Replaced By: A0009872927
999
FITTING LINE CONNECTION
999
FITTING AIR RESERVOIR,CONNECTION: "15",5 433281
999
FITTING LINE CONNECTION
999
RESERVOIR , Replaced By: A0054322201, +002A0009870446, +002A0009940203, +002A0049978272
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
AIR DRIERKNORR,5 937586
999
GASKET KITKNORR
999
GASKET KIT SEAL RINGS KNORR,5 937586
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR BOSCH
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR,K 126821
999
AIR DEHYDRATOR WITH PRESSURE REGULATOR KNORR
999
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
AIR DEHYDRATORBOSCH,5 937586
999
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
999
GASKET KITWABCO
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT PRESSURE REGULATOR BOSCH,K 126821
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT PRESSURE REGULATOR KNORR,K 126821
999
REPAIR KIT PRESSURE REGULATOR KNORR
999
AIR CLEANER COMPLETE TO BOSCH,KNORR
999
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
999
CONNECTOR 90 DEG. OFFSET
999
CONNECTOR BLEEDING
