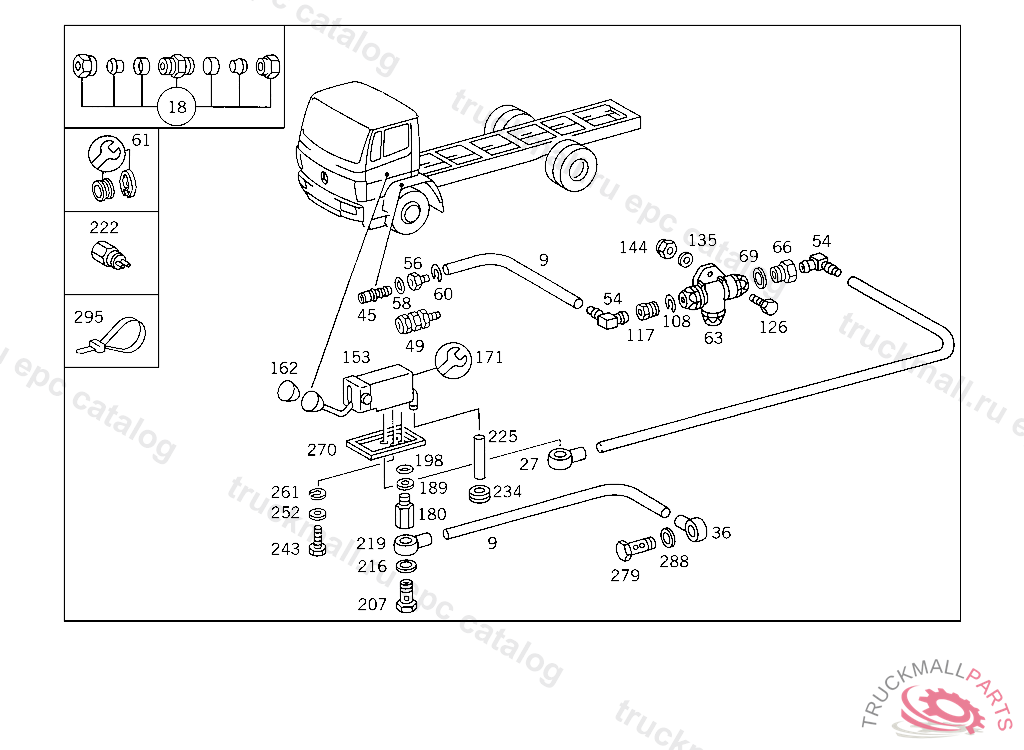

Поз.
Артикул
Описание
9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
18
FITTING (PARTS KIT),LINE RUPTURE
18
FITTING , Replaced By: A0029905971
27
BANJO UNION HEATING CONNECTION,K 169122
36
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
45
CONNECTOR HOSE WIDTH, 6 MM,TO M16
45
CONNECTOR HOSE WIDTH, 6 MM, TO M22
45
CONNECTOR , Replaced By: A0029905478
49
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
54
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
54
ELBOW FITTING , Replaced By: A0049905371
54
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
56
SCREW. UNION SCREW , Replaced By: A0009973734
56
SCREW. UNION SCREW LINE CONNECTION
58
SEAL RING , Replaced By: A0009940747
58
LOCK RING LINE CONNECTION
60
LOCK , Replaced By: A0009945448
60
LOCK LINE CONNECTION
61
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
63
VALVE , Replaced By: A0044291544
63
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
66
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
69
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
108
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
117
SCREW. UNION SCREW LINE CONNECTION
126
SCREW PIPE CLAMP
126
SCREW , Replaced By: N304017008021
135
WASHER , Replaced By: N000125008443
135
WASHER EXHAUST MUFFLER TO STRAP
144
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
144
NUT , Replaced By: N913004008001
153
VALVE (EXTENSIBLE BRAKE VALVE)
153
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034301781
162
HANDLETO 000 430 78 71
171
REPAIR KIT , Replaced By: A0034305381
171
REPAIR KIT EXTENSIBLE BRAKE VALVE
171
REPAIR KIT , Replaced By: A0014308760
180
ADAPTER FITTING EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
189
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
198
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
207
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
207
HOLLOW SCREW , Replaced By: N915036010108
207
HOLLOW SCREW FUEL LINE TO FEED PUMP
216
SEAL RING FUEL LINE TO FEED PUMP
219
BANJO UNION EXTENSIBLE BRAKE VALVE,CONNECTION: "20"
222
SWITCH EXHAUST BRAKE,K 251255
225
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
234
GROMMET HAND BRAKE VALVE BLEEDING,4 665938
243
SCREW , Replaced By: N304017006020
243
SCREW LICENSE PLATE TO BRACKET
252
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
261
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
270
SHIM HAND BRAKE VALVE
279
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
288
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
295
LOOM TIE LINE MOUNTING
