Поз.
Артикул
Описание

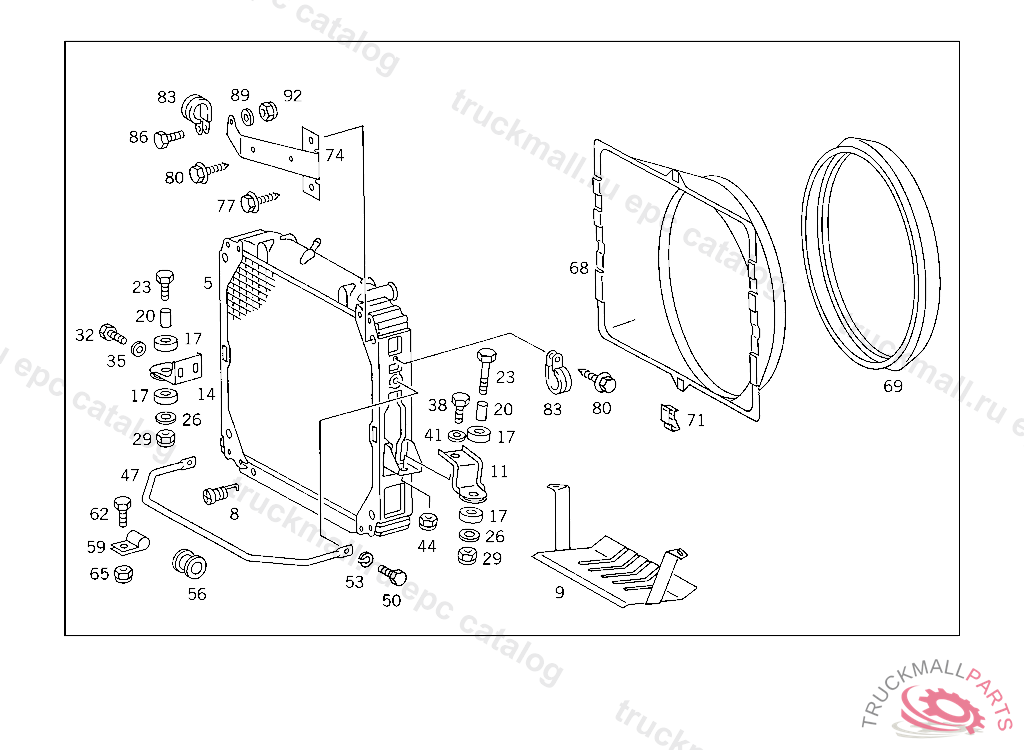

5
RADIATOR
5
RADIATOR
5
RADIATOR WATER
5
RADIATOR ,5 527394, Replaced By: A6775002003
8
SCREW WATER DRAIN
9
PANELLING RADIATOR,FRONT,B 884220
11
BRACKET RADIATOR,LEFT
14
BRACKET RADIATOR,RIGHT
17
RUBBER MOUNTING SUPPORT TO SIDE MEMBER
20
SPACER TUBE SUPPORT TO SIDE MEMBER
23
SCREW SUPPORT TO SIDE MEMBER M 10X75,B 884220
26
WASHER GROUND CABLE
26
WASHER SUPPORT TO SIDE MEMBER
29
NUT BRACKET TO SIDE MEMBER,XB209706
32
SCREW COLD START SYSTEM TO BRACKET
35
WASHER GROUND CABLE
38
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
41
WASHER LEFT SUPPORT TO RADIATOR
44
NUT SUPPORT TO SIDE MEMBER
47
CLAMP RADIATOR
50
SCREW SWITCH TO BRACKET 8X16
53
LOCK WASHER RAIL TO BATTERY SUPPORT
56
RUBBER MOUNTING BRACKET TO CROSS MEMBER
59
CLAMP BRACKET TO CROSS MEMBER
62
SCREW PLUG SOCKET TO FRAME
65
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
AIR BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 937517, Replaced By: A6765050230
69
BOOT AIR BAFFLE TO 676 505 01 30
69
BOOT FAN SHROUD TO AIR BAFFLE
71
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
74
BRACKET OIL DIPSTICK TO RADIATOR
77
SCREW DE-AERATION LINE TO RADIATOR
80
SCREW BRACKET TO WATER RADIATOR
83
CLAMP LINES TO BRACKET
83
CLAMP OIL DIPSTICK TO RADIATOR
83
CLAMP AT BRACKET
86
SCREW PLUG SOCKET TO FRAME
89
WASHER TRAILER PLUG SOCKET TO BRACKET
92
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
