Главная
›
Mercedes
›
BUS
›
LO 1417
›
685.115
›
30 CONTROL
›

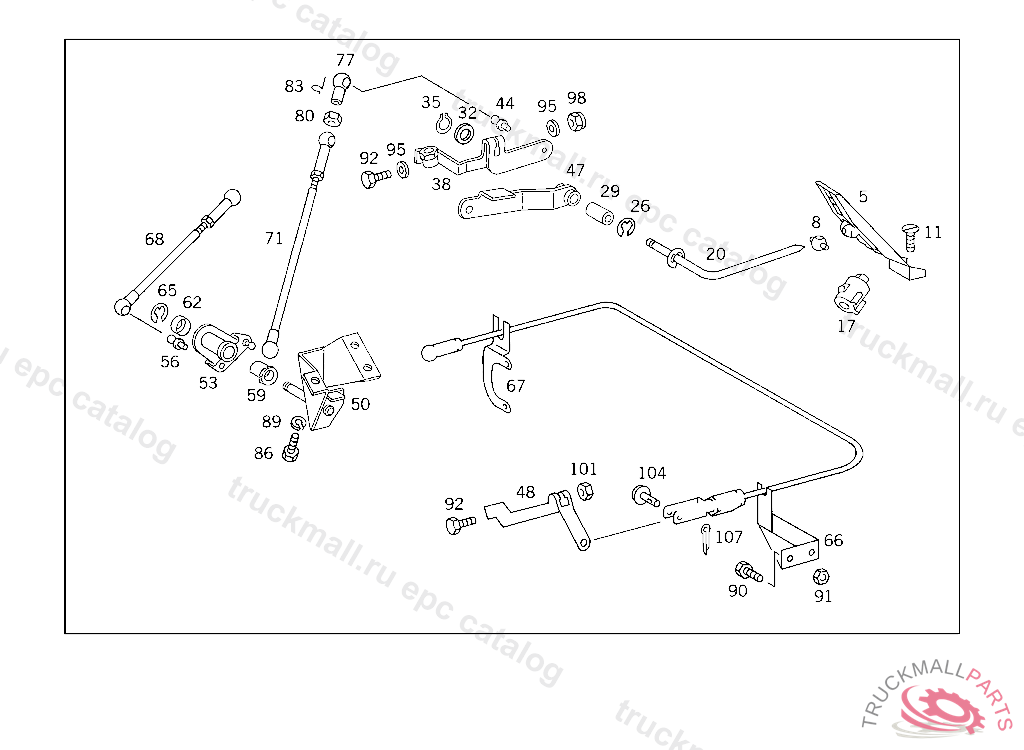

060 ACCELERATOR PEDAL CONTROL IL. 1
Mercedes A0009912422 - НАКОНЕЧНИК ТЯГИ
LO 1417 685.115
30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A6733000004
ACCELERATOR PEDAL
8
A3093010022
JOINT
11
N000963006010
SCREW ACCELERATOR PEDAL TO FLOOR PLATE
17
A1263010141
STOP FULL THROTTLE
20
A3763007325
LEVER (PEDAL LEVER)
26
N006799009002
LOCK PLATE
29
A3863017050
BUSHING ,B 892893
32
N000125010517
WASHER GROUND CABLE
35
N900055010403
LOCK RING. RETAINING RING ACCELERATOR PEDAL TO LEVER
38
A3763007425
LEVER (CONTROL LEVER)
44
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
47
A3763007117
LEVER (CONTROL LEVER)
50
A3843007240
BRACKET REVERSING LEVER
53
A3763007128
LEVER
56
N071803010202
BALL STUD. BALL PIVOT TOP B10X4,5 MM
59
A3813020050
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
62
A4073015088
COVERING
65
N006799009002
LOCK PLATE
68
A3863008115
ROD265 MM
71
A3863007315
ROD305 MM
77
A0009912422
BALL SOCKET PULL ROD TO LEVER
80
N000934006006
NUT
83
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
86
N000933008268
SCREW SWITCH TO BRACKET 8X16
89
N912004008100
LOCK WASHER RAIL TO BATTERY SUPPORT
92
N000931006197
SCREW BRACKET TO FRAME
95
N000125006420
WASHER PLUG SOCKET TO BRACKET
98
N913004006001
NUT PUMP TO BRACKET
