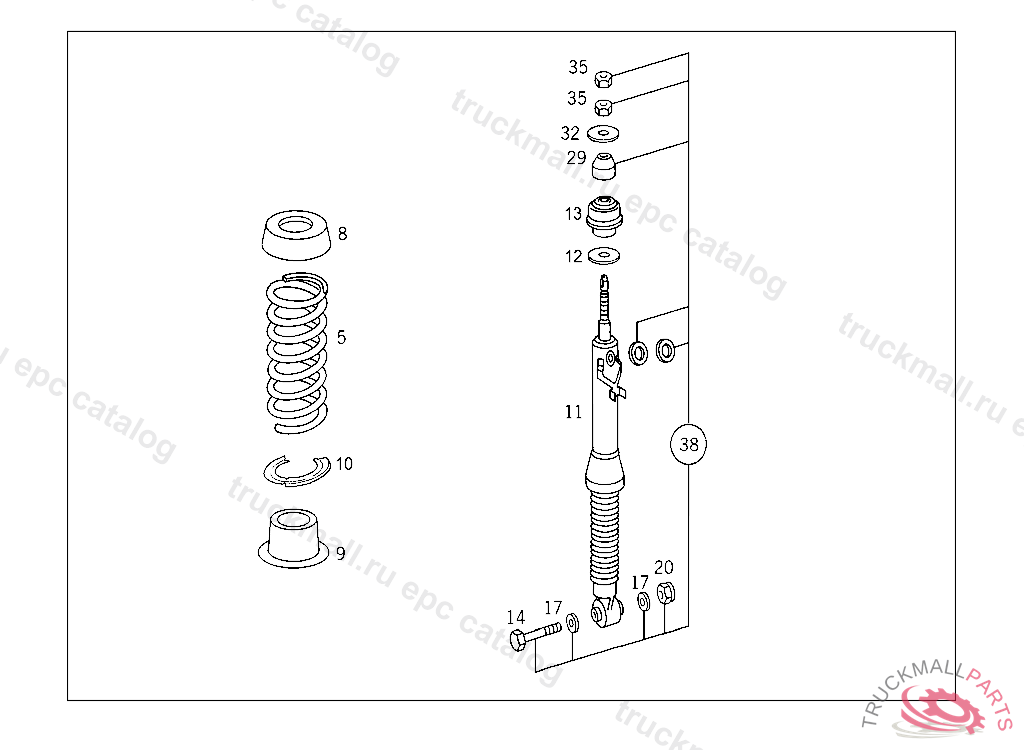

Поз.
Артикул
Описание
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING AS REQUIRED
5
REAR SPRING
5
REAR SPRING , Replaced By: A2023242204, +002A2023250041
5
REAR SPRING , Replaced By: A2023243004, +002A2023250041
5
REAR SPRING , Replaced By: A2023243104, +002A2023250041
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 3 (18 MM)
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 2 (13 MM)
8
RUBBER BUFFER AS REQUIRED, NUMBER OF BURLS: 1 (8MM)
8
SHIM TOP, STUD COUNT: 2 ( 9MM )
8
SHIM TOP, STUD COUNT: 3 ( 13MM )
8
SHIM TOP, STUD COUNT: 4 ( 17MM )
8
SHIM TOP, STUD COUNT: 1 ( 5MM )
9
STIFFENING (BRACING)
10
SPRING SHIM
11
HYDROPN. SPRING LEG , FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
11
HYDROPN. SPRING LEG , FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
11
HYDROPN. SPRING LEG , Replaced By: A2023200113, +002A2029900099
11
HYDROPN. SPRING LEG , Replaced By: A2023200213, +002A2029900099
12
RETAINER HYDROPNEUMATIC SPRING LEG TO FRAME
13
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
14
SCREW CLAMPING BOLT TO MOUNTING PLATE M10 X 60, NOT USED
17
WASHER RADIATOR TO RUBBER MOUNTING
20
NUT REINFORCEMENT TO BRACKET
29
RUBBER BUFFER HYDROPNEUMATIC SPRING LEG TO FRAME
32
WASHER REAR SHOCK ABSORBERS
35
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
38
ATTACHMENT HYDROPNEUMATIC SPRING LEG MOUNTING
38
REPAIR KIT , Replaced By: A2029900099
