Mercedes A9069971245 - Кольцо уплотнительное фланца компрессора

MBO 1219 685.289

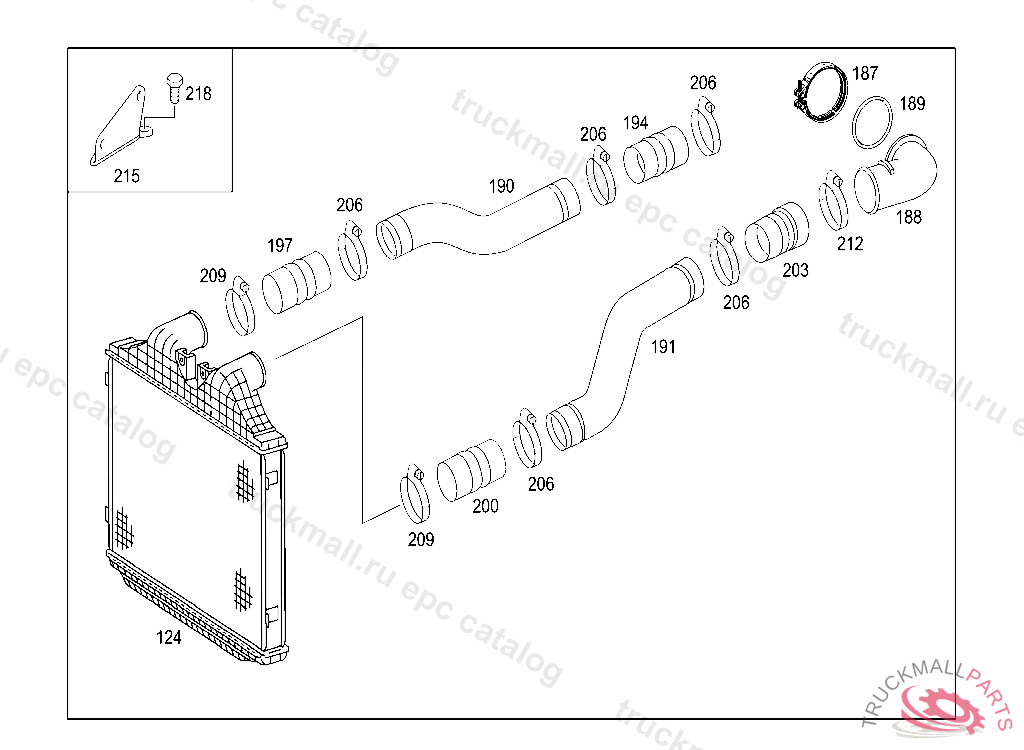

50 RADIATOR - 510 CHARGE AIR INTERCOOLER IL. 2

Поз.
Артикул
Описание
124
A6955010001
187
A0009950033
CLAMP CHARGE-AIR PIPE ON CHARGE-AIR HOUSING
188
A9060980540
189
A9069971245
SEAL RING BEARING FLANGE IN TIMING CASE & AIR COMPRESSOR HOUSING,RESP.
190
A6855280308
191
A6855280008
191
A6855280208
194
A9040940882
197
A9040940782
200
A9040940682
203
A9040940982
203
A9040940582
206
A3849977390
LOOM TIE. CLAMP
206
A6859950110
CLAMP68-85MM
209
A6859950210
CLAMP
209
A3849977490
LOOM TIE FROM CHARGING AIR INTERCOOLER TO ENGINE
209
A0059972990
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
212
A6859950010
CLAMP87-112MM
212
A6859950610
