Поз.
Артикул
Описание

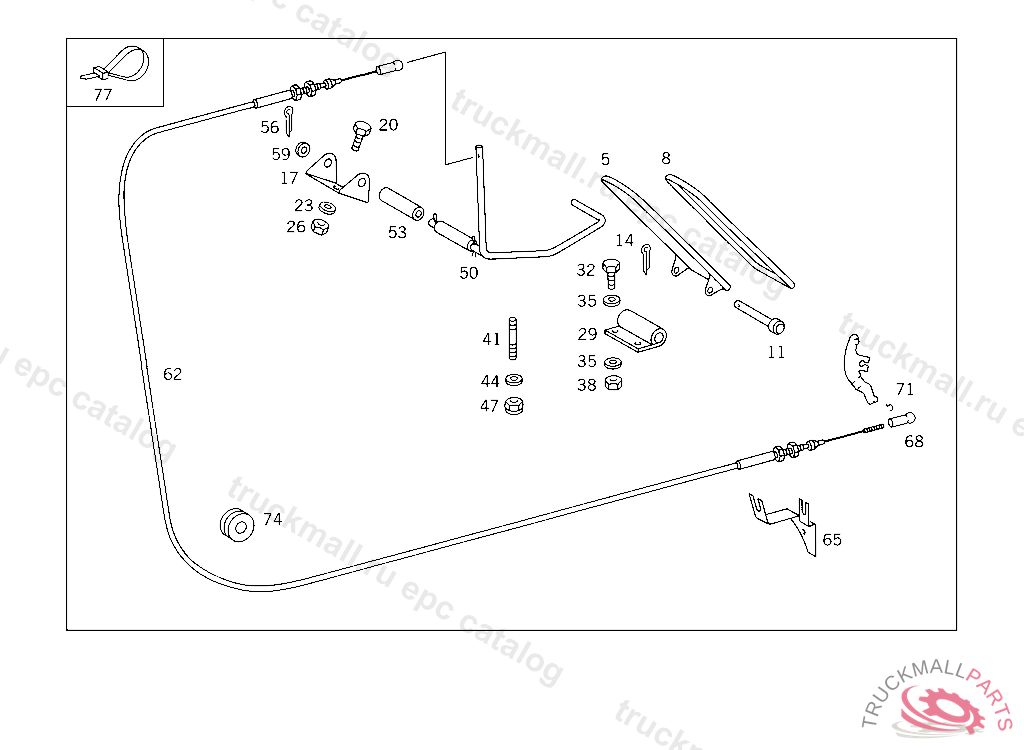

5
ACCELERATOR PEDAL ,3AM BEM GDXXS043976
8
SLEEVE ,3AM BEM GDXXS043976
11
PART NAME MISSING PIN, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
14
PART NAME MISSING COTTER PIN, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
17
BRACKET ROD, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
20
PART NAME MISSING SCREW
23
PART NAME MISSING WASHER 3/8,3AM BEM GDXXS043976
26
PART NAME MISSING NUT
29
BRACKET ACCELERATOR PEDAL, INAPPLICABLE TO BM 685.441-310,685.448-310
32
SCREW SCREW 1/4-20,3AM 685442 50 038885
35
PART NAME MISSING WASHER 1/4, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
38
NUT NUT
41
PART NAME MISSING PIN
44
PART NAME MISSING WASHER 5/16
47
PART NAME MISSING NUT 5/16-18
50
ROD ACCELERATOR PEDAL TO LEVER, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
53
ROLLER BEARING ,3AM BEM GDXXS043976
56
PART NAME MISSING COTTER PIN, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
56
PART NAME MISSING COTTER PIN,3AM BEM GDXXS043976
59
PART NAME MISSING WASHER, ONLY APPLICABLE TO BM 685.438,685.441-310,685.448-310
62
WIRE CABLE
62
WIRE CABLE
65
BRACKET BOWDEN CABLE,3AM BEM GDXXS043977
68
BALL SOCKET PULL ROD TO LEVER
71
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
74
PART NAME MISSING RUBBER
77
PART NAME MISSING LOOM TIE
