Mercedes N910105014009 - Винт M 14 X 1,5 X 70 10.9

L 1622/1624 695.011

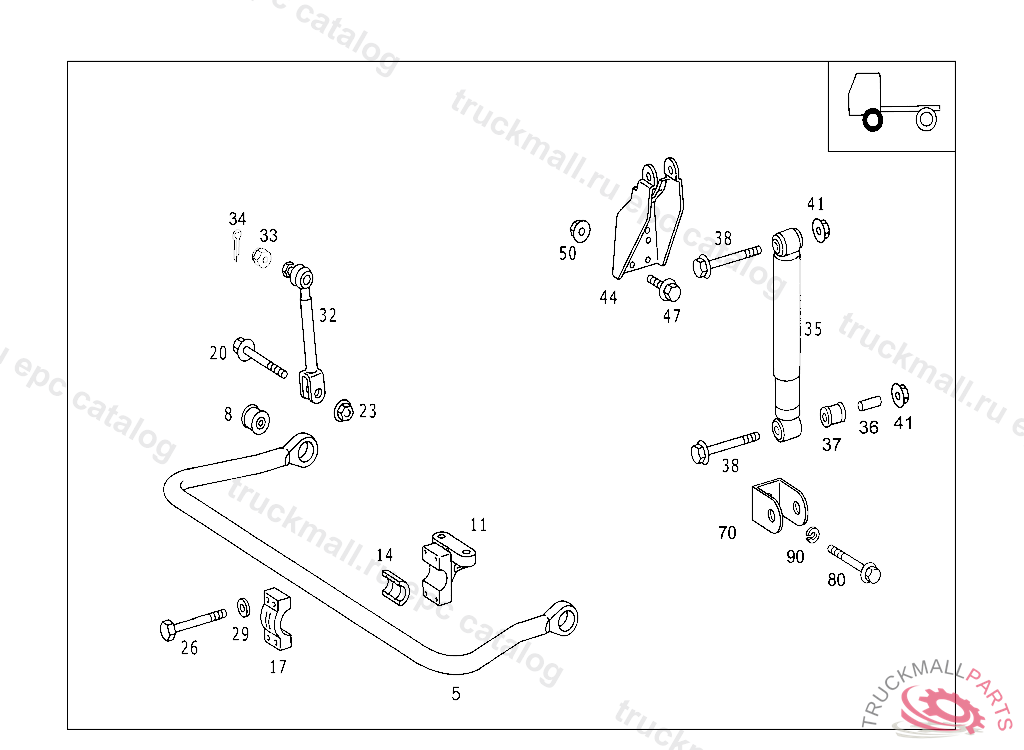

32 SPRINGS AND SUSPENSION - 160 FRONT AXLE TORSION BAR & SHOCK ABSORBERS

Поз.
Артикул
Описание
5
A3843207411
TORSION BAR STABILIZER,D 012296
8
A3843207050
BUSHING
11
A3843237163
BEARING BRACKET HOLE SPACING: 88 MM
14
A3843237081
GROMMET STABILIZER
14
A3843237181
GROMMET STABILIZER
17
A3843237021
BEARING SHELL TORSION BAR BEARING
20
N910105014009
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
23
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
26
N000931010395
SCREW (ARTICULATED ROD)
29
N007349010006
WASHER (ARTICULATED ROD)
32
A3843207989
ROD (ARTICULATED ROD)
35
A6953230000
38
N910105016008
HEXAGON HEAD BOLT. SCREW SHOCK ABSORBER TO LOWER BEARING BRACKET M 16X1.5X90
41
N913023016001
NUT FIFTH WHEEL COUPLING TO MOUNTING PLATE
44
A3843237140
BRACKET RIGHT
44
A3843237040
BRACKET LEFT
47
N910105012010
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
47
N910105012020
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X35
50
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
