Поз.
Артикул
Описание

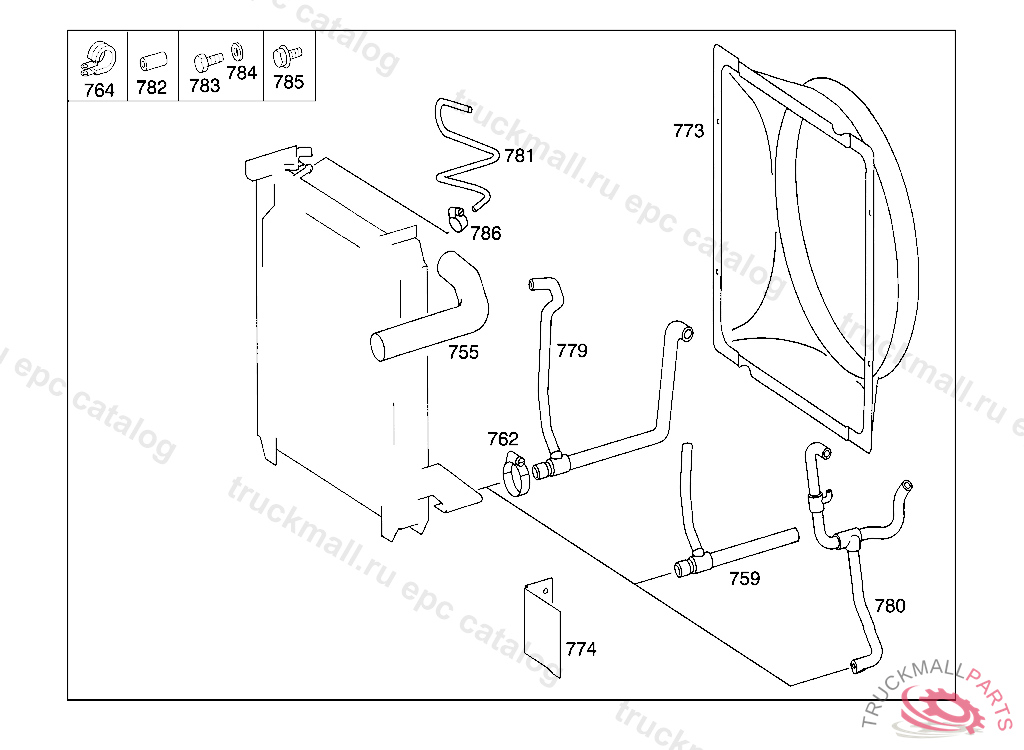

755
HOSE COOLING WATER LINE TO EXPANSION TANK
759
HOSE ON WATER COOLER
759
HOSE BUBBLE SEPARATOR TO RADIATOR
759
HOSE ON WATER COOLER
762
CLAMP , Replaced By: N000000000670
764
CLAMP HOSE TO FITTING AND TO OIL TANK
773
FAN SHROUD ,D 180260
773
FAN SHROUD ,D 581594
773
FAN SHROUD ,D 523393
774
BRACKET RADIATOR,D 180260
779
HOSE FROM RADIATOR OUTLET TO WATER PUMP
780
HOSE FROM WATER PUMP TO RADIATOR,D 247422
780
HOSE FROM WATER PUMP TO RADIATOR,D 247423
781
LINE COOLING WATER,D 180260
782
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
782
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
782
HOSE12X31X740 MM,D 180260
783
SCREW5/16
784
WASHER
784
WASHER BRACKET TO LEFT SIDE MEMBER
785
SCREW BRACKET TO CAB REAR PANEL M 8X20
786
CLAMP25-40X13 MM
786
CLAMP , Replaced By: N000000000667
786
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
786
CLAMP HOSE TO FITTING AND TO OIL TANK
999
SEPARATORTO 374 094 00 02
999
POWER CYLINDER EXHAUST BRAKE
999
CABLE ACCELERATOR PEDAL TO A 688 300 00 30
999
CABLE INJECTION PUMP SIDE TO A 688 300 00 30
999
CABLE INJECTION PUMP SIDE TO 6883000132
999
CABLE ACCELERATOR PEDAL TOA6883000132
999
NUT FOLLOWER FLANGE TO PROPELLER SHAFT TO 000 410 03 30
999
FLANGE
999
RETAINING STRAP TO A 688 490 11 01
999
BRACKET TO A 688 490 11 01
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEAL RING SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
999
LOCK SPRING LOAD ACCUMULATOR CYLINDER TO M10 / VOSS 230,D 259885
999
LOCK CLUTCH HOSE
999
CLAMP BOWDEN CABLE TO CAB
999
UNION SCREW SPRING LOAD ACCUMULATOR CYLINDER M10X1 / VOSS 230,D 259885
999
GREASE NIPPLE
999
DRAG LINK ENDTO 688 460 83 05, 86 05
999
RUBBER BUFFER COVERING TO FRAME
999
CONNECTOR
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTINGTO M10 / 4MM /VOSS 230
999
HOSE , Replaced By: A0009872827
999
CAP OIL REFILLING
999
NUT
999
STOP FULL THROTTLE
999
BRACKET
999
BUSHING CONTROL LEVER,B 892892
999
GROMMET
999
PLASTIC SECTION SELF-ADHESIVE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
FILTER ELEMENT ADDITIONAL TO 376 090 82 04
999
SHIM TOOLS AND ACCESSORIES
999
MERCEDES STAR
999
CLAMP TOOLS AND ACCESSORIES
999
CLIP TOOLS AND ACCESSORIES
999
NUT
999
LINE NO.1-TO-NO.2-CONNECTING-POINT LOW-PRESSURE OIL-LINE "15 MM", NOT USED
999
LINE FROM OIL TANK TO HYDRAULIC PUMP, NOT USED
999
BRACKET TAIL LAMP
999
LOOM TIE COMPRESSED AIR LINE MOUNTING 381 MM
999
RUBBER MOUNTING
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
LOCKING CAP AIR COMPRESSOR
999
OIL FILLER NECK ,B 797839
999
HOSE
999
FILTER WATER SEPARATOR
999
FITTING. FILTER
999
FILTER
999
SUPPORTING ARM
999
SUPPORTING ARM
999
GUIDE SHIFTING TUBE
999
CROSS MEMBER
999
LINE , NOT USED
999
LINE
999
EXHAUST PIPE
999
FRONT EXHAUST PIPE
999
BRACKET
999
BRACKET OIL COOLER
999
BRACKET OIL COOLER
999
SPACER TUBE CHARGING AIR INTERCOOLER TO 664 501 86 01
999
CONTROL UNIT
999
SPACER RING
999
SNAP RING
999
HOSE FROM AIR CLEANER TO AIR COMPRESSOR
999
CLAMP AIR INTAKE PIPE
999
WASHER , Replaced By: A4039900040
999
STOP
999
BANJO UNION
999
OIL COOLER (OIL COOLER)
999
PIPE REMOTE GEARSHIFT MECHANISM
999
LINE FROM HOSE TO TANK, Replaced By: A6644200136
999
HOLLOW SHAFT
999
WASHER
999
LOCK
999
VALVE REMOTE GEARSHIFT MECHANISM
999
BRACKET
999
RUBBER BUFFER CAB TO FRONT CONSOLE
999
STOP CAB TO FRONT CONSOLE
999
SPACER TUBE CAB TO FRONT CONSOLE
999
BEARING BRACKET TO SHACKLE
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
AIR CLEANER"MANN",B 797839
999
LEVER , Replaced By: A6883010120, +001N006799009002
999
LEVER
999
CROSS MEMBERNO. 1
999
COVER CAB SUSPENSION
999
WASHER CAB TO FRONT CONSOLE
999
SHIM CAB SUSPENSION
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING 1616 MM
999
PROPELLER SHAFT FROM TRANSMISSION TO INTERMEDIATE BEARING
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
HOSE SUCTION LINE CONNECTION
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
STRAP FUEL TANK MOUNTING
999
BRACKET EXHAUST MUFFLER SUPPORT TO SIDE MEMBER TO A 688 490 08 01,D 462817
999
SUPPORT
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
REAR EXHAUST PIPE ,D 250888 NOT USED
999
SUPPORT RIGHT
999
SUPPORT LEFT
999
RADIATOR WATER
999
BRACKET
999
BRACKET
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
HOSE FROM CONNECTING PIPE TO EXPANSION TANK
999
HOSE
999
STRUT
999
AIR INTAKE PIPE ,B 862668
999
BRACKET BRACKET TO MOUNTING PLATE
999
BRACKET BUMPER BRACKETS
999
COVERING
999
BUMPER
999
HOSE TO AIR CLEANER
999
HOSE FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
INTAKE CASE
999
HOSE
999
BRACKET LEFT, ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYTIC CONVERTER, Replaced By: A9795410140
999
TYPE DESIGNATION , Replaced By: A6938170315
999
WASHER CAB TO FRONT CONSOLE
999
FITTING CLUTCH SLAVE CYLINDER M 12X1TO 688 290 03 13
999
FITTING CLUTCH HOSE M14X1 MM
999
GROMMET BATTERY CABLE PASSAGE
999
HOSE
999
CROSS MEMBER (REAR CROSS MEMBER)
999
GUSSET PLATE LEFT BOTTOM
999
GUSSET PLATE RIGHT BOTTOM
999
GUSSET PLATE TOP LEFT
999
GUSSET PLATE TOP RIGHT
999
GUSSET PLATE BOTTOM LEFT
999
GUSSET PLATE BOTTOM RIGHT
999
BRACKET AT MUFFLER
999
REAR EXHAUST PIPE REAR
999
CABLE HARNESS MANUAL CONTROL
999
MUFFLER FROM AIR INTAKE PIPE TO AIR COMPRESSOR
999
BEARING SHACKLE TO STABILIZER, Replaced By: A9793200173
999
BEARING BRACKET TO SHACKLE
999
SUPPORT FUEL TANK MOUNTING,D 339846
999
RUBBER MAT ,D 339846
999
RUBBER SECTION ,D 339846D 437847
999
FILLER NECK FITTING
999
HOSE FROM RADIATOR TO INTERMEDIATE PIECE
999
BRACKET PIPE ELBOW TO CHARGING AIR INTERCOOLER
999
CLAMP , Replaced By: A0059972990
999
CLAMP , Replaced By: A0059970690
999
HEXAGON HEAD BOLT. SCREW BEARING BRACKET TO AXLE M 18X180
999
SEALING RING AT PRESSURE REGULATOR
999
SEALING RING
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW. HEXALOBULAR BOLT BRACKET TO RIGHT FRONT FENDER M8X30
999
COTTER PIN
999
COTTER PIN DRAG LINK TO STEERING ARM
999
WASHER TRANSMISSION TO INTERMEDIATE RING
999
SCREW CROSS MEMBER TO SIDE MEMBERS
999
SCREW BRACKET TO RIGHT SIDE MEMBER
999
NUT TO A6884608605
999
NUT
999
SCREW BRACKET TO SIDE MEMBER
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
999
WASHER BRACKET TO FENDER BRACKET
999
LOCK PLATE
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING
999
SEAL RING INJECTION PUMP
999
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
SCREW PLUG 4/2-WAY VALVE
999
RIVET12X34 MM, TO BE ADAPTED DURING ASSEMBLY
999
RIVET12X36 MM
999
RIVET SUPPORT TO SIDE MEMBER 14X30
999
SCREW BRACKET AND CLAMP M6X20
999
SCREW , Replaced By: N910143008000
999
SCREW , Replaced By: N910143008010
