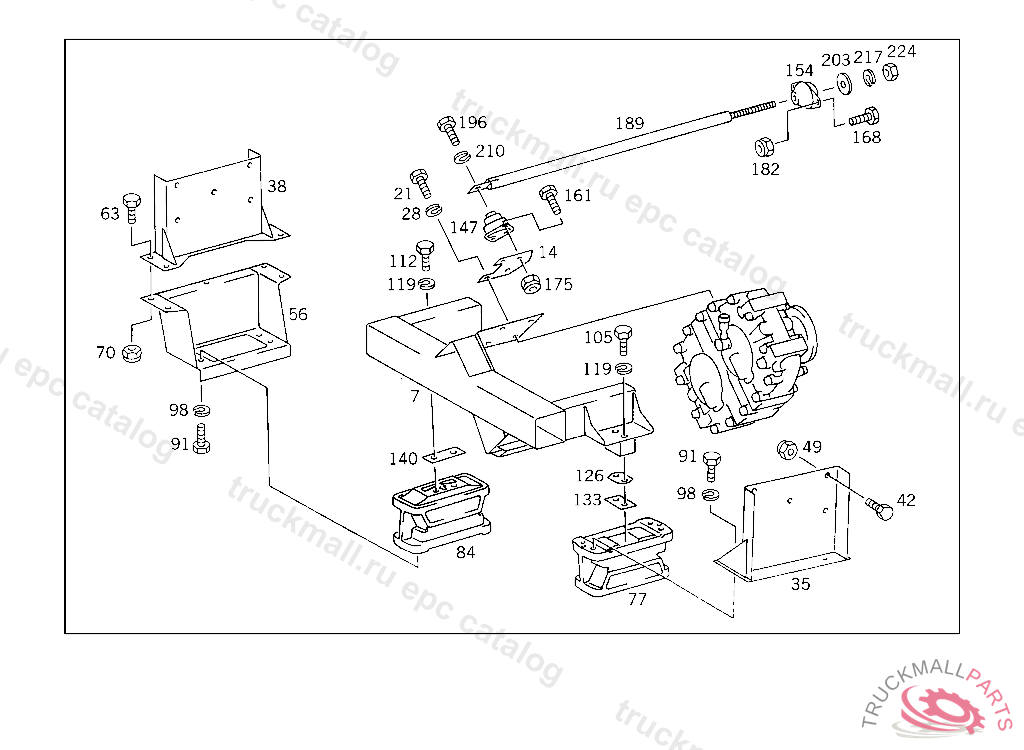

Поз.
Артикул
Описание
7
SUPPORT TRANSFER CASE SUSPENSION
14
BRACKET RUBBER MOUNT
21
SCREW RUBBER MOUNTING TO ENGINE M 12X35
21
SCREW , Replaced By: N304017012013
28
LOCK WASHER FITTING TO BRACKET
35
SUPPORT TRANSFER CASE SUSPENSION,LEFT
38
SUPPORT TRANSFER CASE SUSPENSION,RIGHT
42
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
42
SCREW , Replaced By: N308676014003
49
NUT STEERING SUPPORT TO FRAME
49
NUT , Replaced By: N910113014000
56
SUPPORT RIGHT
63
SCREW MOUNTING TO CONSOLE M 14X35
63
SCREW , Replaced By: N308676014008
70
NUT STEERING SUPPORT TO FRAME
70
NUT , Replaced By: N910113014000
77
RUBBER MOUNTING REAR
77
RUBBER MOUNTING REAR
77
RUBBER MOUNTING REAR
84
BEARING TRANSFER CASE SUSPENSION,RIGHT
91
HEXAGON HEAD BOLT , Replaced By: A0029902704
91
SCREW , Replaced By: N308676012013
98
LOCK WASHER FITTING TO BRACKET
105
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
105
SCREW , Replaced By: N308765016010
112
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
112
SCREW , Replaced By: N308676016007
119
LOCK WASHERROCKINGER TYP 59 G140,59 G150
126
SHIM SUPPORT WITH TRANSFER CASE ON RUBBER MOUNTING,LEFT
133
SHIM , Replaced By: A6972850384
140
SHIM SUPPORT WITH TRANSFER CASE ON BEARING, RIGHT 8 MM
147
RUBBER MOUNTING FRONT
154
RUBBER MOUNTING REAR
161
SCREW BRACKET TO FRAME SIDE MEMBER
168
SCREW PIPE CLAMP
168
SCREW , Replaced By: N304017008021
175
NUT END PIECE TO EXHAUST PIPE
182
NUT , Replaced By: N913004008001
189
ROD
196
SCREW BRACKET TO SUPPORT M 16X20
203
WASHER BRACKET TO SIDE MEMBER
210
LOCK WASHERROCKINGER TYP 59 G140,59 G150
217
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
224
NUT FORE AND AFT ADJUSTMENT
