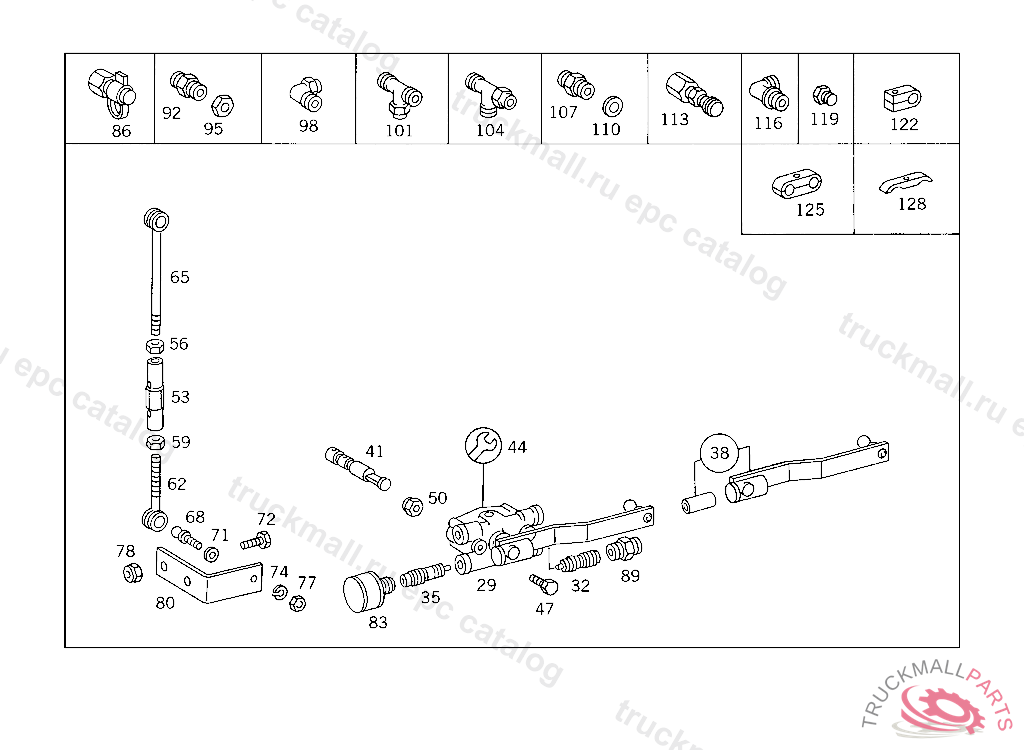

Поз.
Артикул
Описание
29
VALVE TRAILING AXLE SELF-LEVELLING DEVICE
29
VALVE PNEUMATIC SUSPENSION BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
32
VALVE INTAKE
35
VALVE EXHAUST
38
LEVER (PARTS KIT)
41
SHAFT87 MM
44
REPAIR KIT
47
50
NUT , Replaced By: N913004008001
53
NUT FRONT AXLE LEVEL ADJUSTMENT
56
NUT ,B 884219
59
NUT , Replaced By: N304035008002
62
BALL SOCKET POWER CYLINDER TO LEVER
65
ROD
65
BALL SOCKET , Replaced By: A3073200189
68
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
74
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
77
NUT , Replaced By: N304032008006
80
BRACKET DELIVERY LINE TO CROSS MEMBER, PARTS TO BEORDERED FROM SUPPLIER,MESSRS F X MEILLER,MUNICH
83
BREATHER FILTER. FILTER TRAILER CONTROL VALVE,CONNECTION: "4"
86
89
VALVE LEVEL ADJUSTMENT VALVE,CONNECTION: "10"
98
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
104
T-FITTING 3/2-WAY VALVE
107
FITTING LINE CONNECTION, Replaced By: N000000006446
110
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
128
PLATE LINE MOUNTING
128
PLATE LINE MOUNTING, SIMPLE PART-PLEASE HAVE SHOP MADE
