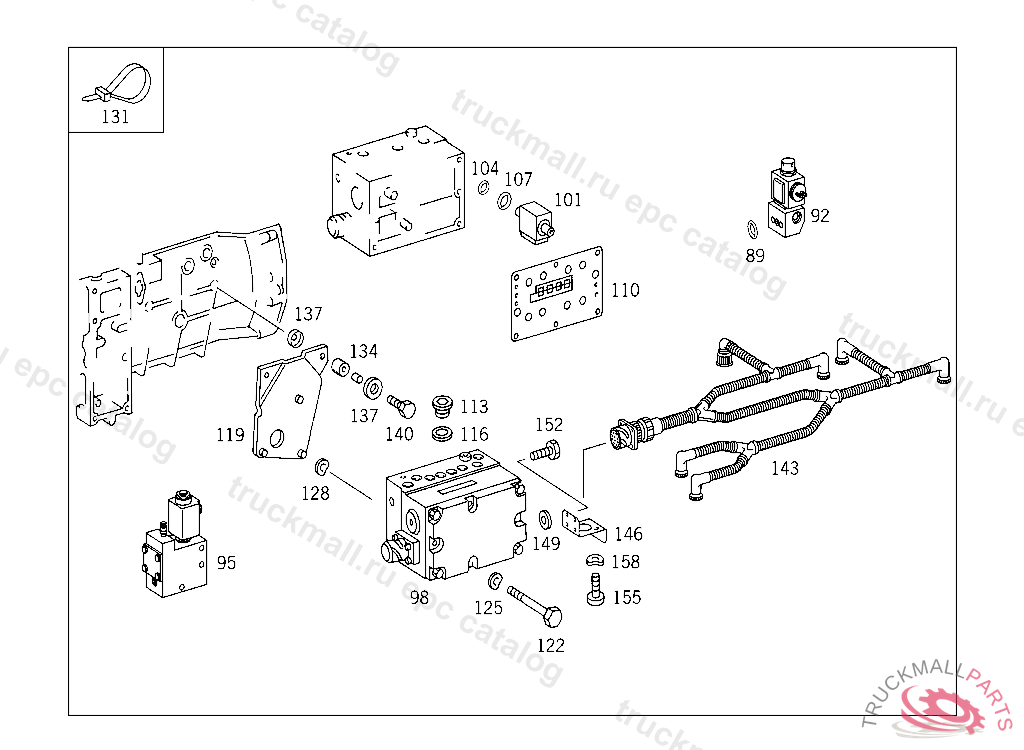

Поз.
Артикул
Описание
89
SEAL RING SOLENOID VALVE TO OIL COOLER HOUSING
92
VALVE (SOLENOID VALVE)
95
VALVE
98
VALVE PNEUMATIC SHIFT MECHANISM AVS
101
VALVE
104
SEAL RING1.78X5,28 MM
107
SEAL RING1.78X15.6 MM
110
GASKET
113
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
116
SEAL RING
119
PLATE VALVE
122
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
125
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
125
SPRING WASHER , Replaced By: N000137008212
128
SPACER WASHER VALVE TO TRANSMISSION
131
LOOM TIE PLATE TO TRANSMISSION CASE
134
SPACER TUBE PLATE TO TRANSMISSION CASE
137
WASHER PLATE TO TRANSMISSION CASE
140
SCREW VALVE TO CROSS MEMBER, NOT USED
143
CABLE HARNESS
146
BRACKET
149
BUSHING BRACKET TO TRANSMISSION
152
SCREW PUMP TO BRACKET
155
SCREW , Replaced By: N000000001933
155
SCREW FUSE BOX TO SIDE MEMBER,5 097182
158
SPRING WASHER ALTERNATOR CONNECTION D+
