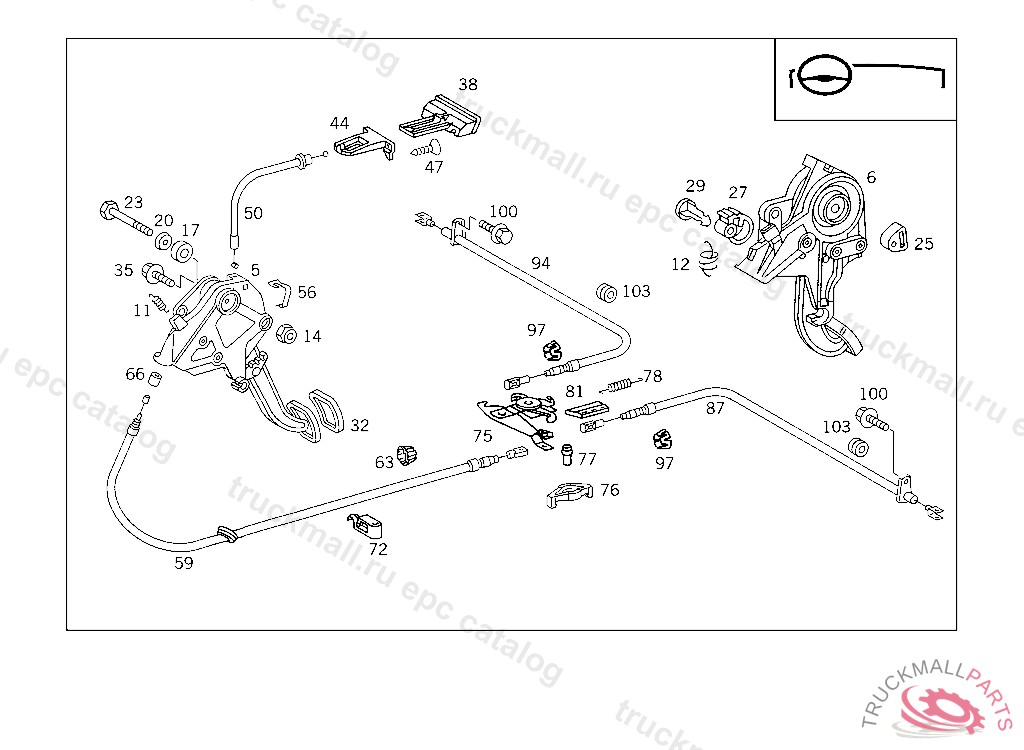

Поз.
Артикул
Описание
6
PARKING BRAKE , FROM MODEL YEAR'96
6
PARKING BRAKE , Replaced By: A2204201284
11
SPRING
12
SPRING , FROM MODEL YEAR'96
14
NUT OIL TANK TO BRACKET
17
DAMPING RING
20
WASHER
23
SCREW , Replaced By: N304017006026
25
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
27
DETENT , FROM MODEL YEAR'96
27
DETENT , Replaced By: A2024270228
29
PIN , FROM MODEL YEAR'96
32
PAD PEDAL
35
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
38
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
38
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
44
GUIDE UNLOCKING FOOT OPERATED PARKING BRAKE
47
SCREW
50
BRAKE CABLE PAWL RELEASE
56
CLIP
59
BRAKE CABLE FRONT
63
CLAMPING PIECE
66
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
72
CLAMP ,A 181986
75
ADJUSTER
76
CLIP
77
PIN
78
SPRING
81
GUIDE
87
BRAKE CABLE , Replaced By: A2024202785
87
BRAKE CABLE REAR LEFT
94
BRAKE CABLE , Replaced By: A2024202885
94
BRAKE CABLE REAR RIGHT
97
CLAMPING PIECE
100
SCREW BRAKE CABLE TO REAR AXLE
103
GROMMET BRAKE CABLE TO REAR AXLE
