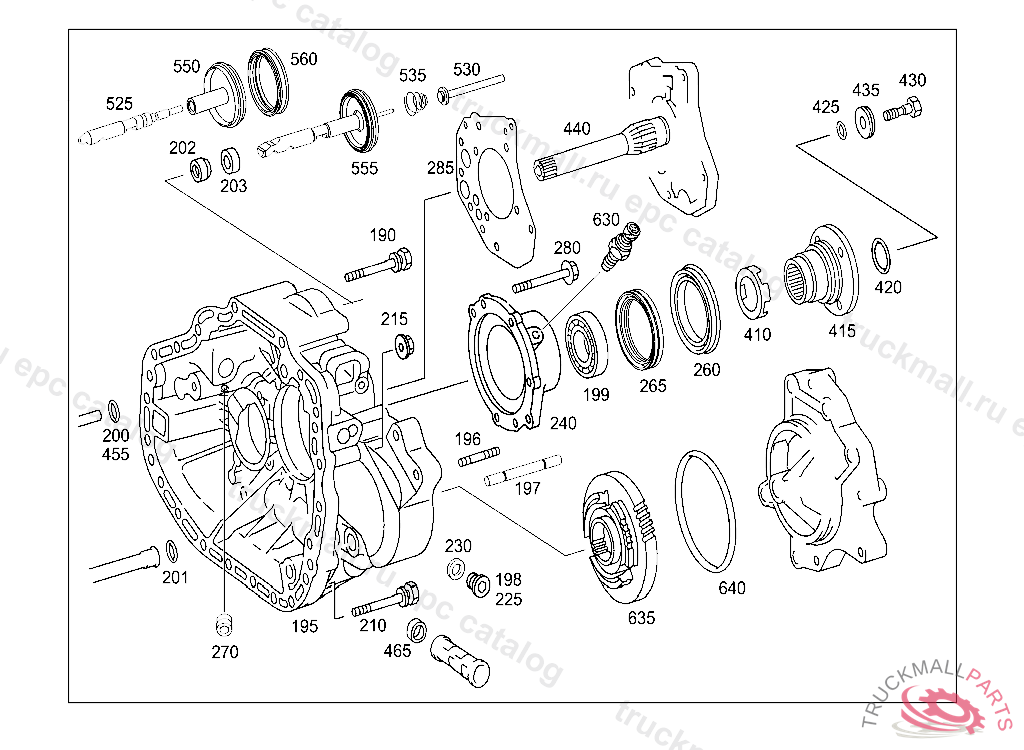

Поз.
Артикул
Описание
190
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M12X100
195
TRANSMISSION CASE REAR
195
TRANSMISSION CASE REAR
195
TRANSMISSION CASE REAR, Replaced By: A9302602311
196
THREADED PIN TRANSMISSION CASE
197
SCREW TRANSMISSION CASE
198
SCREW PLUG
198
SCREW PLUG , Replaced By: A2109970132
199
BALL BEARING REAR PLANETARY CARRIER
200
SEAL RING
201
SEAL RING SUCTION LINE
202
BOOT TRANSMISSION CASE
203
BUSHING TRANSMISSION CASE
210
SCREW TRANSMISSION CASE M 12X1.5X50
215
NUT BATTERY CABLE
225
SCREW PLUG
230
SEAL RING OIL FILLING AND OIL DRAIN
240
TRANSMISSION CASE COVER OUTPUT SHAFT,REAR
260
SEAL RING OUTSIDE
265
SEAL RING TRANSMISSION CASE REAR COVER
270
THREADED PIN TRANSMISSION CASE
280
SCREW TRANSMISSION CASE REAR COVER TO TRANSMISSSION CASE
280
SCREW , Replaced By: A9459901001
285
GASKET P.T.O. TO TRANSMISSION
410
PULSE STAR (PULSE PLATE),P.T.O.SHAFT SPEED
415
FLANGE MAIN SHAFT OUTPUT 200MM
415
FLANGE (OUTPUT FLANGE) 180MM
420
SEAL RING INTERMEDIATE FLANGE TO P.T.O.
420
SEAL RING COUPLING FLANGE TO TRANSMISSION
425
SEAL RING30X25 MM
430
HEXAGON HEAD BOLT FLANGE TO PLANETARY CARRIER M 20X95
430
SCREW FLANGE TO PLANETARY CARRIER M20X95, Replaced By: A9459900600
435
THRUST WASHER FLANGE TO PLANETARY CARRIER
440
OIL PUMP SHAFT
440
OIL PUMP SHAFT , Replaced By: A9472691110
455
SEAL RING OIL PIPE TO TRANSMISSION CASE
465
BUSHING OIL STRAINER
525
ROD PLANETARY GEAR CLUSTER SHIFT
525
ROD PLANETARY GEAR CLUSTER SHIFT GP R115 HV
525
ROD PLANETARY GEAR CLUSTER SHIFT
525
PULL ROD PLANETARY GEAR CLUSTER SHIFT, Replaced By: A9302670217
530
MAGNET PLANETARY GEAR CLUSTER SHIFT, Replaced By: A9302602289
535
SPRING PLANETARY GEAR CLUSTER SHIFT, Replaced By: A0089930801
535
SPRING PLANETARY GEAR CLUSTER SHIFT
550
PISTON
555
PULL ROD PISTON, Replaced By: A9452672117, +001A9302670618, +001A0005435785, +001A0089930801, +001A0249978347
555
ROD PISTON
560
SEAL RING PISTON
630
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 35MM
635
GEAR RETARDER
640
SEAL RING RETARDER
999
LINE SUCTION LINE
999
LINE DELIVERY LINE
