Поз.
Артикул
Описание

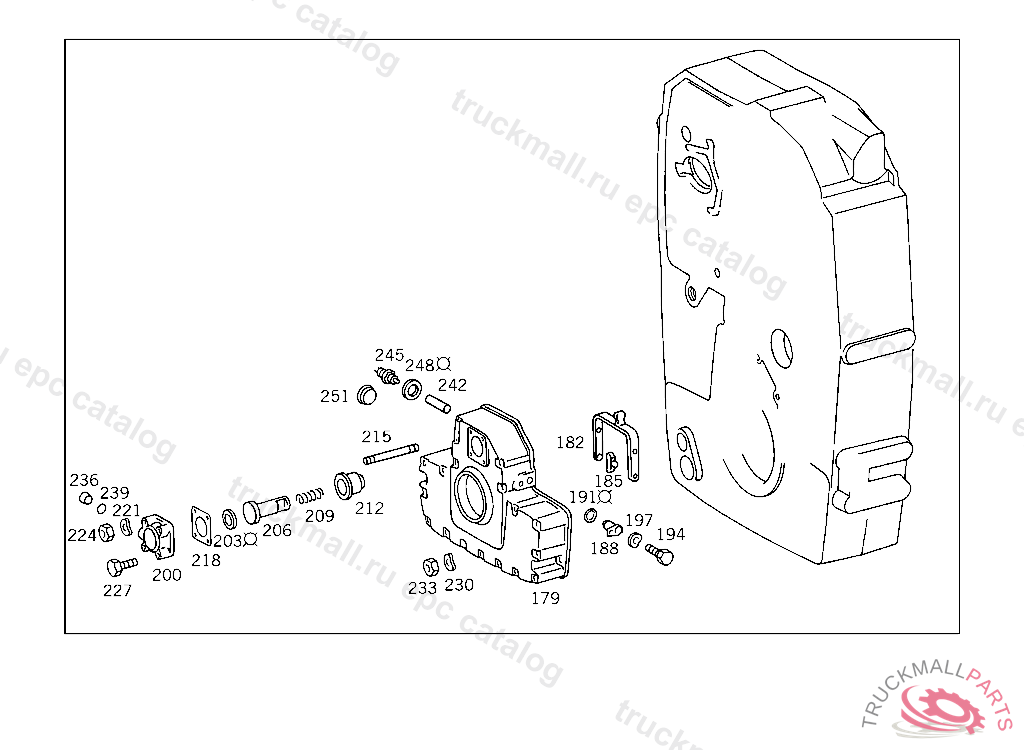

179
HOUSING TRANSFER CASE
179
CASE. HOUSING , Replaced By: A0002683601
182
SHIFTING FORK LONGITUDINAL DIFFERENTIAL LOCK CONTROL
185
SLIDE SHIFTING FORK TO SHIFTING ROD
185
SLIDE , Replaced By: A0002640449
185
SLIDE , Replaced By: A0002640249
188
PIN SHIFTING PARTS USED FOR FRONT WHEEL DRIVE AND DIFFERENTIAL LOCK
191
SEAL RING , Replaced By: A0109973448
191
SEAL RING , Replaced By: A0229970148
191
SEAL RING SHIFTING CYLINDER
194
SCREW , Replaced By: N304017006018
194
SCREW COVER PLATE TO COVER PLATE M 6 X 12
197
SPRING WASHER LICENSE PLATE TO BRACKET
200
COVER SHIFTING CYLINDER
200
COVER SHIFTING CYLINDER
203
SEAL RING
206
PISTON FRONT WHEEL DRIVE
209
SPRING FRONT WHEEL DRIVE
212
BUSHING LONGITUDINAL DIFFERENTIAL LOCK CONTROL
215
STUD BOLT SHIFT CASE TO TRANSMISSION
218
GASKET COVER TO TRANSMISSION CASE
218
GASKET , Replaced By: A0012642080
221
SPRING WASHER , Replaced By: N000137008212
221
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
224
NUT , Replaced By: N304032008006
224
NUT
227
SCREW , Replaced By: N304017008040
227
SCREW BRACKET TO SIDE MEMBER
227
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
227
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
230
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
230
SPRING WASHER , Replaced By: N000137008212
233
NUT , Replaced By: N304032008006
233
NUT
236
STRAINER
239
WASHER
242
INTERLOCK PIN GEAR CLUSTER INDICATION
245
SWITCH
245
SWITCH
245
SWITCH , Replaced By: A0015458214
245
SWITCH , Replaced By: A0015455709
248
SEAL RING VALVE TO VALVE,K 025179
251
SCREW PLUG TOP AND BOTTOM
999
PLUG TRANSMISSION CASE
