Главная
›
Mercedes
›
CAR
›
C 230 KOMPRESSOR
›
202.085
›
50 RADIATOR
›

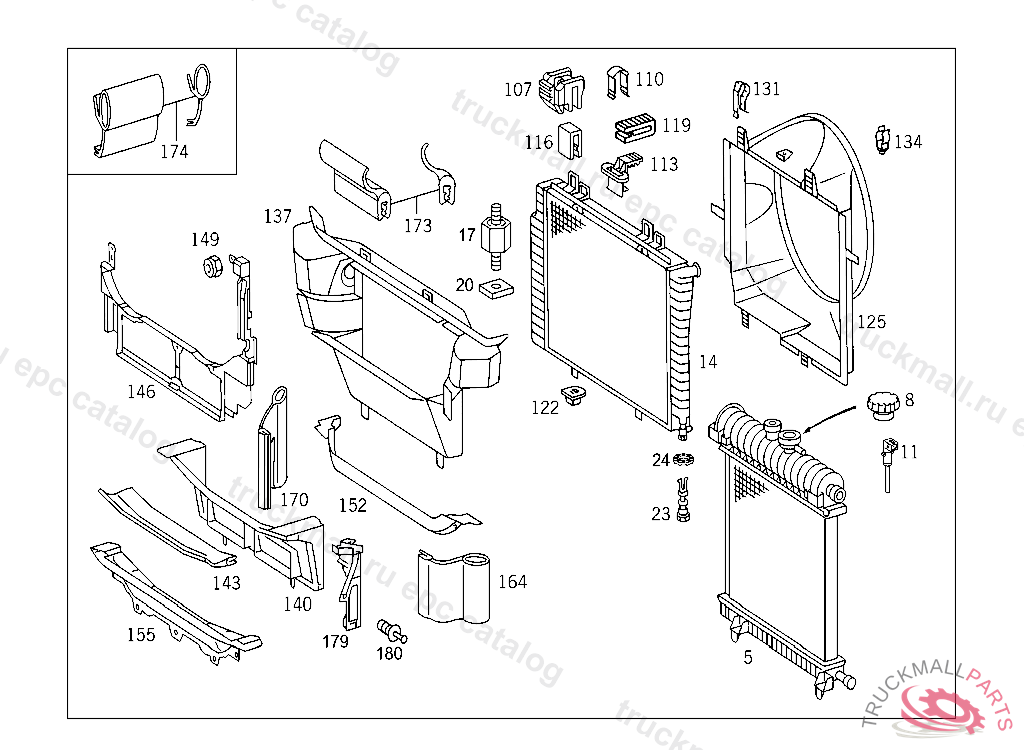

015 RADIATOR,MOUNTING,AND COVERING IL. 1
Mercedes A2025050073 - Замок
C 230 KOMPRESSOR 202.085
50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1
Поз.
Артикул
Описание
14
A2025005203
RADIATOR
23
A0005000185
SCREW WATER DRAIN
24
A0005010176
WASHER WATER DRAIN
107
A2105040146
CLAMP RADIATOR TO CENTRAL STIFFENING
110
A2025040246
CLAMP RADIATOR TO CENTRAL STIFFENING
113
A2025050073
LOCK , Replaced By: A2105040146, +002A2105040412
116
A2105040412
RUBBER MOUNT RADIATOR TO CENTRAL STIFFENING
119
A2025041112
RUBBER MOUNTING , Replaced By: A2105040412, +002A2105040146
122
A1405040212
RUBBER MOUNTING RADIATOR TO SUPPORT
125
A2025052855
FAN SHROUD
131
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
140
A2025050430
AIR BAFFLE
143
A2025052386
BOOT
179
A2025054388
COVERING LATERAL LEFT
179
A2025054288
COVERING LATERAL LEFT
180
A1239900092
RIVET
