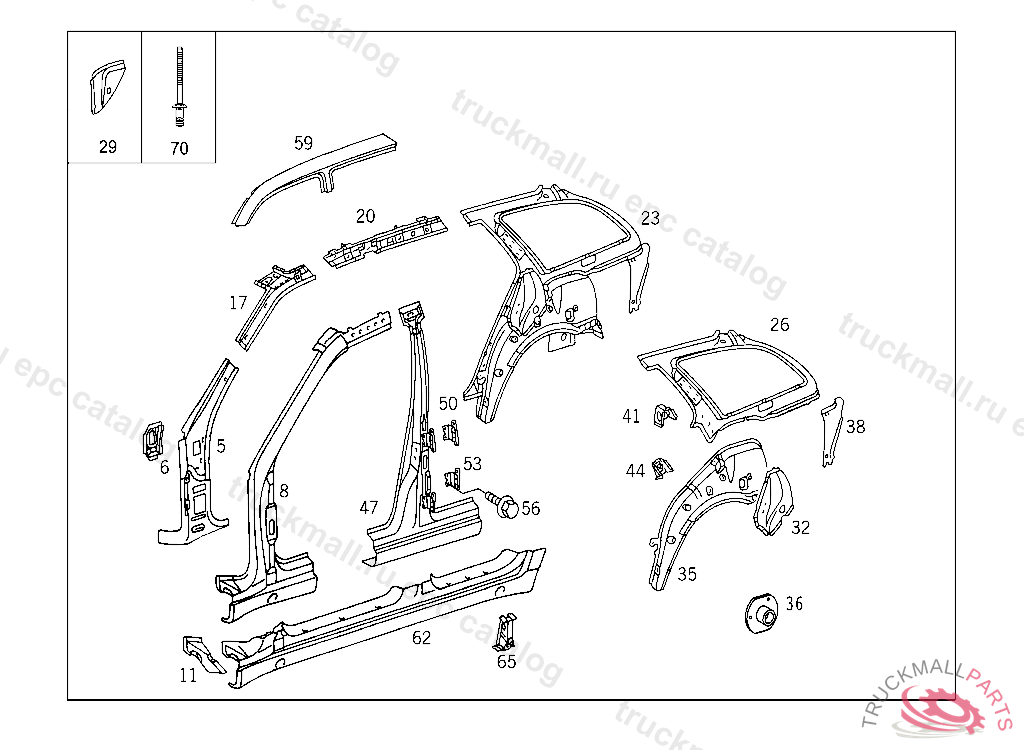

Поз.
Артикул
Описание
5
PILLAR A-PILLAR,INSIDE LEFT
5
PILLAR A-PILLAR,INSIDE RIGHT
6
CONSOLE LEFT
6
CONSOLE RIGHT
8
PANELLING A-PILLAR,RIGHT
8
PANELLING A-PILLAR,LEFT
11
COVERING LEFT
11
COVERING RIGHT
17
PILLAR A-PILLAR,TOP INSIDE LEFT
17
PILLAR A-PILLAR,TOP INSIDE RIGHT
20
ROOF RAIL LATERAL RIGHT
20
ROOF RAIL LATERAL LEFT
23
SIDE PANEL REAR INSIDE LEFT
23
SIDE PANEL REAR INSIDE RIGHT
23
SIDE PANEL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026303801
23
SIDE PANEL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026303701
26
SIDE PANEL REAR RIGHT,TOP
26
SIDE PANEL REAR LEFT,TOP
29
PILLAR REAR RIGHT BOTTOM
32
PILLAR C-PILLAR,OUTSIDE LEFT
32
PILLAR C-PILLAR,OUTSIDE RIGHT
32
PILLAR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.F 717070, Replaced By: A2026301513
32
PILLAR , Replaced By: A2026300913
35
WHEELHOUSE REAR OUTSIDE RIGHT
35
WHEELHOUSE REAR OUTSIDE LEFT
36
SHEET METAL NUT
38
PILLAR D-PILLAR,INSIDE LEFT
38
PILLAR D-PILLAR,INSIDE RIGHT
41
BRACKET REAR BACKREST STOP TO RIGHT WHEELHOUSE (TOWARDS FRONT)
41
BRACKET REAR BACKREST STOP TO LEFT WHEELHOUSE (TOWARDS FRONT)
44
BRACKET REAR BACKREST STOP TO LEFT WHEELHOUSE (TOWARDS REAR)
44
BRACKET REAR BACKREST STOP TO RIGHT WHEELHOUSE (TOWARDS REAR)
47
PILLAR B-PILLAR ON THE LEFT, A 234551 F 200798
47
PILLAR B-PILLAR ON THE RIGHT
50
HINGE REAR DOOR,TOP RIGHT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
50
HINGE REAR DOOR,TOP LEFT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
53
HINGE REAR DOOR,BOTTOM RIGHT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
53
HINGE REAR DOOR,BOTTOM LEFT, IF NECESSARY, THE CUTOUT IN THE B-PILLAR MUST BE REWORKED
56
SCREW HINGE TO CENTRAL PILLAR
59
ROOF RAIL OUTSIDE RIGHT
59
ROOF RAIL OUTSIDE LEFT
62
SIDE MEMBER RIGHT
62
SIDE MEMBER LEFT
65
CONSOLE LEFT,TO JACK
65
CONSOLE RIGHT,TO JACK
