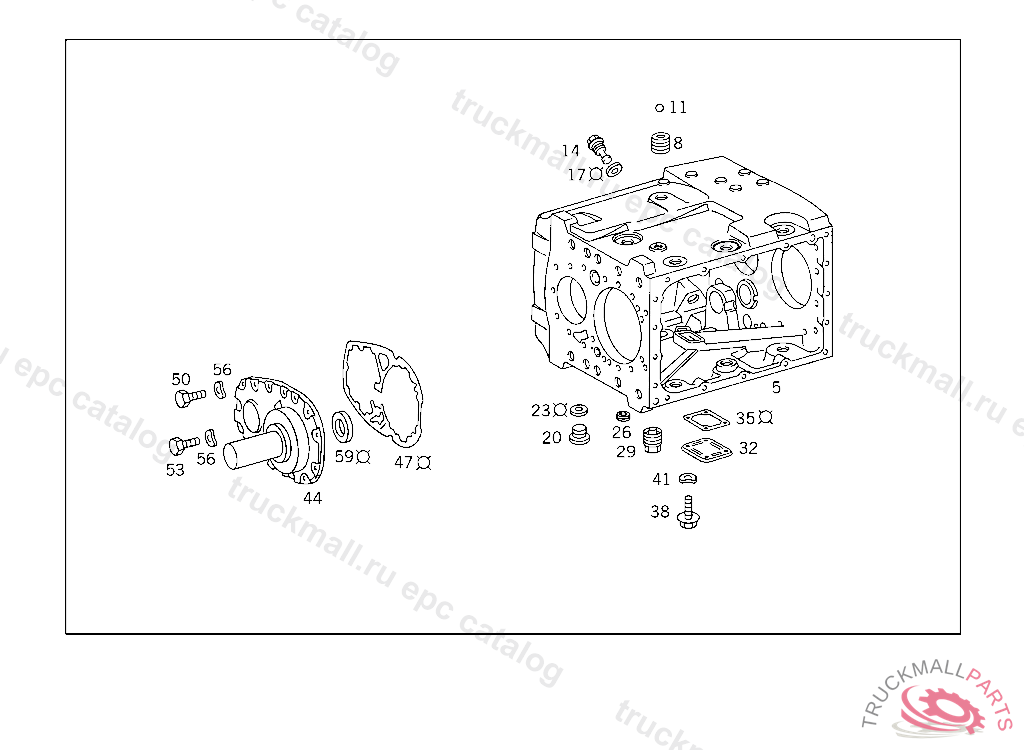

Поз.
Артикул
Описание
5
TRANSMISSION CASE ,110286
5
TRANSMISSION CASE ,019226
5
TRANSMISSION CASE ,099999, Replaced By: A0002613301, +001A0009979930
5
TRANSMISSION CASE , Replaced By: A0002613301
5
TRANSMISSION CASE , Replaced By: A0002615001
5
TRANSMISSION CASE , Replaced By: A0002616901
8
PLUG , Replaced By: A0009973435
8
PLUG , Replaced By: A0009977535
8
PLUG , Replaced By: A3529970032
8
COVER , Replaced By: A0009977535
8
SCREW PLUG BELL HOUSING
14
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
14
SCREW PLUG ,019226
17
SEALING RING. SEAL RING OIL DRAIN
20
SCREW PLUG
23
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
26
SCREW PLUG TOP AND BOTTOM
29
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
32
BEARING CAP BOTTOM
35
GASKET BOTTOM
35
GASKET , Replaced By: A0002615880
38
SCREW , Replaced By: N304017008016
38
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
SPRING WASHER , Replaced By: N000137008212
41
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
44
COVERING , Replaced By: A0002624029
44
COVERING ADDITIONAL GEARBOX CASE
47
GASKET TRANSMISSION COVER
47
GASKET , Replaced By: A0002622380
50
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
53
SCREW CLAMP TO EXHAUST PIPE
53
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
SPRING WASHER STEERING COLUMN BRACKET TO CAB
59
SEAL RING FRONT DRIVE SHAFT, 003767
59
SEAL RING FRONT DRIVE SHAFT, 003767
59
SEAL RING , Replaced By: A0089973847
59
SEAL RING , Replaced By: A0089973847
59
SEAL RING , Replaced By: A0089973847
