Mercedes A0009905400 - Болт

C 350 4MATIC 204.388

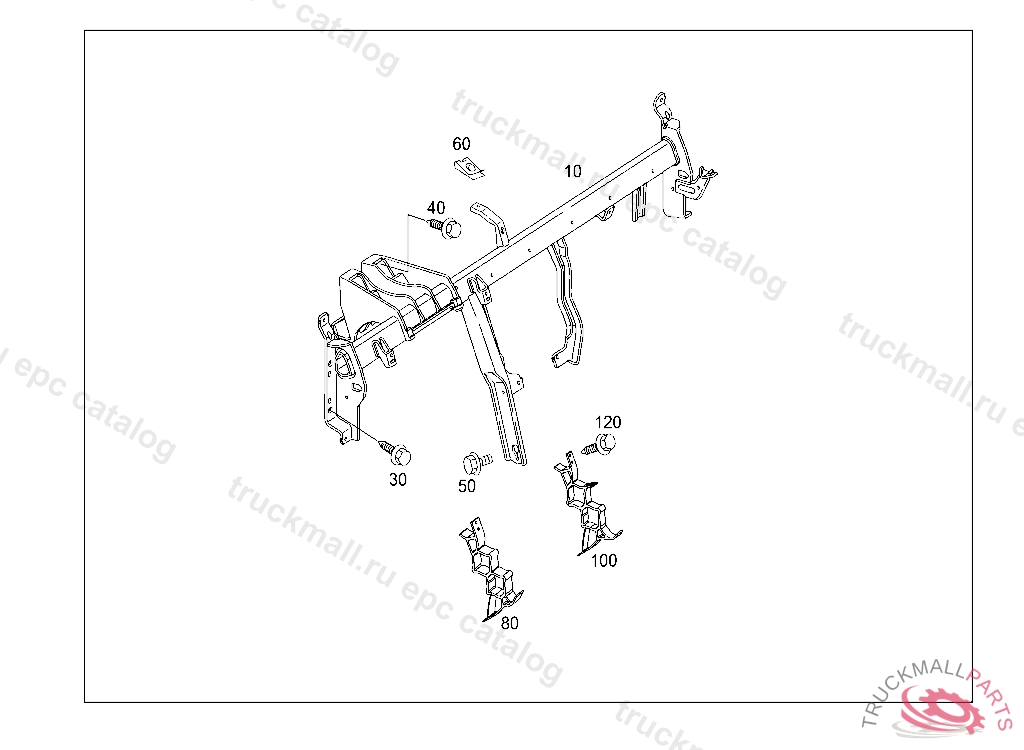

62 FRONT END, FRONT WALL - 120 CROSS MEMBER BELOW INSTRUMENT PANEL

Поз.
Артикул
Описание
10
A2046800855
CROSS MEMBER
10
A2046802555
CROSS MEMBER , A 77234720120810 F 91080020120415 R 21664120120111
30
A0009905400
BOLT ON SIDE MEMBER FRONT BOTTOM M8X22.5
40
N000000001139
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
50
A0209900001
BOLT W FLANGE CROSS MEMBER TO TUNNEL M10X21
60
A0039948445
FUSE AIRBAG TO CROSS MEMBER 4.2 MM
60
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
80
A2076280724
STRUT DRIVER-SIDE, OUTER, A 30499920090616 L 03314520090531 V 00128520090531 F 35983520090601 R 08651820090528
100
A2046280524
STRUT DRIVER-SIDE, INNER
120
A2119840429
BOLT FRONT PASSENGER AIRBAG TO INSTRUMENTPANEL M5X16
