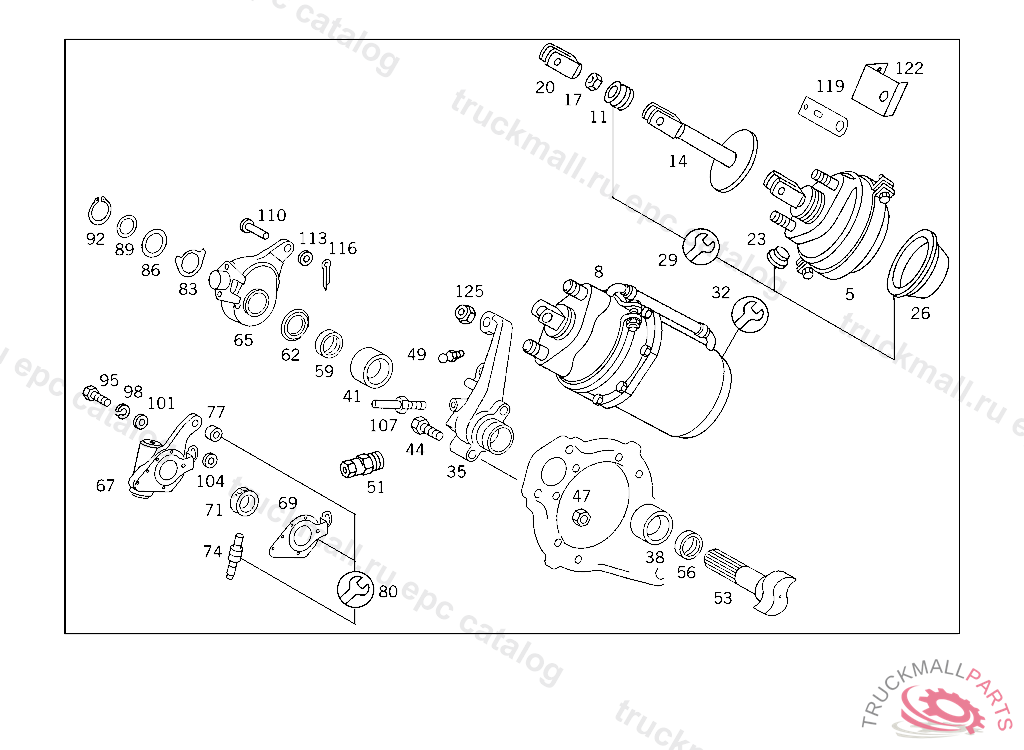

Поз.
Артикул
Описание
5
BRAKE CYLINDER RIGHT GRAU,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER LEFT BOSCH,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER RIGHT KNORR,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER LEFT WABCO,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER RIGHT WABCO,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER LEFT GRAU,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER LEFT KNORR,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
5
BRAKE CYLINDER RIGHT BOSCH,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
11
CUPGRAU
11
CUPWABCO
11
CUPKNORR
23
PLUGTO 009 420 22 18,008 420 20 18
26
DIAPHRAGMTO 008 420 61 18,009 420 22 18
26
DIAPHRAGMTO 008 420 60 18,62 18,KNORR
26
DIAPHRAGM , Replaced By: A0004314128
29
REPAIR KITKNORR
35
BEARING BRACKET LEFT
35
BEARING BRACKET , Replaced By: A3894210906
35
BRAKE ANCHOR RIGHT
38
BUSHING OUTSIDE
41
BUSHING INSIDE
44
SCREW BEARING BRACKET TO BRAKE ANCHOR
47
NUT , Replaced By: A0009905750
47
NUT BEARING BRACKET TO BRAKE ANCHOR
49
GREASE NIPPLE INTERMEDIATE LEVER
51
CONNECTOR LINE CONNECTION M 8X1
51
CONNECTOR BEARING BRACKET
53
BRAKE CAMSHAFT , Replaced By: A6234210136
53
BRAKE CAMSHAFT , Replaced By: A6234210236
53
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
53
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
56
SEAL RING OUTSIDE BEARING BRACKET
56
SEAL RING OUTSIDE BEARING BRACKET
56
SEAL RING OUTSIDE BEARING BRACKET
59
SEAL RING , Replaced By: A0149972247
59
SEAL RING , Replaced By: A0129974147
59
SEAL RING INSIDE BEARING BRACKET
59
SEAL RING INSIDE BEARING BRACKET
59
SEAL RING INSIDE BEARING BRACKET
62
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
67
ADJUSTER SLACK ADJUSTER "SAB"
69
CONTROL UNIT
71
WORM GEAR"SAB"
74
WORM SCREW"SAB"
77
BUSHING
80
REPAIR KIT SLACK ADJUSTER "SAB"
83
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
86
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
86
SPACER WASHER BRAKE SHAFT TO BEARING BRACKET 4,00MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
89
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
92
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
95
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
98
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
101
WASHER EXHAUST MUFFLER TO STRAP
101
WASHER , Replaced By: N000125008443
104
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
104
FITTED WASHER SLACK ADJUSTER TO BEARING BRACKET
110
PIN WHEEL CYLINDER TO SLACK ADJUSTER
110
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
113
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
116
COTTER PIN STRAP TO SUPPORT
119
BRACKET LINE TO REAR AXLE, NOT USED
125
NUT ,4 179002-4 369654
125
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
125
NUT COMBINATION CYLINDER TO BEARING BRACKET
