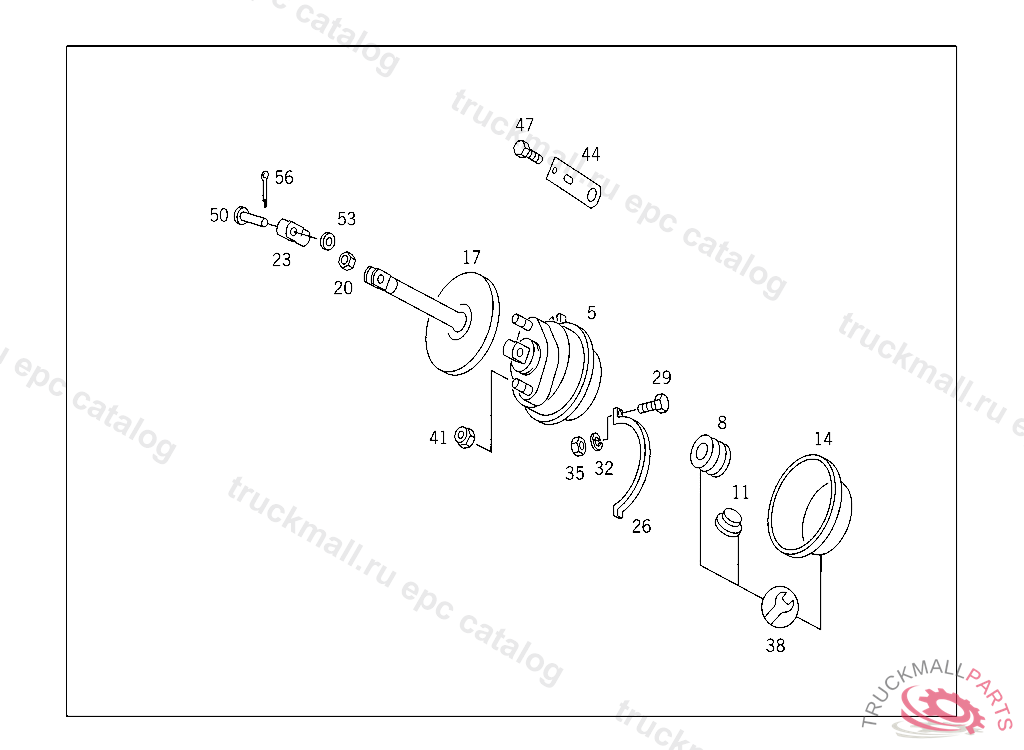

Поз.
Артикул
Описание
5
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
5
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) BOSCH
5
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
5
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) GRAU
8
CUPKNORR
8
CUPGRAU
8
CUPBOSCH/WABCO
8
CUPTO 007 420 68 18,WABCO
11
PLUGTO 694 420 71 18/72 18
11
PLUGTO 009 420 22 18,008 420 20 18
11
PLUGBOSCH
14
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
14
DIAPHRAGM , Replaced By: A0004314128
14
DIAPHRAGMTO 008 420 61 18,009 420 22 18
14
DIAPHRAGMTO 008 420 95 18,008 420 97 18,BOSCH
17
PISTONTO 006 420 94 18,BOSCH
20
NUT RELEASE BEARING LUBRICATION
23
YOKE BRAKE CYLINDER
29
SCREW SHOCK ABSORBER TO CONSOLE
29
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
29
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
29
SCREW BRACKET TO SIDE MEMBER
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
35
NUT
41
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
41
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
BRACKET LINE TO REAR AXLE, NOT USED
47
SCREW , Replaced By: N910106016004
47
SCREW UPPER KINGPIN TO HOUSING M 16X35
50
PIN WHEEL CYLINDER TO SLACK ADJUSTER
50
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
53
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
56
COTTER PIN STRAP TO SUPPORT
