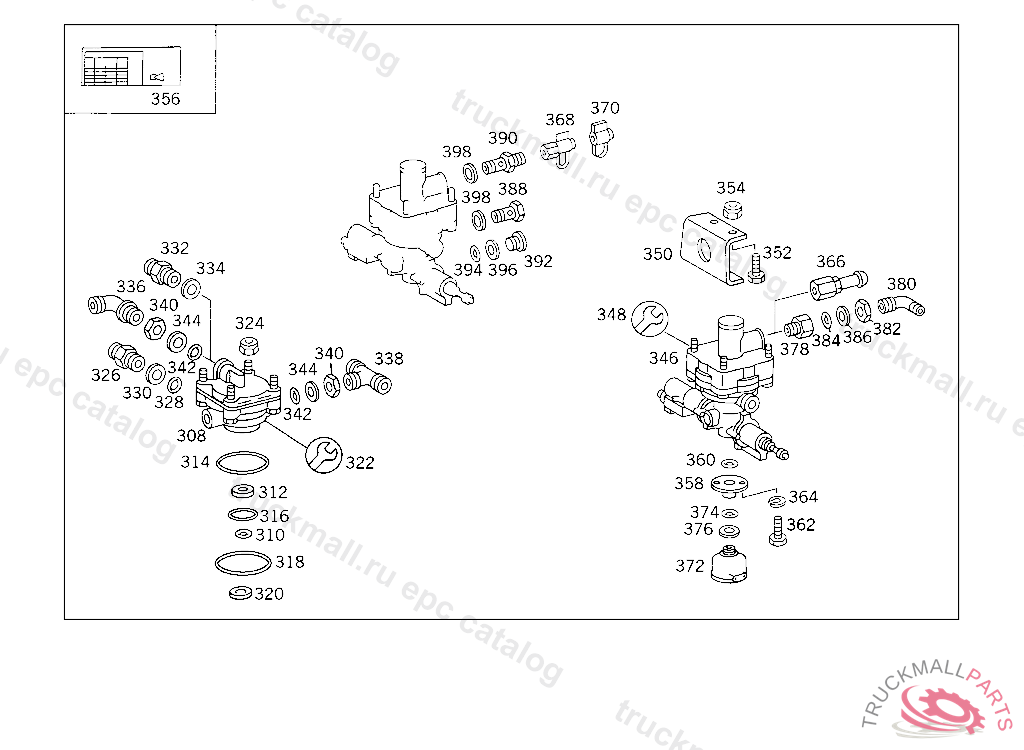

Поз.
Артикул
Описание
308
VALVE REAR AXLES I AND II BOSCH
308
VALVE (RELAY VALVE) KNORR
308
VALVE (RELAY VALVE) WABCO
308
VALVE FRONT AXLES I AND II "WABCO"
308
VALVE (RELAY VALVE) BOSCH
308
VALVE (RELAY VALVE) GRAU
310
SEAL RING22.3X2.4 MM,GRAU
312
VALVE SEATWABCO
312
VALVE SEATGRAU
314
SEAL RINGTO 000 429 28 95,GRAU
314
SEAL RING74.20X5.70 MM,WABCO
316
SEAL RING28X2 MM,GRAU
316
SEAL RING42.52X2.62 MM,WABCO
318
SEAL RING82.22X2.62 MM,WABCO
318
SEAL RING86X2 MM,GRAU
320
GASKET34X2X6 MM,GRAU
322
REPAIR KIT RELAY VALVE WABCO
322
VALVEBOSCH
322
REPAIR KITWABCO
324
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
324
NUT , Replaced By: N913004008001
326
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
326
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
328
O-RING CHECK VALVE TO AIR RESERVOIR
330
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
330
THRUST RING CHECK VALVE TO AIR RESERVOIR
332
FITTING RELAY VALVE,CONNECTION: "40",5 359430
334
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
336
ELBOW FITTING
338
T-FITTING RELAY VALVE,CONNECTION: "20"
340
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
342
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
344
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
346
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
346
BRAKE PRESSURE REGULATOR ,5 359465 IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
346
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE WABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
346
BRAKE PRESSURE REGULATOR , Replaced By: A0014318412, +004A0009902082
346
BRAKE PRESSURE REGULATORWABCO
348
REPAIR KIT BRAKE POWER REGULATOR
350
BRACKET BRAKE POWER REGULATOR
352
SCREW BRACKET TO CROSS CONNECTION STRUT
352
SCREW SUPPORT TO FENDER
352
SCREW , Replaced By: N304017008018
352
SCREW , Replaced By: N304017008034
354
NUT , Replaced By: N913004008001
354
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
356
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
356
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
356
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
356
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
356
GUIDE SIGN AUTOMATIC LOAD-DEPENDING BRAKE
358
ADAPTER FITTING BRAKE POWER REGULATOR
360
SEALING CORD BRAKE POWER REGULATOR
362
SCREW PUMP TO BRACKET
362
SCREW , Replaced By: N304017006016
364
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
366
TEST CONNECTION
368
TEST CONNECTION
368
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
368
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
368
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
370
PLUG
372
MUFFLER TRAILER CONTROL VALVE
372
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
372
MUFFLER , Replaced By: A0004302370
374
O-RING CHECK VALVE TO AIR RESERVOIR
376
THRUST RING CHECK VALVE TO AIR RESERVOIR
376
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
378
FITTING BRAKE PRESSURE REGULATOR CONNECTION, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
380
ELBOW FITTING TWO-WAY VALVE,CONNECTION "1.2"
382
NUT CHECK VALVE TO AIR RESERVOIR
384
O-RING CHECK VALVE TO AIR RESERVOIR
386
THRUST RING CHECK VALVE TO AIR RESERVOIR
386
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
388
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
390
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
392
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
394
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
396
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
398
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
REPAIR KITKNORR 010 420 73 18
999
REPAIR KIT , Replaced By: A0024209524, +002A0024209424
999
REPAIR KIT , Replaced By: A0024209824, +002A0024209424
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGM , Replaced By: A0004314128
999
DIAPHRAGMBOSCH, Replaced By: A0004314028
999
RESERVOIR , Replaced By: A0014327501
999
ELBOW FITTING , Replaced By: A0019904371
999
VALVE , Replaced By: A0044293144
999
REPAIR KIT , Replaced By: A0044201724, +002A0044201324
999
REPAIR KIT DIAPHRAGM PART KNORR, Replaced By: A0024209524
999
VALVE , Replaced By: A0044293144
999
VALVE , Replaced By: A0044293244
999
REPAIR KIT , Replaced By: A0024301560
999
VALVE , Replaced By: A0044293244
999
VALVE , Replaced By: A0044293144
999
FITTING , Replaced By: A0029905971
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0179979048
999
BRACKET , Replaced By: A6514310240
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR, Replaced By: A6554900942
999
STRAP , Replaced By: A6214900242
999
BRACKET , Replaced By: A6164290140
999
BRACKET , Replaced By: A3604293140
999
STRAP , Replaced By: A6204300040
999
T-FITTING ,5 936365, Replaced By: A0029902570
999
FITTING , Replaced By: A0029979572
999
FITTING , Replaced By: A0029971172
