Mercedes N071412008300 - Ниппель

OH 1625 685.473

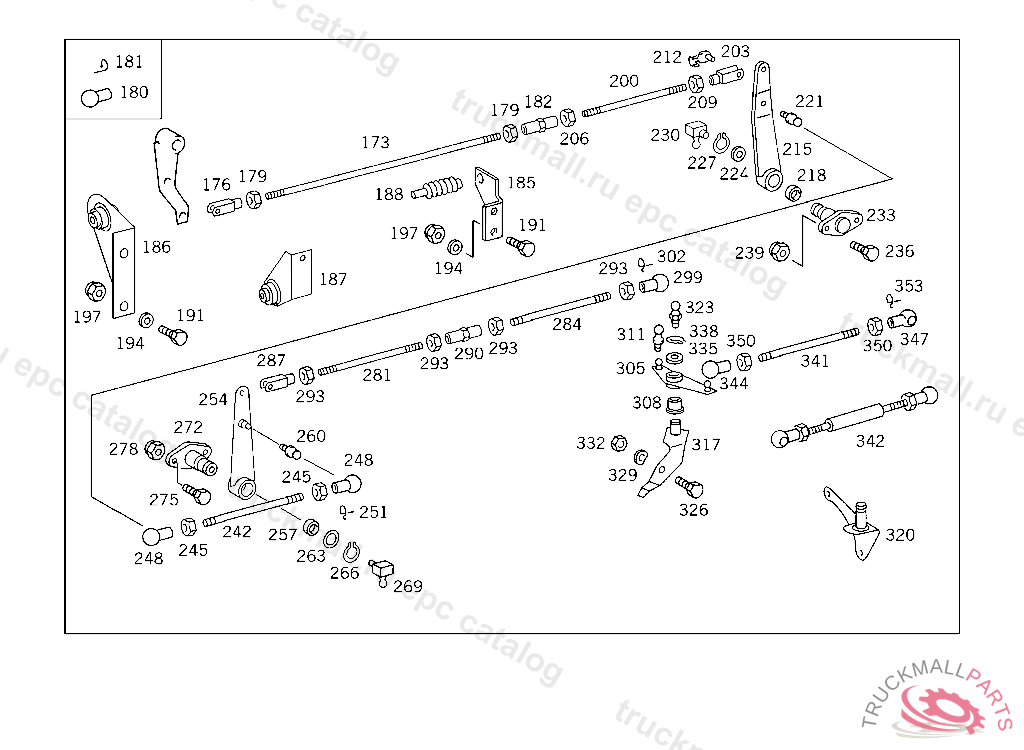

30 CONTROL - 060 ACCELERATOR PEDAL CONTROL IL. 3

Поз.
Артикул
Описание
173
N900331006737
PULL ROD FROM CONTROL REVERSING LEVER I TO TURNBUCKLE 6X4800X50/50
176
N071752006001
YOKE ACCELERATOR CONTROL
179
N000934006006
NUT
180
N071805010202
BALL SOCKET AT CONTROL LEVER
181
N071805010400
SECURING CLIP. CIRCLIP
182
A3219960034
NUT FRONT SHIFTING ROD
200
N900331006744
PULL ROD FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER 6X1870X50RE/50LI
203
N071752006001
YOKE ACCELERATOR CONTROL
206
N000934006012
NUT L.H. THREAD
209
N000934006006
NUT
212
N918001006000
PIN OPERATING ROD TO BRACKET
305
A3823007025
LEVER CONTROL LEVER
308
A3023010150
BUSHING MANUAL CONTROL,D 249954
311
N071803010206
BALL PIVOT CONTROL SHAFT
311
A3449917515
BALL PIVOT
323
A3459977288
GREASE NIPPLE
323
N071412008300
GREASE NIPPLE
