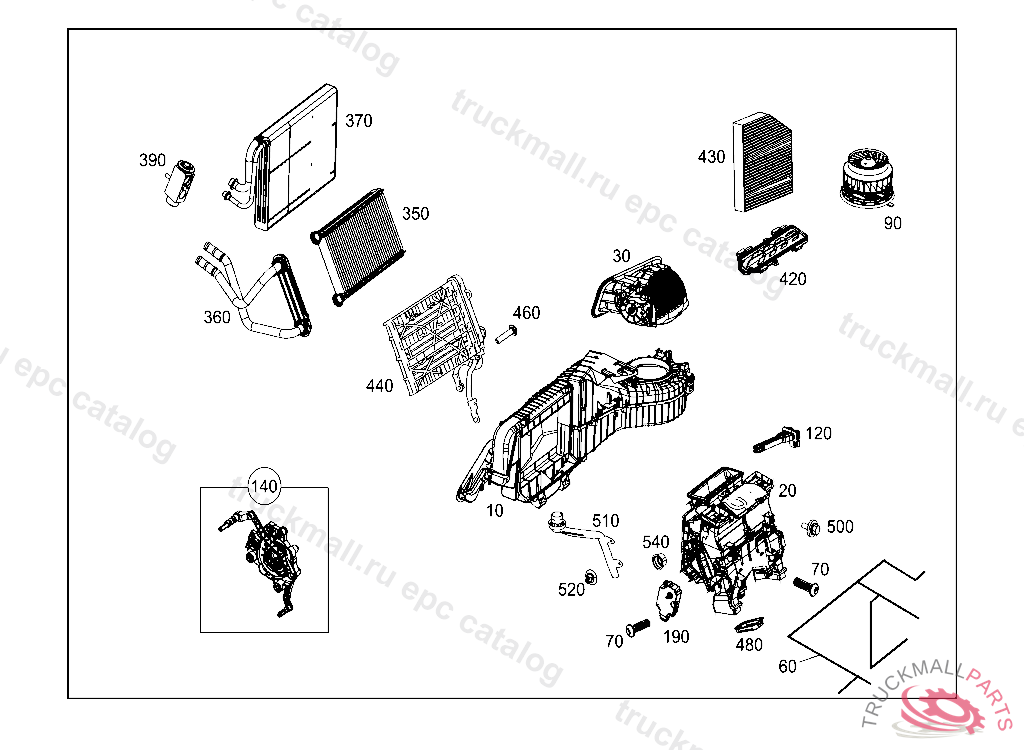

Поз.
Артикул
Описание
10
EVAPORATOR HOUSING UPPER AND LOWER HALVES
10
EVAPORATOR HOUSING UPPER AND LOWER HALVES
20
DISTRIBUTOR HOUSING AIR DISTRIBUTOR
20
DISTRIBUTOR HOUSING AIR DISTRIBUTOR
20
DISTRIBUTOR HOUSING AIR DISTRIBUTOR
20
DISTRIBUTOR HOUSING AIR DISTRIBUTOR
30
HOUSING UPPER PART FRESH AIR/CIRCULATING AIR
30
HOUSING UPPER PART FRESH AIR/CIRCULATING AIR
60
ELECTRICAL WIRING HARNESS
60
ELECTRICAL WIRING HARNESS
60
ELECTRICAL WIRING HARNESS
60
ELECTRICAL WIRING HARNESS
70
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
90
BLOWER
90
BLOWER
120
TEMPERATURE SENSOR COLD AIR
140
TS OPERATING LEVER PARTS KIT
140
TS OPERATING LEVER PARTS KIT
140
TS OPERATING LEVER PARTS KIT
140
TS OPERATING LEVER PARTS KIT
190
STEPPER MOTOR AIR MIXING FLAP CONTROL, Replaced By: A1698200442
350
HEAT EXCHANGER
360
TS CAP FOR HEAT EXCHANGER FOR HEAT EXCHANGER
360
TS CAP FOR HEAT EXCHANGER FOR HEAT EXCHANGER
370
EVAPORATOR
370
EVAPORATOR
390
EXPANSION VALVE
420
HOUSING COVER ACTIVATED CHARCOAL FILTER
430
FINE PARTICLE FILTER
440
HEAT BOOSTER WITH CABLE
440
HEAT BOOSTER WITH CABLE
460
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
480
HOUSING COVER AIR OUTLET
500
BOLT EVAPORATOR HOUSING TO CROSSMEMBER
510
CONDENSATION HOSE CONDENSED WATER DRAIN
520
SPREADER NUT SOUNDPROOFING AT TUNNEL, FRONT
540
COVER CAP AT AIR CONDITIONER CASE
