54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
001 FRAME MTD.CABLE HARN IL.2
Mercedes N000125008443 - ШАЙБА
TRUCK N/N 699.101

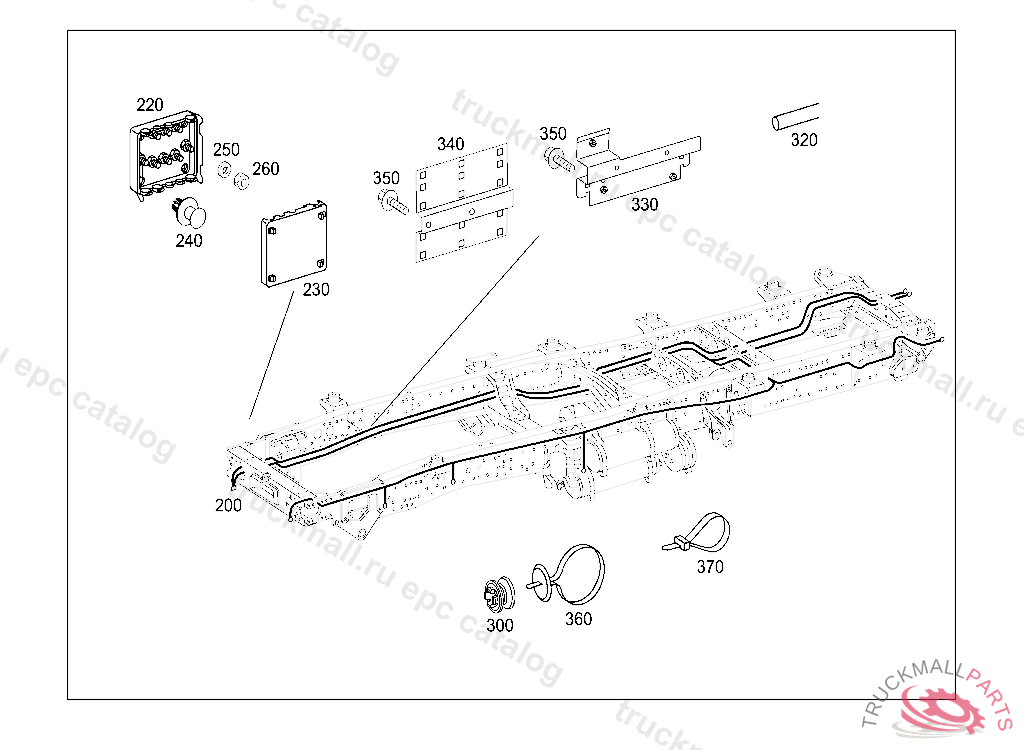

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 FRAME MTD.CABLE HARN IL.2
Поз.
Артикул
Описание
200
A0835403605
ELECTRICAL WIRING HARNESS FRAME
220
A0365454328
HOUSING POS.
230
A0015452603
CAP POS.
240
A2019900292
RIVET BUSHING AND LEVER TO CAB
250
N000125008445
WASHER PUMP TO CONSOLE
250
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
260
N304035008001
NUT
300
A9419900840
WASHER38 MM
300
A9419900040
WASHER18 MM
320
A0008210397
HOSE (PROTECTIVE HOSE), Replaced By: A0008210497
320
A0008212997
HOSE (PROTECTIVE HOSE) 70X500MM
330
A0835400640
BRACKET CABLE HARNESS AT ENGINE
340
A0835421240
BRACKET CABLE HARNESS AT ENGINE
350
N910105008004
SCREW BRACKET MOUNTING M6 X 20
360
A0069971190
CABLE TIE. LOOM TIE378 X 7.6 MM
370
A0019978490
LOOM TIE LINE MOUNTING
370
A0029975890
CABLE TIE LINE MOUNTING 375X8.4MM
370
A0019978390
LOOM TIE LINE MOUNTING 280 MM
370
A0029972490
CABLE TIE310X5MM
