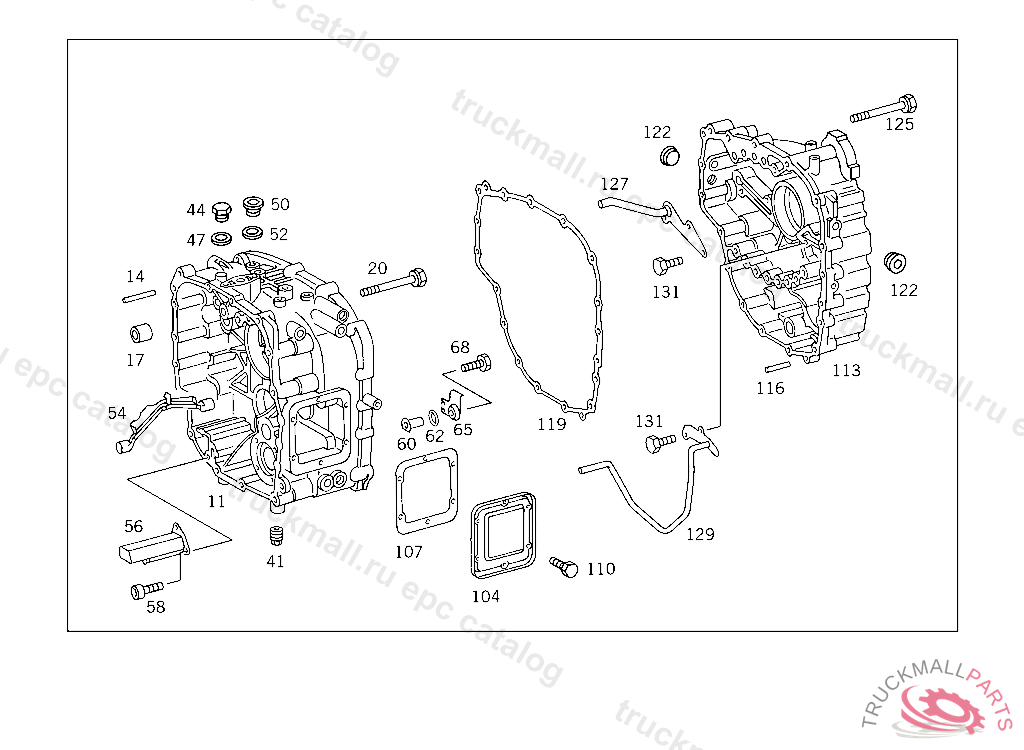

Поз.
Артикул
Описание
11
TRANSMISSION CASE"II",K 586367
11
TRANSMISSION CASE"II",K 586368
11
TRANSMISSION CASE , Replaced By: A0002610903
11
TRANSMISSION CASE , Replaced By: A0002614401
14
PIN12X60 MM
17
GUIDE TUBE SHIFTING RAIL
20
SCREW TRANSMISSION CASE TO TRANSMISSION CASE M 8X70
20
SCREW , Replaced By: A0009906201
41
SCREW PLUG FRONT AXLE I
44
SCREW PLUGROCKINGER,TYP 59 U150
44
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
47
SEAL RING , NOT USED
50
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
50
SCREW PLUG HOUSING,BOTTOM, Replaced By: N000908018011
52
SEAL RING ON OIL PUMP HOUSING
56
OIL BAFFLE TRANSMISSION CASE,INSIDE
58
SCREW SOLENOID VALVE TO VALVE
60
OIL PIPE REAR
62
SEAL RING BELL HOUSING 9,3X2,4 MM,INCLUDED IN RANGE OF DELIVERY OF TRANSMISSION
65
OIL BAFFLE REAR
68
SCREW COVER PLATE TO COVER PLATE M 6 X 12
104
COVER , Replaced By: A0002648310
104
COVER TRANSMISSION CASE,SIDE, UP TO IDENT NO. 207851 FROM IDENT-NO. 207852 SEE MICROFICHE MODEL 712.0
107
GASKET OIL PAN TO TRANSMISSION
110
SCREW BRACKET TO SIDE MEMBER
113
TRANSMISSION CASE ADDITIONAL GEAR CLUSTER
113
TRANSMISSION CASE ADDITIONAL GEAR CLUSTER, Replaced By: A0002610402
113
TRANSMISSION CASE , Replaced By: A0022615401
113
TRANSMISSION CASE , Replaced By: A0002610202
116
PIN12X60 MM
119
GASKET ADDITIONAL GEARBOX TO TRANSMISSION
122
SCREW PLUG OIL DRAIN, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
125
SCREW ADDITIONAL GEARBOX TO TRANSMISSION M 8X60
125
SCREW ADDITIONAL GEARBOX TO TRANSMISSION M 8X45
129
OIL PIPE ADDITIONAL GEAR CLUSTER
131
SCREW PUMP TO BRACKET
