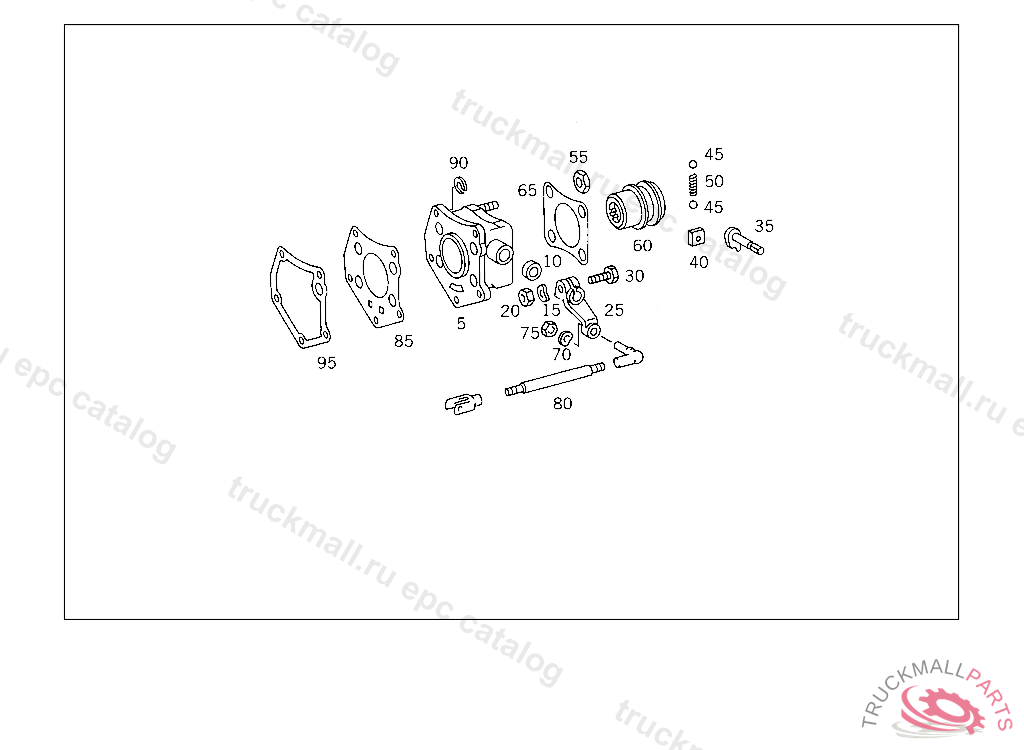

Поз.
Артикул
Описание
5
P.T.O.N 32/1C
10
SEAL RING
15
NUT
20
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
20
SPRING WASHER , Replaced By: N000137008212
25
LEVER SHIFTING SHAFT
30
SCREW SUPPORT TO FENDER
30
SCREW , Replaced By: N304017008018
35
LEVER (SHIFTING SHAFT)
40
FOLLOWER (SHIFTING SHAFT)
45
BALL
50
SPRING
55
NUT
60
DRIVE DUMPER PUMP
65
GASKET CONNECTION FLANGE
70
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
70
SPRING WASHER , Replaced By: N000137008212
75
NUT
80
ROD
85
GASKET
90
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
GASKET P.T.O. TO TRANSMISSION
95
GASKET , Replaced By: A3522611680
95
GASKET , Replaced By: A3522611980
95
GASKET COVER TO CASE REAR COVER
999
COVER AT TRANSMISSION CASE REAR COVER,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
