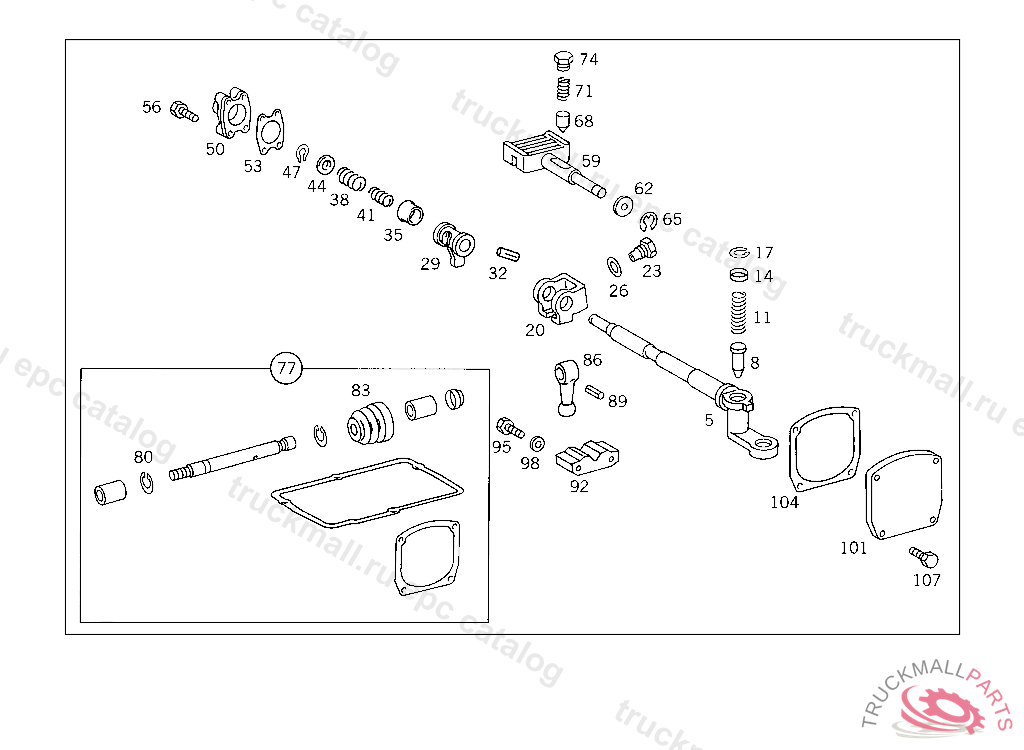

Поз.
Артикул
Описание
5
SHIFTING ROD (SHIFTING SHAFT)
8
PIN GEAR INTERLOCK
11
SPRING GEAR INTERLOCK
14
WASHER GEAR INTERLOCK
17
LOCK RING GEAR INTERLOCK
20
PAWL SHIFTING SHAFT
23
GUIDE PIVOT
26
SPRING WASHER BRACKET TO TIMING CASE
29
SHIFTING FINGER SHIFTING SHAFT
32
CLAMPING PIN SHIFTING FINGER TO SHIFTING ROD
35
BUSHING
38
SPRING AT SHIFTING ROD
41
SPRING AT SHIFTING ROD
44
WASHER
44
SPACER WASHER SELECTOR AND SHIFTING ROD
47
LOCK
50
COVER , Replaced By: A6692610133, +001N007603018101, +001N007604018101
50
COVER SELECTOR AND SHIFTING ROD
53
GASKET , Replaced By: A3852613580
53
GASKET COVER TO TRANSMISSION CASE TOP COVER
56
HEXAGON HEAD BOLT COVER TO TRANSMISSION CASE FRONT PART M8X40,0041830
56
SCREW COVER TO TRANSMISSION CASE TOP COVER
68
PIN SHIFTING TRAVEL LIMITATION,596296
71
SPRING REVERSE SPEED LOCK-OUT
74
SCREW PLUG
77
SHIFTING ROD , Replaced By: A6742600333
77
SHIFTING ROD PARTS KIT,624769
80
SNAP RING ,950252
83
BOOT SHIFTING ROD
83
BOOT SHIFTING ROD,283644
86
SELECTOR LEVER SHIFTING ROD
89
CLAMPING PIN SHIFTING FINGER TO SHIFTING ROD
92
SHIFTING SEGMENT GEAR INTERLOCK
95
SCREW SHIFTING CYLINDER TO CASE
98
WASHER EXHAUST MUFFLER TO STRAP
98
WASHER , Replaced By: N000125008443
101
COVER SELECTOR AND SHIFTING ROD
104
GASKET COVER TO TRANSMISSION CASE TOP COVER
107
SCREW PIPE CLAMP
107
SCREW , Replaced By: N304017008021
999
PAWL , Replaced By: A6692680216, +001A6692680233
999
SHIFTING FINGER , Replaced By: A6692680233, +001A6692680216
