Mercedes A1409900014 - Болт

E 250 TURBODIESEL 210.015 TO MODELLJAHR CODE 809

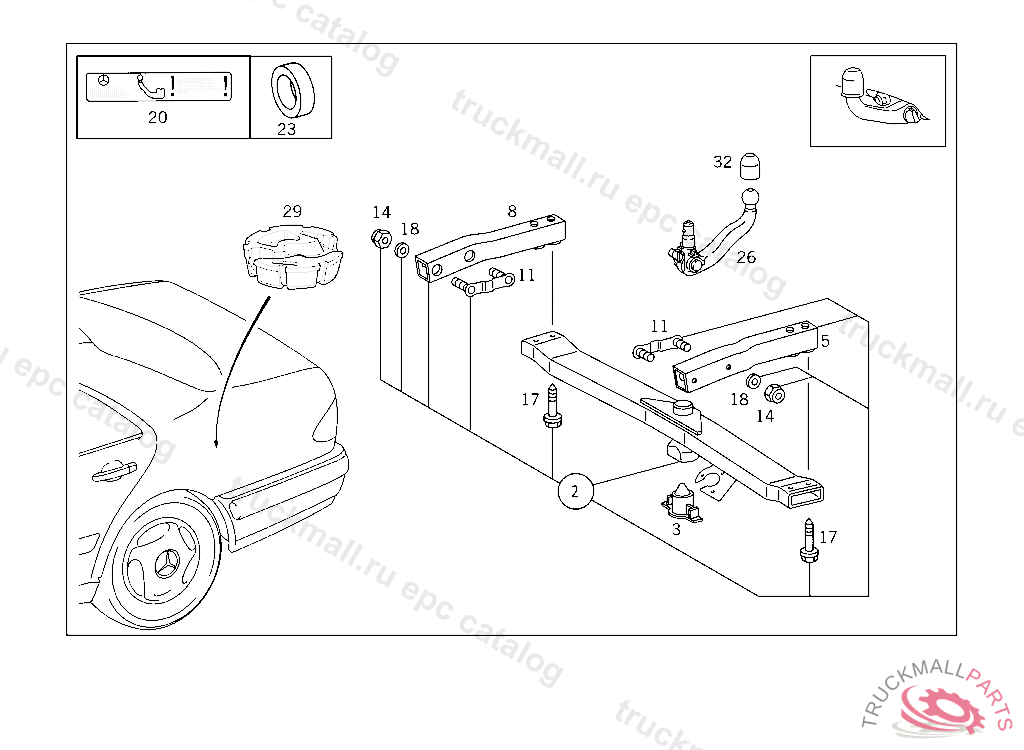

31 HITCHING MECHANISM - 015 TRAILER COUPLING IL. 1

Поз.
Артикул
Описание
2
A2103100295
HITCH MECHAN. DELY. RANGE FOR SUBSEQUENT INSTALLATION,USED FOR DETACHABLE BALL HEAD, TRAILED LOAD:, CONNECTOR PANEL,RIGID
2
A2103100395
HITCH MECHAN. DELY. RANGE
2
A2103100095
HITCH MECHAN. DELY. RANGE , Replaced By: A2103100295
5
A2103100491
STIFFENING LEFT
8
A2103100591
STIFFENING RIGHT
11
A2103100360
SHACKLE
14
N913004010004
NUT BRACKET TO SIDE MEMBER,XB209706
14
N910113010000
NUT STRAP TO BRACKET
17
A1409900014
SCREW
18
N007349010002
WASHER STRUT TO CONSOLE
18
N007349010003
WASHER , Replaced By: N007349010007
18
N007349010007
WASHER STRUT TO CROSS MEMBER
20
A2105841917
GUIDE SIGN TRAILER COUPLING
23
A1403150080
GASKET CROSS MEMBER TO SIDE MEMBERS
26
A2103100656
BALL HEAD TRAILER COUPLING, A 364221 F 341903
