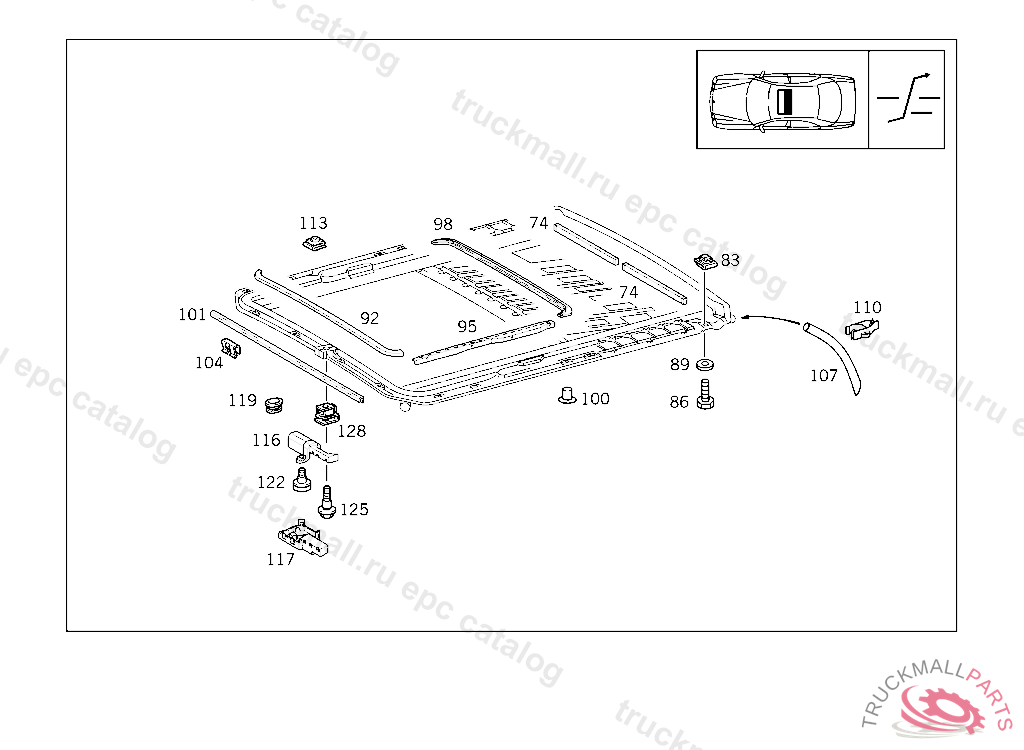

Поз.
Артикул
Описание
74
PAD BETWEEN ROOF PANELLING AND BOTTOM FRAME
74
PAD , TO BE ADAPTED DURING ASSEMBLY
83
NUT RETAINER ,123 415950
86
SCREW , Replaced By: N304017006016
86
SCREW PUMP TO BRACKET
89
WASHER COMPRESSED AIR LINE TO BRACKET
89
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
92
RAIL , Replaced By: A2207820324
92
RAIL FRONT
95
RAIL LEFT
95
RAIL RIGHT
98
RAIL REAR
100
RIVET
101
RAIL BOTTOM FRAME
104
CLIP COVER RAIL TO BOTTOM FRAME,FRONT
107
HOSE WATER DRAIN,FRONT 1100 MM, TO BE ADAPTED DURING ASSEMBLY
107
HOSE , Replaced By: A1247820796
110
CLAMP WATER DRAIN HOSE TO REAR PILLAR
113
NUT RETAINER , Replaced By: A3229900091
116
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF, A 519674 F 619721 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 519673, F 619720 WITH CODE 808
116
ELECTRIC MOTOR ELECTRIC SLIDING/LIFTING ROOF, A 394035 J 036478, EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
117
SWITCH AT MOTOR, A 394035 J 036478, EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 394036 WITH CODE 807
119
GROMMET BETWEEN MOUNTING PLATE AND ENGINE
122
SCREW MOTOR TO FRAME
125
SCREW FRONT EXHAUST LINE
128
NUT RETAINER MOTOR TO ROOF
