Mercedes A2106101210 - ЛОНЖЕРОН

E 240 210.062 FROM MODELLJAHR CODE 800

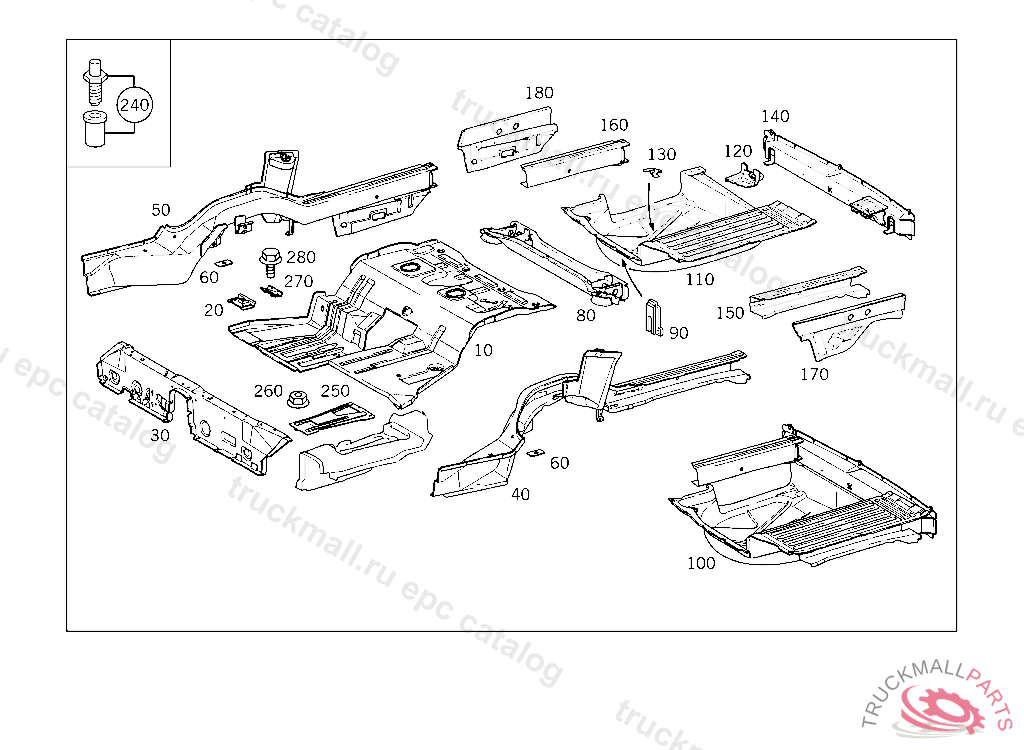

61 SUBSTRUCTURE - 045 REAR END FLOOR

Поз.
Артикул
Описание
10
A2106100761
FLOOR BELOW REAR SEAT BENCH
20
A2106100136
BRACKET BATTERY
30
A2106100920
CROSS MEMBER UNDERNEATH REAR SEAT, NO LONGER AVAILABLE
40
A2106101110
SIDE MEMBER REAR LEFT
50
A2106101210
SIDE MEMBER REAR RIGHT
60
A2016110011
PLATE REAR SUBFRAME FRONT MOUNTING
80
A2106100216
CROSS MEMBER ABOVE REAR AXLE
90
A2106181114
BRACKET ADE-MODULE ON SPARE WHEEL TROUGH AND CROSS MEMBER ABOVE REAR AXLE
100
A2106100661
FLOOR FROM FLOOR BELOW REAR SEAT TO REAR END CENTRAL PART,BOTTOM
110
A2106100275
SPARE WHEEL WELL
120
A2026180032
CLAMP TOWING BRACKET
130
A1246183331
CONSOLE
140
A2106100014
CROSS MEMBER REAR
150
A2106110921
TUBE REAR LEFT
160
A2106111021
TUBE REAR RIGHT
170
A2106110339
END PIECE REAR LEFT
180
A2106110439
END PIECE REAR RIGHT
240
A0009901210
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
250
A2106190416
REINFORCEMENT FLOOR BELOW REAR SEAT BENCH,CENTRAL
260
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
270
A2106190024
RAIL BATTERY TO BATTERY FRAME
280
N000000003853
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
