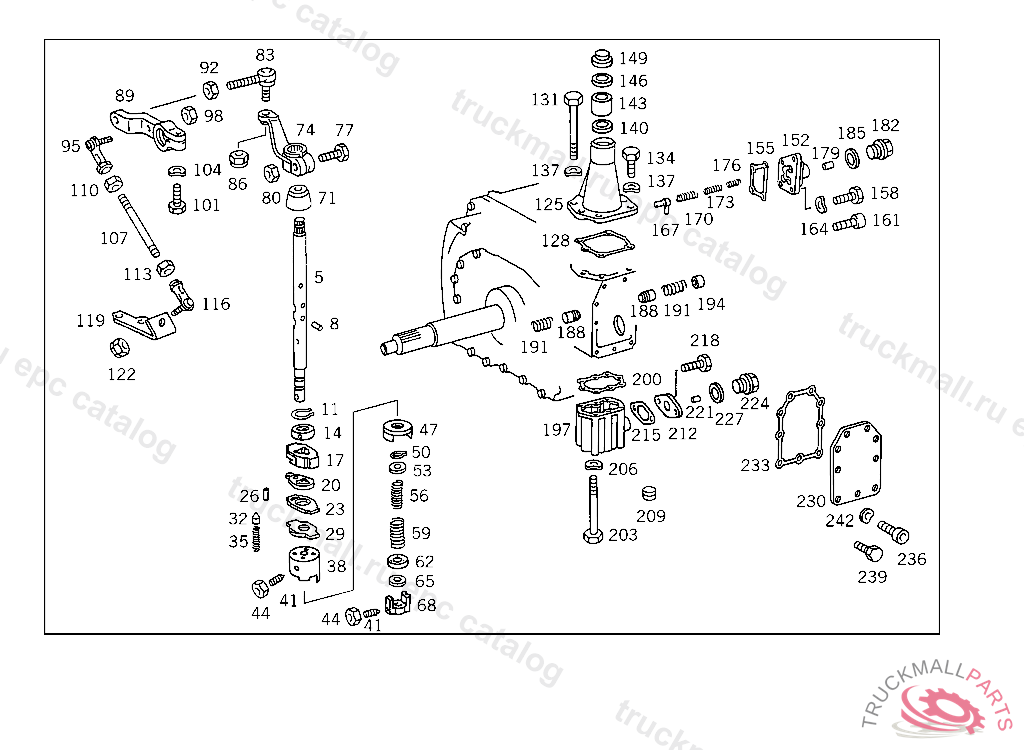

Поз.
Артикул
Описание
5
SHIFTING SHAFT
8
ROLLER SHIFTING SHAFT
11
LOCK RING SHIFTING SHAFT,001581
14
WASHER SHIFTING SHAFT
14
WASHER , Replaced By: A0002671176
17
SHIFTING SEGMENT , Replaced By: A0002672446
17
SHIFTING SEGMENT SHIFTING SHAFT
20
FOLLOWER SHIFTING SHAFT
20
FOLLOWER , Replaced By: A0002670043
23
SHIFTING SEGMENT SHIFTING SHAFT
26
DOWEL PIN SHIFTING SEGMENT
29
SHIFTING SEGMENT SHIFTING SHAFT
32
PIN SHIFTING SHAFT
35
SPRING REAR SHIFTING ROD
38
SHIFTING SEGMENT SHIFTING SHAFT
41
SCREW SHIFTING SEGMENT TO SHIFTING SHAFT
44
NUT CAB FLOOR
44
NUT , Replaced By: N308675012000
47
SPACER WASHER SHIFTING SHAFT
50
LOCK SHIFTING SHAFT
53
SPACER WASHER SHIFTING SHAFT
56
SPRING SHIFTING SHAFT
59
SPRING SHIFTING SHAFT
62
SPACER WASHER SHIFTING SHAFT
65
WASHER SHIFTING SHAFT
68
SLOTTED GATE SHIFTING SHAFT
71
COVER SHIFT LEVER TO TRANSMISSION
71
BOOT , Replaced By: A3362680257
74
SHIFT LEVER , Replaced By: A0002652031
74
LEVER (SHIFT LEVER)
77
SCREW ANGLE TO CROSS MEMBER M 10X30
83
JOINT FROM SHIFTING ROD TO CONNECTOR
86
HEXAGON NUT
86
NUT , Replaced By: N910113010002
89
CONNECTOR BRACING
92
NUT BRACKET TO SIDE MEMBER,K 035196
92
NUT , Replaced By: N308673014001
95
JOINT , Replaced By: A0002686189
95
JOINT TOP
95
BALL JOINT UPPER PULL ROD
98
NUT BRACKET TO TELESCOPIC TUBE,K 142858
101
SCREW , Replaced By: N308676014008
101
SCREW MOUNTING TO CONSOLE M 14X35
104
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
107
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
110
NUT PULL ROD
113
NUT STRAP TO SUPPORT,5 149419
116
JOINT BOTTOM
116
JOINT , Replaced By: A0002686289
119
BRACKET BRACING
122
NUT BRACKET TO TELESCOPIC TUBE,K 142858
125
CASE , Replaced By: A0002670820, +006N000137008204, +004N000931008049, +002N000931008244
125
CASE SHIFTING DOME
128
GASKET SHIFTING SHAFT
128
GASKET , Replaced By: A0002672480
131
SCREW VALVE TO BRACKET
134
SCREW , Replaced By: N304017008018
134
SCREW SUPPORT TO FENDER
137
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
137
SPRING WASHER , Replaced By: N000137008212
140
SEAL RING SHIFTING DOME,TOP
143
BUSHING SHIFTING DOME,TOP
146
SEAL RING SHIFTING SHAFT
149
BOOT SHIFTING SHAFT
152
COVER SHIFT CASE,SIDE
152
COVER , Replaced By: A0002672022, +004N000912008012
155
GASKET , Replaced By: A0002673080
155
GASKET SHIFT CASE,SIDE
158
SCREW BRACKET TO CROSS CONNECTION STRUT
158
SCREW , Replaced By: N304017008034
164
SPRING WASHER , Replaced By: N000137008212
164
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
167
INTERLOCK PIN SHIFT CASE,SIDE
167
INTERLOCK PIN , Replaced By: A0002670148
170
SPRING SHIFT CASE,SIDE
173
SPRING SHIFT CASE,SIDE
176
SPRING SHIFT CASE,SIDE
179
PIN SHIFT CASE,SIDE
182
SCREW PLUG
185
SEAL RING SWITCH TO CASE COVER
188
ROLLER , Replaced By: A0002670368
188
ROLLER SHIFTING SHAFT
191
SPRING SHIFT CASE,SIDE
194
BUSHING SHIFTING SHAFT
197
COVER , 717.214 009286 717.210-213,219 TO 620 260 45 03,620 260 47 00,620 260 48 00,620 260 49 00,620 260 78 00,620 260 45 00 717.220-223,229 TO 620 260 86 00,620 260 28 01, Replaced By: A0002671822, +001A0002670442, +001A0002672380, +001A0009915860, +002N914126008054
197
COVER , Replaced By: A0002672222, +002N000933008153
197
COVER SHIFT CASE,BOTTOM
200
GASKET SHIFT CASE,BOTTOM
200
GASKET , Replaced By: A0002672880
203
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
206
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
206
SPRING WASHER , Replaced By: N000137008212
209
THREADED BUSHING NEUTRAL POSITION
212
PLATE TRANSMISSION CASE BOTTOM COVER
215
GASKET VALVE TO TRANSMISSION
215
SEAL RING NEUTRAL POSITION
215
GASKET , Replaced By: A0002672380
218
SCREW , Replaced By: N914126008054
218
SCREW BRACKET TO CAB REAR PANEL M 8X20
218
SCREW , Replaced By: N910105008026
218
SCREW BRACKET TO SIDE MEMBER M8X20
221
DOWEL PIN SHIFT CASE,SIDE, 717.214,215,216,217 009287 717.210-213,219 ZU 620 260 41 03,620 260 42 03,620 260 44 03,620 260 45 03,620 260 46 03,620 260 48 03 717.220-223,229 TO 620 260 30 01
221
DOWEL PIN SHIFT CASE
221
DOWEL PIN , Replaced By: A0009916360
224
SCREW PLUG SHIFT CASE
227
SEAL RING AIR-PRESSURE-GAUGE CONNECTION
230
COVER , Replaced By: A0002672622, +009N000933008145
230
COVER SHIFT CASE,SIDE
233
GASKET , Replaced By: A0002672980
233
GASKET PLATE TO TRANSMISSION CASE
236
SCREW
239
SCREW CLAMP TO BRACKET AND TO PIPE
242
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
242
SPRING WASHER , Replaced By: N000137008212
