Поз.
Артикул
Описание

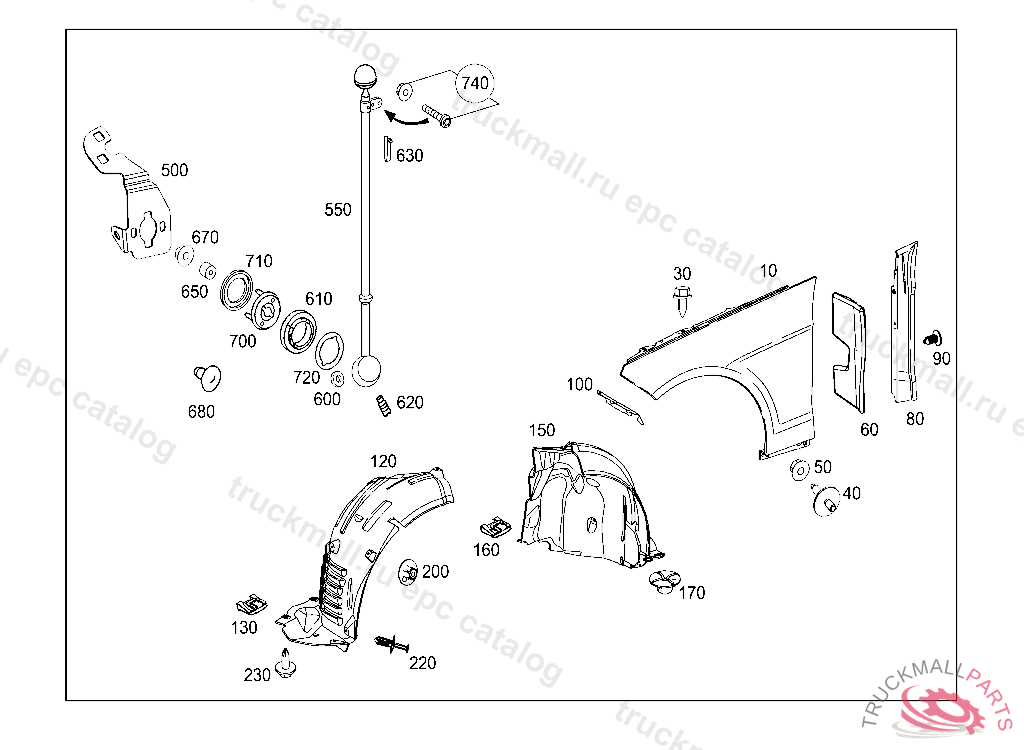

10
FRONT FENDER LEFT
10
FRONT FENDER RIGHT
30
BOLT ENGINE HOOD UPPER CATCH TO ENGINE HOOD M6X18, J 11373419981002
40
STUD FENDER AT A-PILLAR, BOTTOM, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019909614
50
NUT FENDER ON SIDE PANEL M6
80
COVER LEFT
80
COVER RIGHT
90
STOP PLUG BRAKE CABLE
100
INTERMEDIATE LAYER BETWEEN FENDER, RIGHT ANDBUMPER
100
INTERMEDIATE LAYER BETWEEN FENDER, LEFT ANDBUMPER
120
WHEEL HOUSE COVERING RIGHT FRONT FENDER
120
COVER RIGHT FRONT FENDER
120
WHEEL HOUSE COVERING LEFT FRONT FENDER
120
WHEEL HOUSE COVERING LEFT FRONT FENDER
130
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
150
WHEEL HOUSE COVERING RIGHT FRONT FENDER
150
COVER LEFT FRONT FENDER
160
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
170
PLASTIC NUT. NUT
200
PLASTIC NUT. NUT
220
RIVET COVERING TO SIDE MEMBER
230
TAPPING SCREW SPLASH GUARD TO FENDER 6.3X22
500
BRACKET RIGHT
500
BRACKET LEFT
550
ROD PENNANT, RIGHT
600
DISK SPRING ROD TO BRACKET LEFT
610
PAD
620
SCREW
630
SPRING
650
BUSHING BRACKET TO ROOF RAIL
670
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
680
COVER (LOCK BUTTON), RIGHT
700
FIXTURE RIGHT
700
FIXTURE LEFT
710
PAD INNER LEFT FENDER
720
PAD OUTER LEFT FENDER
740
FIXTURE FLAGPOLE
