Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

E 270 CDI 210.216 FROM MODELLJAHR CODE 800

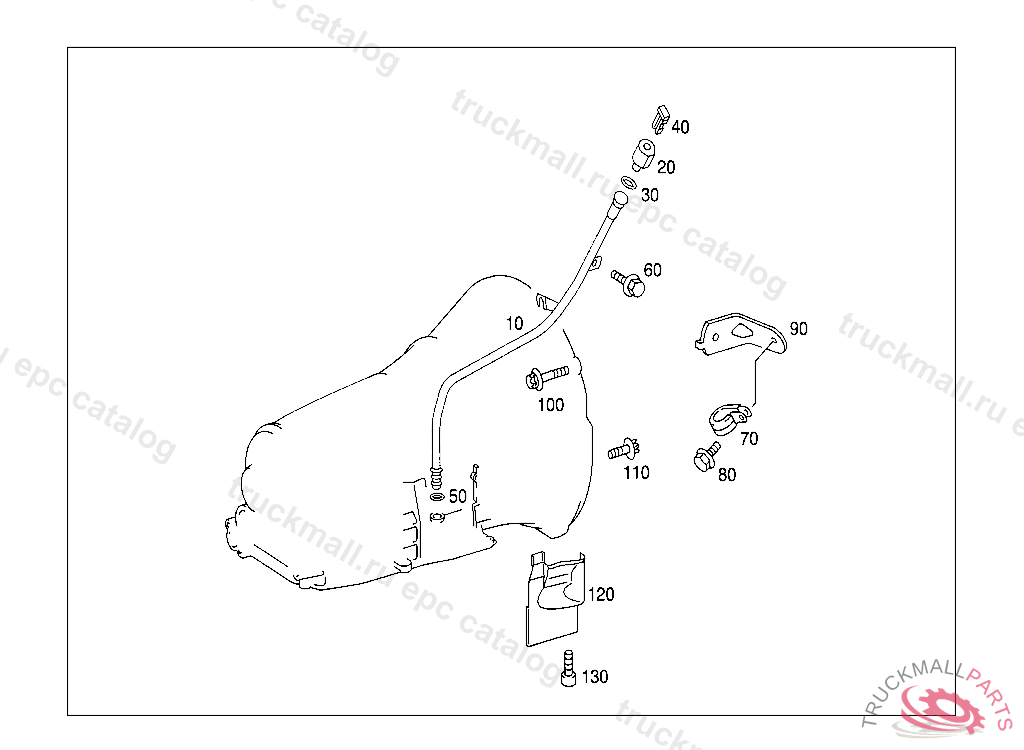

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 240 DETACHABLE TRANSMISSION COMPONENTS,OIL FILLER PIPE,E-CLASS

Поз.
Артикул
Описание
10
A2022700984
OIL FILLER PIPE
20
A1402700091
COVER OIL FILLER PIPE
30
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
40
A1409910055
DOWEL PIN OIL FILLER PIPE
50
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
60
N910106006004
HEXAGON HEAD BOLT
70
A0009959342
MOUNTING CLAMP OIL FILLER TO ENGINE
70
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
100
N910143010000
SCREW PLATE TO FRAME M 10X45
110
A1249902201
SCREWM 8X18
120
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
130
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
