Mercedes N304032005005 - Гайка M 5

E 280 210.263 FROM MODELLJAHR CODE 800

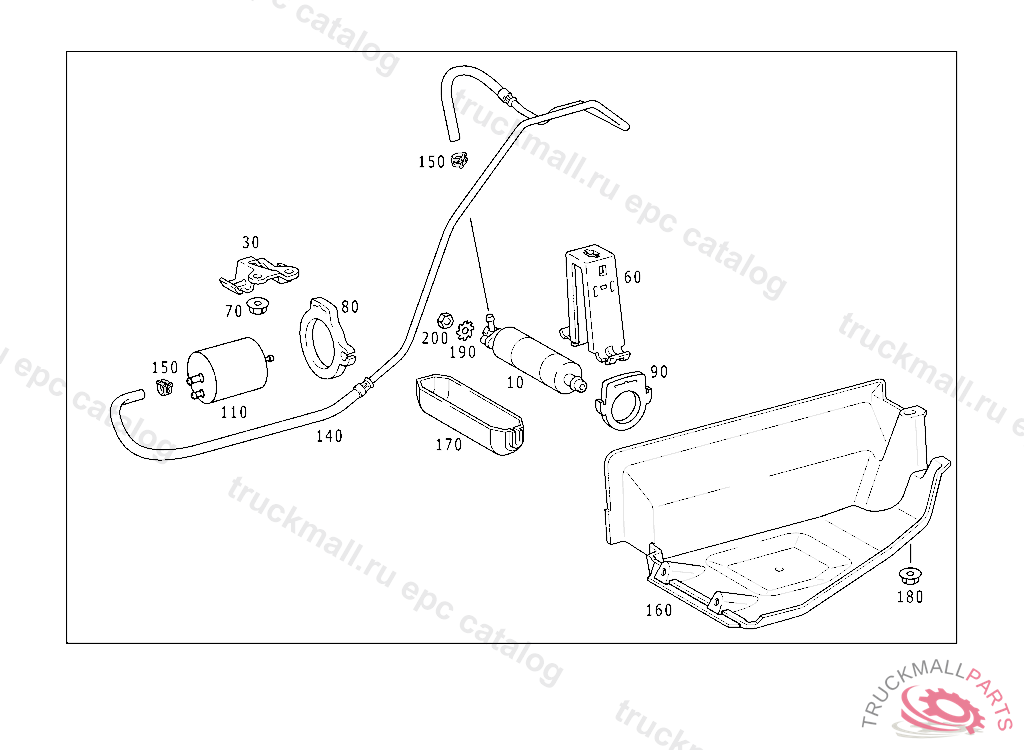

47 FUEL SYSTEM - 030 FUEL PUMP PACKAGE

Поз.
Артикул
Описание
10
A0004707894
FUEL PUMP ,F 110985
30
A2104780640
BRACKET
60
A2104780840
BRACKET
70
A0039900251
NUT COVERING TO CAB FIRE WALL
80
A2104780182
RUBBER RING
90
A2104780082
RUBBER RING FUEL PUMP
110
A0024773001
FUEL FILTER FUEL FILTER TO TANK
140
A2104702964
LINE FROM FUEL PUMP TO FILTER, B 21137320000803 X 04733520000908
140
A2104703864
LINE FROM FUEL PUMP TO FILTER, B 21137420000803 X 04733620000908
150
A0069971890
HOSE CLAMP HOSE ATTACHMENT
160
A2104780237
PROTECTIVE COVER FUEL PUMP
170
A2104780137
PROTECTIVE COVER FUEL PUMP
180
A0039900251
NUT COVERING TO CAB FIRE WALL
190
N006797005131
TOOTHED WASHER
190
N000000004450
TOOTHED WASHER ELECTRIC CABLE TO FUEL PUMP
200
N304032004002
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
200
N304032005005
NUT IN CASE OF SUBSEQUENT INSTALLATION
