Mercedes
›
TRANSMISSION
›
D 864.3 E
›
721.480
›

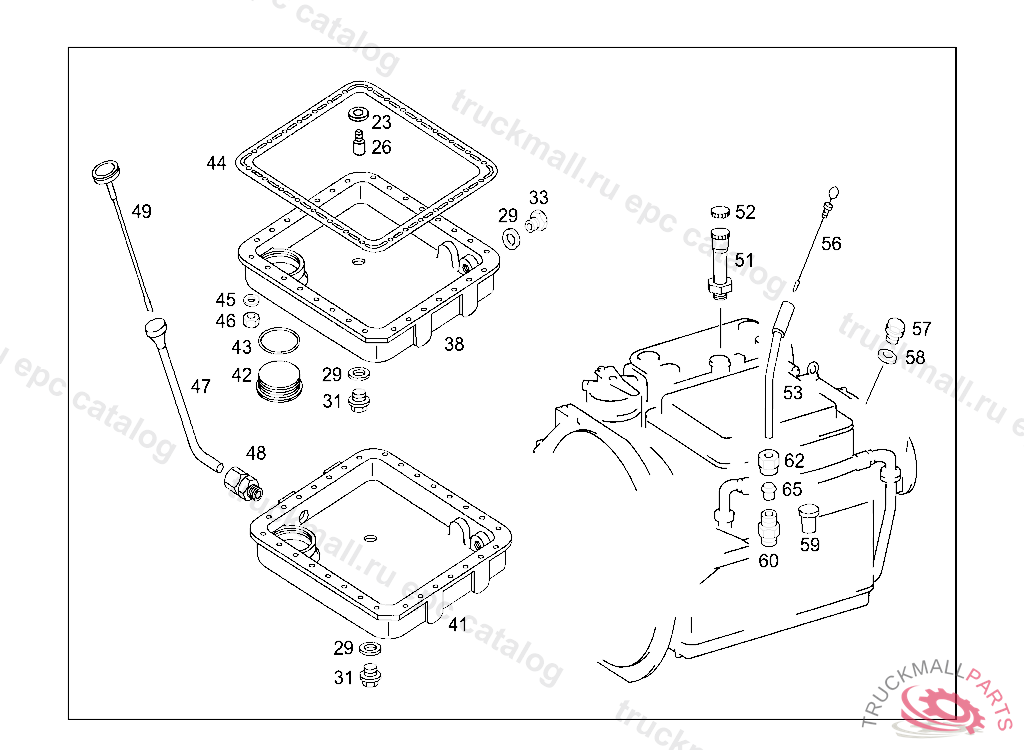

27 VOITH-DIWA AUTOMATIC TRANSMISSION
›
650 OIL PAN,OIL COOLER IL. 2
Mercedes A0002772995 - SIEBFILTER
D 864.3 E 721.480
27 VOITH-DIWA AUTOMATIC TRANSMISSION - 650 OIL PAN,OIL COOLER IL. 2
Поз.
Артикул
Описание
23
N007603014106
SEAL RINGTO 000 553 03 05,000 553 18 05,
26
A0009974632
SCREW PLUG OIL DRAIN,CONVERTER
29
N007603026109
SEAL RING OIL DRAIN 26X34 MM
31
A0009978832
SCREW PLUG OIL DRAIN
38
A0002712112
OIL PAN
42
A0002712305
COVER OIL PAN,BOTTOM
43
A0002715880
GASKET COVER TO OIL PAN
44
A0002713180
GASKET OIL PAN TO TRANSMISSION
45
N000125008445
WASHER PUMP TO CONSOLE
45
N000125008418
WASHER , Replaced By: N000125008443
46
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
51
A0002714996
PIPE OIL FILLING
52
A0002710108
COVER OIL FILLER PIPE
53
A0002712096
PIPE FOR OIL DIP-STICK
56
A0002711683
OIL DIPSTICK
57
A0009978932
SCREW PLUG TRANSMISSION CASE,TOP
58
A0259974547
SEAL RING TRANSMISSION CASE,TOP
59
A0002772995
OIL FILTER TRANSMISSION CASE,TOP
