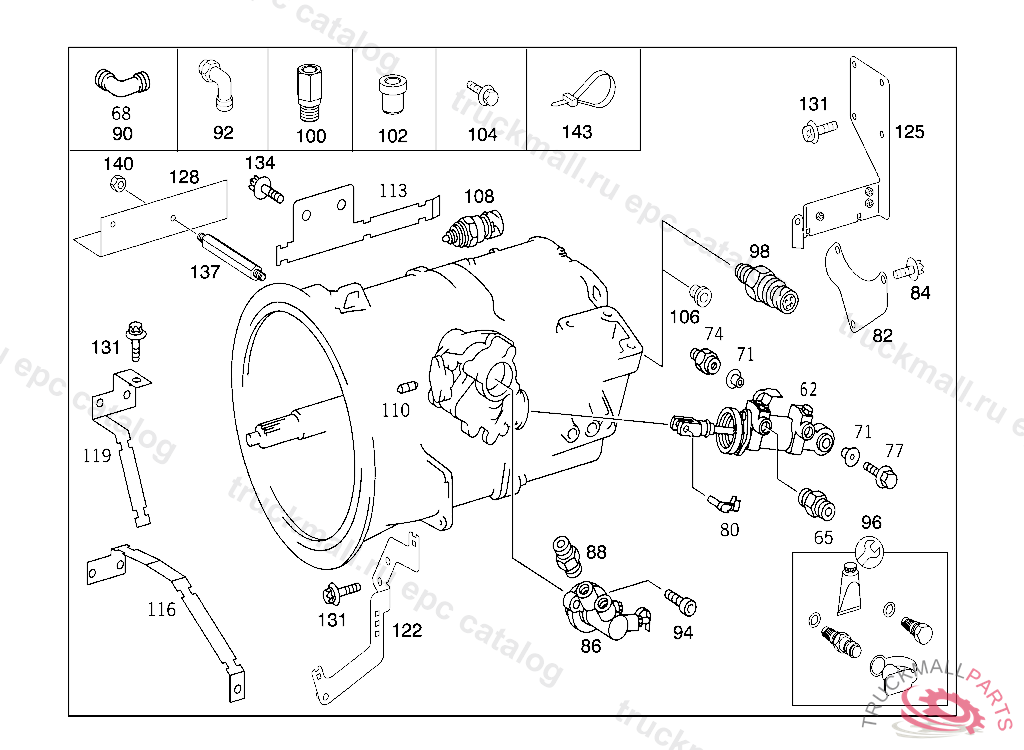

Поз.
Артикул
Описание
62
SHIFTING CYLINDER (GEAR CYLINDER)
65
FITTING DELIVERY LINE TO PUMP
68
FITTING GATE CYLINDER
71
BUSHING GEAR CYLINDER
74
PIN LEVER
77
SCREW PLATE TO FRAME M 10X45
77
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
80
PIN GEAR CYLINDER
82
COVER GEAR CYLINDER
84
SCREW BRACKET MOUNTING M6X10
86
SHIFTING CYLINDER (GATE CYLINDER)
88
FITTING DELIVERY LINE TO PUMP
90
FITTING GATE CYLINDER
92
ELBOW FITTING DELIVERY LINE TO PUMP
94
CAP BOLT GATE CYLINDER M8 X 65
94
SCREW. CAP BOLT SEAT MOUNTING M8X35
94
HEXALOBULAR BOLT INTERMEDIATE FLANGE AT CYLINDER M8X35
96
REPAIR KIT (BREATHER SCREW)
98
SENDER UNIT DECREASE IN NUMBER OF REVOLUTIONS B61.1
98
PULSE GENERATOR ACTUATION OF ELECTRONIC SPEEDOMETER 63,2MM
98
PULSE GENERATOR ACTUATION OF ELECTRONIC SPEEDOMETER 25MM
98
SENDER UNIT , Replaced By: A0145428017
98
SENDER UNIT , Replaced By: A0155422417
98
SENDER UNIT , Replaced By: A0155423717
98
SENDER UNIT , Replaced By: A0155423917
98
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 25MM, Replaced By: A0155427617
98
SENDER UNIT , Replaced By: A0165421717
98
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 62MM
98
SENDER UNIT , Replaced By: A0125425617
98
SENDER UNIT ELECTROPNEUMATIC POWER SHIFT 62 MM
98
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 25 MM
98
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 25MM
98
SENDER UNIT ELECTROPNEUMATIC POWER SHIFT 25 MM
98
SENDER UNIT ACTUATION OF ELECTRONIC SPEEDOMETER 35MM
98
SENDER UNIT SPEEDOMETER
100
BULKHEAD FITTING RETARDER
102
BUSHING
104
SCREW SPEED SENSOR TO REAR AXLE
104
SCREW , Replaced By: N910143008000
106
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
106
SCREW PLUG BELL HOUSING TO 620 251 07 01,620 251 16 01, 426,427,428,521,522 5 095724 532 5 104253
108
SWITCH SPLITTER BOX
108
SWITCH BACK-UP LIGHT M20X1.5
108
TAPPET SWITCH ADDITIONAL GEARBOX M20X1.5
108
SWITCH , Replaced By: A0015454709
108
SWITCH ADDITIONAL GEARBOX, Replaced By: A0015457409
110
PIN NEUTRAL POSITION SWITCH 35.2 MM
113
BRACKET TRANSMISSION CASE,FRONT, SIMPLE PART-PLEASE HAVE SHOP MADE
116
BRACKET TRANSMISSION CASE,FRONT
119
BRACKET TRANSMISSION CASE,FRONT
122
BRACKET BATTERY CABLE TO TRANSMISSION
125
BRACKET , Replaced By: A9702604962
125
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9702605962
125
BRACKET TRANSMISSION CASE,FRONT
128
BRACKET TRANSMISSION CASE,FRONT, SIMPLE PART-PLEASE HAVE SHOP MADE
128
BRACKET TRANSMISSION CASE,FRONT
131
HEXALOBULAR BOLTM8X20
131
HEXALOBULAR BOLT. SCREW
131
SCREW , Replaced By: N000000001139
131
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
134
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
134
SCREWM 10X20
137
THREADED PIN TRANSMISSION CASE,FRONT
140
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
143
LOOM TIE LINE MOUNTING 280 MM
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, 4 MM
999
COUPLING. ELBOW FITTING P.T.O., IN CONJUNCTION WITH CODE: 9N2N
999
SENDER UNIT TEMPERATURE SENDER UNIT B47
999
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 10, SDF
999
PIN ADDITIONAL GEAR GROUP INDICATOR ACTUATION,207374
999
THREADED BUSHING PRESSURE SWITCH, TO BE ADAPTED DURING ASSEMBLY
999
LINE , Replaced By: A0009872627, +002A0049905171
999
LINE , Replaced By: A0009872627, +002A0049971389
999
VALVE 3/2-WAY,P.T.O. CONTROL, FOR COMPONENT PARTS SEE SPARE PARTS LIST
999
SUPPORT 3/2-WAY VALVE
999
VALVE DOUBLE 3/2-WAY
999
FITTED WASHER STARTING LOCK 0.50 MM
999
SEAL RING LOCKING VALVE 20X24
999
HEXAGON HEAD BOLT SHIFTING CYLINDER M5X55
999
SCREW 3/2-WAY VALVE TO BRACKET
