Mercedes A0009905400 - Болт

E 250 CDI 212.203

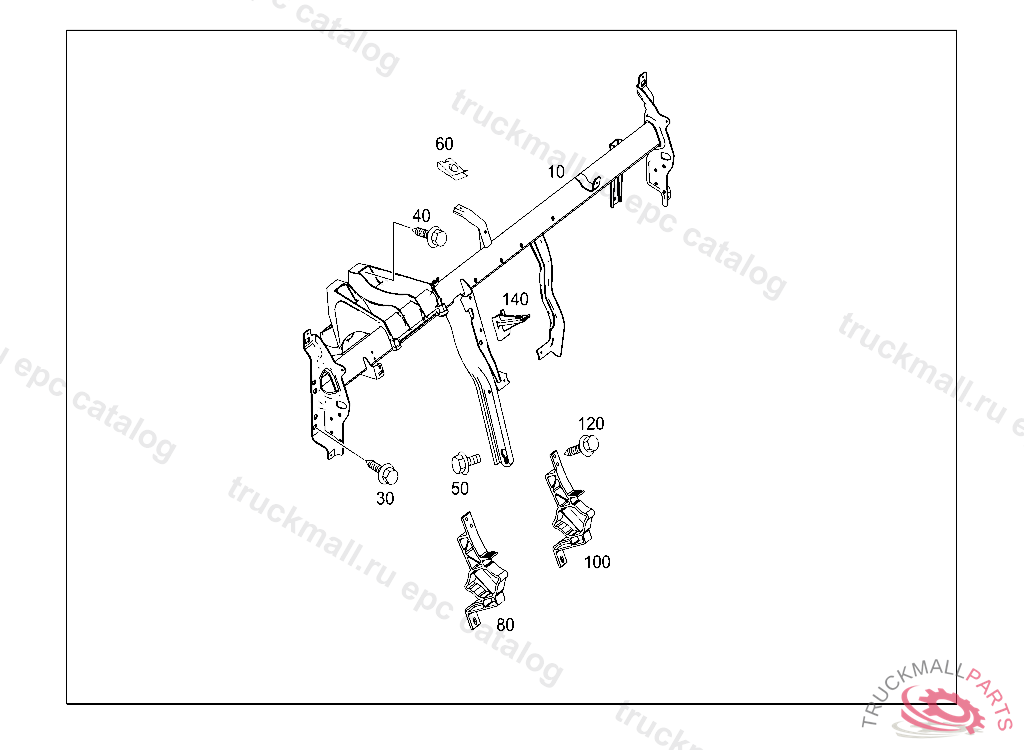

62 FRONT END, FRONT WALL - 120 CROSS MEMBER BELOW INSTRUMENT PANEL

Поз.
Артикул
Описание
10
A2186800301
CROSS MEMBER
10
A2186800201
CROSS MEMBER
10
A2126800155
CROSS MEMBER , A 04311420090529 L 00012120090531 V 00006720090531
10
A2126800255
CROSS MEMBER , A 04311420090529 L 00012120090531 V 00006720090531
30
A0009905400
BOLT ON SIDE MEMBER FRONT BOTTOM M8X22.5
40
N000000001139
HEXALOBULAR BOLT BRACKET TO TRANSMISSION CASE M8X20
50
A0129907901
BOLT CROSS MEMBER TO TUNNEL M10X16
50
A0209900001
BOLT W FLANGE CROSS MEMBER TO TUNNEL M10X21
60
A0009942545
LOCK. CLIP FASTENER HOUSING UPPER PART TO LOWER PART
80
A2076280724
STRUT DRIVER-SIDE, OUTER, A 30499920090616 L 03314520090531 V 00128520090531 F 35983520090601 R 08651820090528
100
A2046280824
STRUT DRIVER-SIDE, INNER
100
A2046280524
STRUT DRIVER-SIDE, INNER
120
A1409900636
SCREW
140
A2126890114
BRACKET AT CROSS MEMBER
