Mercedes N000933010145 - SCHRAUBE DIN 933-M10

4 S-150 GP+WSK 400 717.346

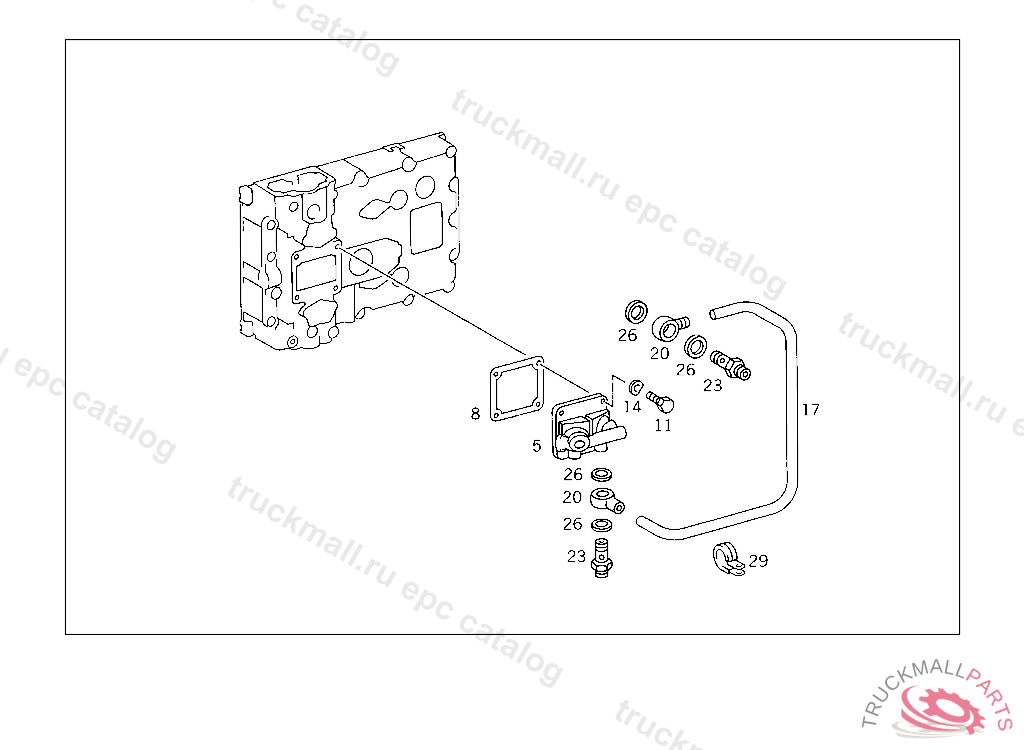

26 TRANSMISSION - 400 SHIFT VALVES,SWITCHES,COMPRESSED AIR LINES

Поз.
Артикул
Описание
5
A0012600257
VALVE (CONTROL VALVE),GROUP SHIFT, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
A0002686480
GASKET 3/2-WAY VALVE
8
A0002682580
GASKET , Replaced By: A0002686480
11
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
14
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
17
A0009979052
HOSE FROM 3/2-WAY VALVE TO SHIFTING CYLINDER, ORDER BY THE METER
20
A0009908988
BANJO UNION
23
N915039008202
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
23
N000000004749
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
23
N915036008100
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
26
N007603012405
SEAL RING LINE CONNECTION
26
N007603012111
SEAL RING LINE CONNECTION
29
A0019952101
CLAMP HOSE TO TRANSMISSION CASE
