Главная
›
Mercedes
›
TRANSMISSION
›
4 S-150 GP+WSK 400+ N 70/1 C
›
717.389
›
26 TRANSMISSION
›

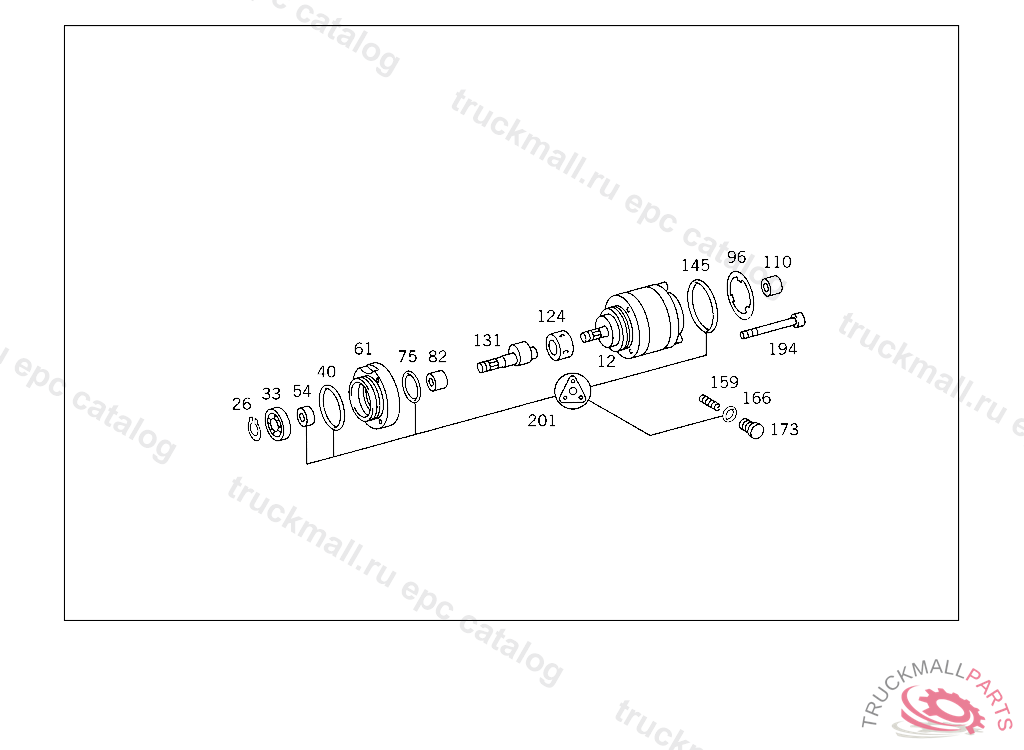

001 ATTACHMENT OF SECONDARY PUMP IL.1
Mercedes N000471020001 - ПРЕДОХРАНИТЕЛЬ
4 S-150 GP+WSK 400+ N 70/1 C 717.389
26 TRANSMISSION - 001 ATTACHMENT OF SECONDARY PUMP IL.1
Поз.
Артикул
Описание
12
A0014664101
HYDRAULIC PUMP
12
A0014661701
HYDRAULIC PUMP , Replaced By: A0014664101, +004N000912008166
26
N000471020001
LOCK RING
33
N000625900200
GROOVED BALL BEARING
40
A0239979748
SEAL RING P.T.O.
40
A0139970948
SEAL RING , Replaced By: A0239979748
54
A0119972147
SEAL RING
61
A0004665405
COVER
75
A0119978948
SEAL RING
82
A0049819510
NEEDLE BEARING
96
A0004660093
SPRING
110
A0004660950
BUSHING
124
A0004660750
BUSHING
131
A0004662520
DRIVE SHAFT
145
A0119979048
SEAL RING
159
A0059934001
SPRING
166
A0069978648
SEAL RING
173
A0004660871
SCREW
194
N000912010164
SCREWTO 001 466 16 01
194
N000912010183
SCREW
201
A0004603561
GASKET KIT HYDRAULIC PUMP
999
A0002647345
COUPLING FLANGE (OUTPUT FLANGE)
999
A0004660151
SPACER RING
999
A0004661852
SPACER WASHER
999
A0004661875
WASHER
999
A0004662583
PISTON
999
A6992600810
P.T.O. EMERGENCY STEERING PUMP
999
A6992601010
P.T.O. EMERGENCY STEERING PUMP
999
A6994660101
HYDRAULIC PUMP , Replaced By: A0014664101
999
A6999900020
SCREW , Replaced By: N000912008166
999
N005402007200
ROLLER FRONT DRIVE SHAFT
