Поз.
Артикул
Описание

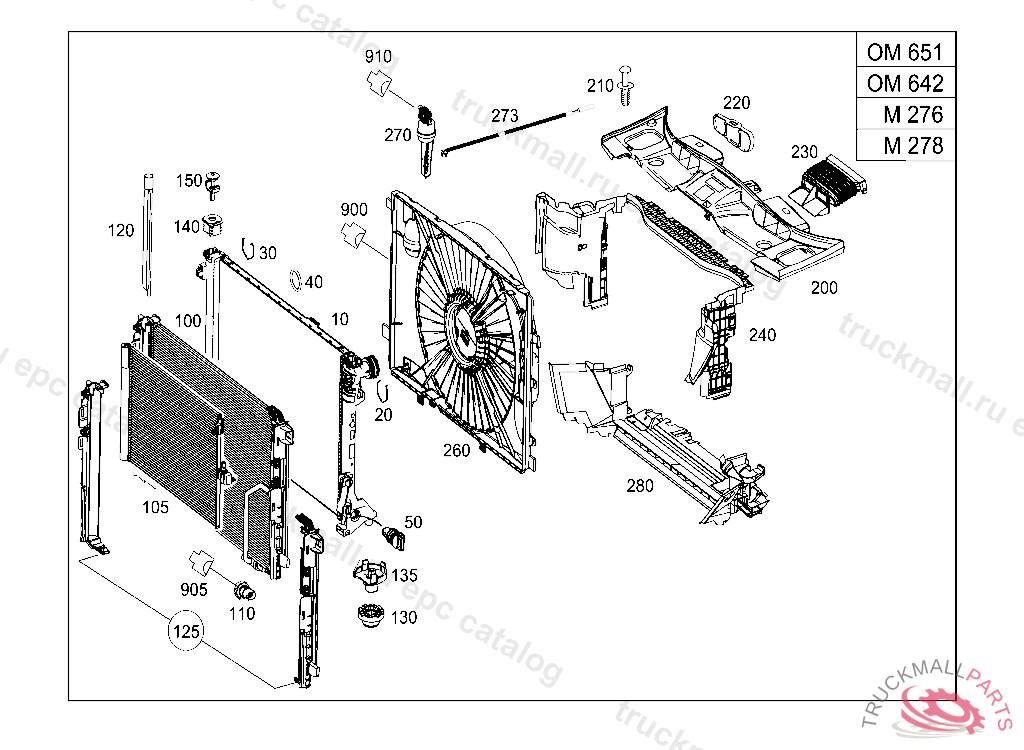

10
WATER COOLER
20
DETENT SPRING COOLANT HOSE, LEFT, TO RADIATOR SCB3646.4MM
30
DETENT SPRING FILLING HOSE TO RADIATOR SCB1727MM
40
O-RING TRANSMISSION OIL LINE TO OIL COOLER 9.25X1.78
100
CAPACITOR
110
PRESSURE SENSOR
120
REFRIGERANT DRIER F AC
125
MOUNTING FRAME CONDENSER
130
ELASTOMER BEARING RADIATOR BOTTOM
135
RADIATOR BEARING REPAIR SOLUTION, COOLER, BOTTOM LEFT AND RIGHT
140
BEARING TOP LEFT AND RIGHT, J 06236120041209
150
CLIP RADIATOR TOP
200
COLD AIR INDUCTION
210
EXPANSION RIVET MOUNTING, COVER
240
AIR DUCT TOP
240
AIR DUCT TOP
260
BLOWER850 W
270
VACUUM BOX
273
HOSE ASSEMBLY FROM VACUUM BOX TO INTAKE MANIFOLD
280
SEALING LIP BOTTOM
280
AIR DUCT BOTTOM
900
PIN BUSHING HOUSING ENGINE CABLE HARNESS PLUG-CONNECTION 4-PIN SLK2.8, LSK8,X26/29
905
CLUTCH. PIN BUSHING HOUSING SIREN
910
CLUTCH HOUSING ENGINE MOUNTING,RIGHT 2-PIN MLK1.2,Y123/1
