Поз.
Артикул
Описание

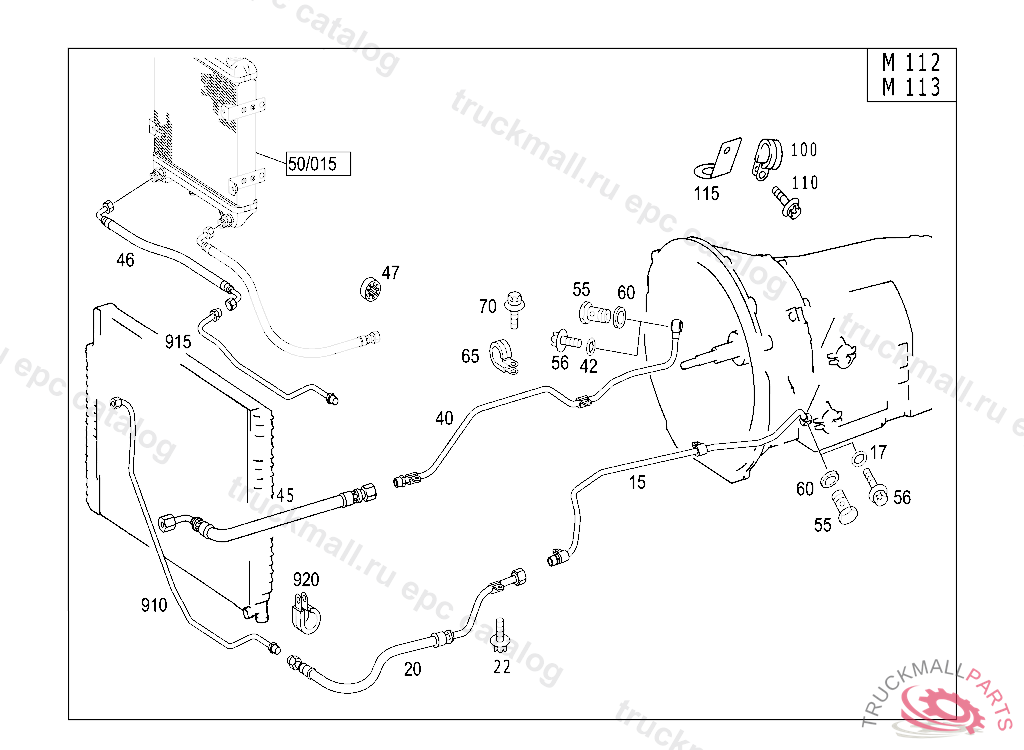

15
LINE FROM TRANSMISSION TO OIL COOLER,LEFT
20
HOSE PARTITION POINT TO OIL COOLER, LEFT
22
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
40
LINE FROM TRANSMISSION TO OIL COOLER,RIGHT
45
PRESSURE HOSE PARTITION POINT TO OIL COOLER, RIGHT, A 00879420000630
55
BANJO BOLT OIL LINE TO TRANSMISSION CASE
60
SEAL RING OIL LINE TO TRANSMISSION 14X18
60
SEAL RING
60
SEAL RING INJECTION PUMP
60
SEAL RING OIL LINE TO TRANSMISSION 14X18, Replaced By: A0002711160
65
CLAMP CABLE HARNESS MOUNTING
70
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
70
SCREW STARTING CABLE TO ENGINE
100
CLAMP OIL LINE TO CONVERTER HOUSING, Replaced By: N000000001045
100
CLAMP CABLE HARNESS MOUNTING
110
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
115
BRACKET OIL LINE ATTACHMENT
910
LINE OIL COOLER,TOP, A 33789620021113MA 323239
910
LINE
920
CLAMP CABLE HARNESS MOUNTING
