Поз.
Артикул
Описание
5

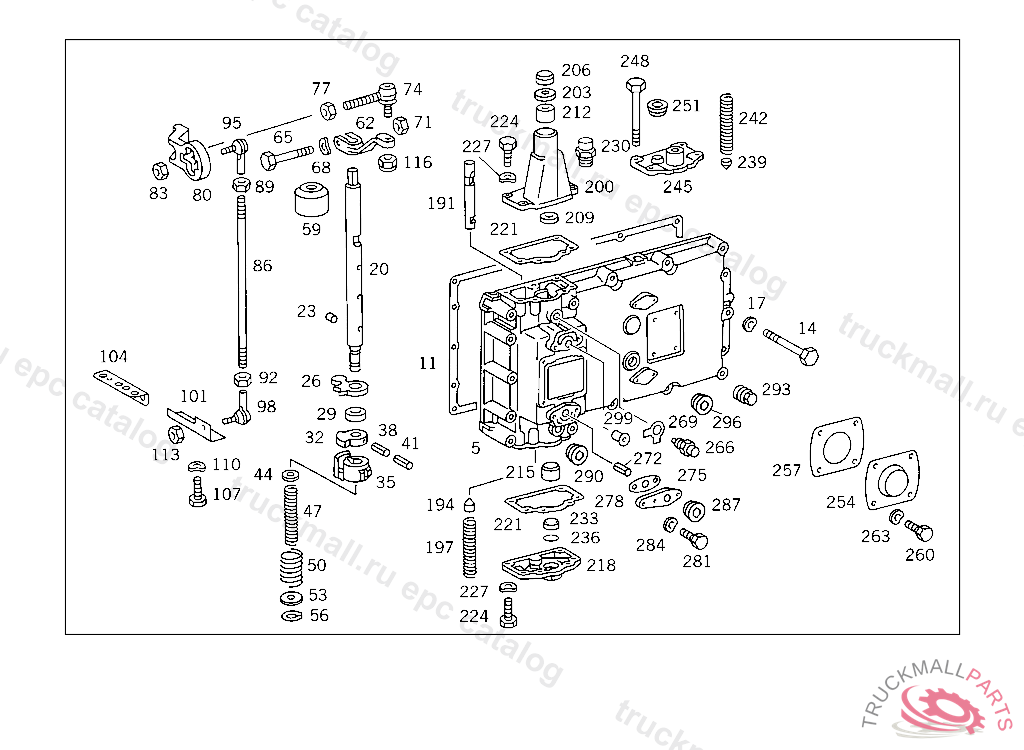

TRANSMISSION CASE COVER GEARSHIFT MECHANISM
11
GASKET LATERAL, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
11
GASKET , Replaced By: A3432650679
11
GASKET , Replaced By: A0002650280
14
SCREW , Replaced By: N304017010050
14
SCREW , Replaced By: N304014010004
14
SCREW MOUNTING AND RAIL TO LEAF SPRING
14
SCREW , Replaced By: N304017010055
14
SCREW STRAP TO BRACKET
14
SCREW CLUTCH TO FLYWHEEL
14
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
17
SPRING WASHER STEERING COLUMN BRACKET TO CAB
20
SHAFT (SHIFTING SHAFT), 044937,S 6-90 137432, AK 6-90
20
SHAFT , 018172,S 6-90 068147, AK 6-90, Replaced By: A0002681432, +001A0002684130, +001A3362680257, +001A0039940141, +001N000137010201, +001N000931010306, +001N000934010009
20
SHAFT ,049276,S 6-80279574,AK 6-80049276-070290,S 6-80279574-304633,AK 6-80, Replaced By: A0002681432, +001A0002684130, +001A3362680257, +001N000137010201, +001N000931010309, +001N000934010009
26
FOLLOWER TOP
29
SPACER RING SHIFTING SHAFT,BOTTOM
32
FOLLOWER SHIFTING SHAFT
32
FOLLOWER REVERSE SPEED
35
SHIFTING SEGMENT SHIFTING SHAFT
35
SHIFTING SEGMENT , Replaced By: A0002680446
35
SHIFTING SEGMENT , Replaced By: A0002680246
38
CLAMPING SLEEVE FOLLOWER TO SHIFTING SHAFT
41
CLAMPING SLEEVE FOLLOWER TO SHIFTING SHAFT
50
SPRING SHIFTING SHAFT
53
SPACER WASHER SHIFTING SHAFT
56
LOCK RING
56
LOCK SHIFTING SHAFT
56
LOCK , Replaced By: A0039940141
59
COVER SHIFT LEVER TO TRANSMISSION
62
SHIFT LEVER , Replaced By: A0002682730
62
SHIFT LEVER , Replaced By: A0002684130
62
SHIFT LEVER
65
SCREW SHIFTING ROD TO JOINT
68
SPRING WASHER STEERING COLUMN BRACKET TO CAB
71
NUT
71
NUT , Replaced By: N304032010002
74
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0002684889
74
JOINT SHIFTING SHAFT,TOP
77
NUT , Replaced By: N308673014001
77
NUT BRACKET TO SIDE MEMBER,K 035196
80
CONNECTOR SHIFTING TUBE TO SHIFT LEVER
80
CONNECTOR , Replaced By: A0002680428
83
NUT , Replaced By: N913004016005
86
SHIFTING ROD , Replaced By: N900331012339
86
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLY
89
NUT PULL ROD
92
NUT STRAP TO SUPPORT,5 149419
95
JOINT TOP
95
JOINT , Replaced By: A0002686189
95
JOINT , Replaced By: A0002684789
98
JOINT , Replaced By: A0002686289
98
JOINT , Replaced By: A0002684689
98
JOINT BOTTOM
104
BRACKET BRACING,003528,5 S 90 GPA001871,5 K 90 GPA
113
NUT , Replaced By: N913004016005
116
HEXAGON NUT
116
NUT , Replaced By: A0002680472
116
NUT , Replaced By: N913004010010
116
NUT , Replaced By: N910113010002
191
SHAFT SHIFT CASE
194
PIN SHIFT CASE,BOTTOM
194
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002683974
197
SPRING SHIFT CASE
203
SEAL RING SHIFTING SHAFT
206
BOOT SHIFTING SHAFT
212
BUSHING SHIFTING DOME,TOP
212
NEEDLE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002682150
215
NEEDLE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002682150
215
NEEDLE BEARING REAR DRIVE SHAFT
218
COVER SHIFT CASE,BOTTOM
218
COVER SHIFT CASE,BOTTOM
221
GASKET SHIFT CASE,TOP AND BOTTOM
221
GASKET , Replaced By: A0002685180
224
SCREW , Replaced By: N000933008337
224
SCREW , Replaced By: N304017008018
224
SCREW , Replaced By: A0099900101
224
SCREW SUPPORT TO FENDER
224
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
227
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
227
SPRING WASHER , Replaced By: N000137008212
230
BREATHER , Replaced By: A3362640089
230
VALVE BREATHER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
230
VALVE BREATHER
233
COVER SHIFT CASE,BOTTOM
236
SPACER WASHER SHIFT CASE
239
PIN SHIFTING SHAFT
239
PIN , Replaced By: A0002670474
242
SPRING SHIFTING DOME
245
BEARING COVER SHIFTING DOME
245
BEARING COVER , Replaced By: A0002680634, +001N000906010000
245
BEARING COVER , Replaced By: A0002680034
248
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
248
SCREW , Replaced By: N304017008043
248
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
248
SCREW VALVE TO BRACKET M 8X55
251
SCREW PLUG STABILIZER
266
DETENT , Replaced By: A0002601873
266
STOP , Replaced By: A0002600273
266
DETENT TRANSMISSION CASE
269
LOCK PLATE SHIFT CASE
272
PIN
278
GASKET VALVE TO TRANSMISSION
278
GASKET , Replaced By: A0002685080
290
SCREW PLUG
296
PLUG , Replaced By: A0009973435
296
PLUG , Replaced By: A0009977535
296
PLUG , Replaced By: A3529970032
296
COVER , Replaced By: A0009977535
296
SCREW PLUG BELL HOUSING
299
EXPANSION PLUG HOUSING,BOTTOM
299
COVER , Replaced By: A0009971120
